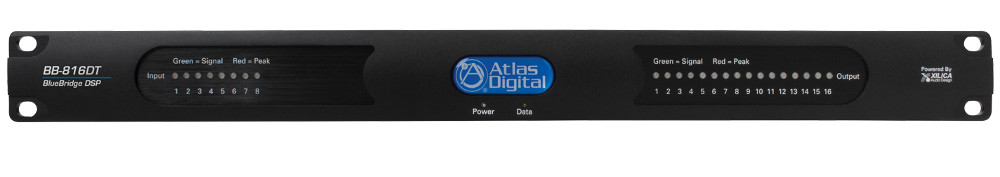

Atlas Sound BB-816DT
8 Input x16 Output DSP Audio Processor Dante

OUR PART #:  BB-816DT

The Atlas Sound BB-816DT is an 8 iput x16 output DSP audio processor for a variety of audio installation applications.
Learn More
Our Price: $3,490.99
List Price: $4,363.99
You save 20%!
Write the first review.
Atlas Sound BB-816DT
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Atlas Sound BB-816DT is an 8 iput x16 output DSP audio processor for a variety of audio installation applications.

Atlas Sound BlueBridge DSP audio processors are powerful and flexible tools offering mission critical solutions to satisfy the exact needs of any installation. Engineered to strict standards with the highest quality internal components, BlueBridge devices provide pure clean audio, Ethernet connectivity for cost effective TCP/IP control and easy programmability. Intended for a variety of audio applications, BlueBridge DSP platforms are cost effective solutions for the most demanding applications including video conferencing, house of worship, presentation rooms, conference rooms, courtrooms, room combining, restaurants, multi-zone paging, background music, and many other sound reinforcement and AV applications.

The BlueBridge family of products feature open architecture, drag and drop software that makes them incredibly easy to use. Each model utilizes high quality THAT microphone preamps and 24 Bit converters to obtain an ultra-low noise floor while still maintaining a smooth sound that satisfies the needs of demanding clients, with the flexibility and control a system designer requires. BlueBridge models use a 40 Bit Floating Point DSP engine to prevent digital clipping that commonly occurs in other DSP products and to obtain maximum speed and power to process advanced algorithms in complex system designs. BlueBridge DSP units can operate on any network while the optional control accessories require a PoE Network. When connected to a network, each BlueBridge processor on the network will be auto recognized and controllable. BlueBridge models provide many valuable processing tools including standard mixers, gain sharing auto-mixers, delays, equalizers, level controls, duckers, filters, and dozens of other processing capabilities.

Atlas Sound BB-816DT Features:

  • 8 Input / 16 Output Configuration
  • Open Architecture Programmability
  • High Quality THAT Corp Microphone Preamps
  • Ethernet Network Connectivity
  • TCP/IP Third Party Control Capability
  • Ultra Low Noise Floor
  • Four Logic Inputs/Outputs
  • 48kHz, 40 Bit Floating DSP Engine
  • Safety Listed to UL60005
  • EQ Modules: Parametric, Graphic, and Anti-Feedback
  • Crossover Modules: Butterworth, Linkwitz Riley,Bessel, Slopes: 6 to 48dB per Octave
  • Filter Modules: High Shelf, Low Shelf, All Pass
  • Mixer Modules: Gain Sharing Auto-Mixer, GatingAuto-Mixer, Matrix Mixer, Standard Mixer, LR Mixer, LCR Mixer
  • Generator Modules: Sine Tone, Sign Sweep, White, Pink
  • Dynamics Modules: Compressor, Expander, Limiter, Ducker

Atlas Sound BB-816DT Specifications:

  • Input Type Microphone or Line, SoftwareSelectable
  • Input Gain -40 to +15dB in 0.25dB Steps
  • Phantom Power 48V, Software Enabled
  • Output Type Line
  • Output Gain -40 to +15dB in 0.25dB Steps
  • Output impedance 50 Ohms
  • Processor 40-Bit Floating Point
  • Sampling Rate 48kHz
  • Analog Converters High Performance 24-Bit
  • Power Requirements 90-240VAC (50~60Hz)
  • 1.75"(44mm) W x 19"(483mm)D x 9"(229mm)H
