Lex LSC19-LFS-29 LSC19 Female Inline Connector with Solder Termination

OUR PART #: LSC19-LFS-29 MFR #: LSC19-LFS-29

Copied to clipboard

This connector is used to connect power to six circuits of theatrical or motion picture luminaries. ...Read more

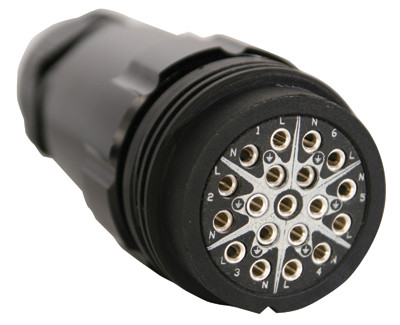

Lex LSC19-LFS-29 LSC19 Female Inline Connector With Solder Termination Image 1
Lex LSC19-LFS-29 LSC19 Female Inline Connector With Solder Termination
Our Price: $94.83
List Price: $97.45

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$3/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

This connector is used to connect power to six circuits of theatrical or motion picture luminaries. It is also used for assembly or repair of six circuit lighting extension cables and equipment cables. 19 pin, 6-circuit, 23 Amp, 600 VAC, LSC19 female inline connector, solder termination, black finish.

Applications:

  • Motion Picture & Television Production
  • Outdoor Events
  • Entertainment Theatre
  • Concert Touring
  • Live Events
  • Convention Centers
  • Sporting Events
  • OEM

Lex Products Corp LSC19-LFS-29 Features:

  • Proprietary anti-rotation design features 12interlocking keys to help prevent spinning of the interior within the male andfemale housings
  • Prevents mis-alignment of male and female circuitconductors and unmateable or mismatched connections
  • Helps prevent broken conductors and loose or damagedground rings
  • UL Recognized at 23 Amps, 600 VAC
  • Each circuit can carry up to a maximum of 23 Ampscontinuous load
  • “Tempered Spring” female contacts maintain constantpin pressure to help ensure low resistance connections
  • Machined aluminum housing with hard black anodizedfinish provides enhanced durability
  • Silver plated brass contacts for high conductivity
  • Interiors are clearly and permanently marked on front and back for easywiring and circuit identification

Lex Products Corp LSC19-LFS-29 Specifications:

  • Rating: 23 Amp, 600 VAC
  • Operating Temperature: -55 to +60 degrees C
  • Ingress Protection: IP67 watertight when mated
  • Housing Material: Machined aluminum, hard blackanodized finish
  • Insert: Silicone
  • Cable Diameter Range: 0.55" - 1.00"
  • Termination Type: Solder
  • Conductor Size: #12 - #16 AWG
  • Contacts: Silver plated brass
