Lex Products Corp LSC19-LMC-29

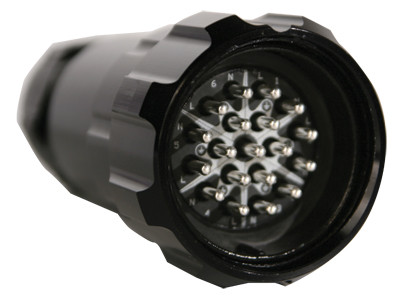

19-Pin 6-Circuit LSC19 Male Inline Connector with Crimp Termination

OUR PART #:  LSC19-LMC-29

This connector is used to connect power to six circuits of theatrical or motion picture luminaries.
Learn More
Our Price: $74.55
List Price: $84.95
You save 12%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lex Products Corp LSC19-LMC-29
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This connector is used to connect power to six circuits of theatrical or motion picture luminaries. It is also used for assembly or repair of six circuit lighting extension cables and equipment cables. 19 pin, 6-circuit, 23 Amp, 600 VAC, LSC19 male inline connector, crimp termination, black finish.

Applications:

  • Motion Picture & Television Production
  • Outdoor Events
  • Entertainment Theatre
  • Concert Touring
  • Convention Centers
  • Sporting Events
  • OEM

Lex Product Corp LSC19-LMC-29 Features:

  • Proprietary anti-rotation design features 12interlocking keys to help prevent spinning of the interior within the male andfemale housings
  • Prevents mis-alignment of male and female circuitconductors and unmateable or mismatched connections
  • Helps prevent broken conductors and loose or damagedground rings
  • UL Recognized at 23 Amps, 600 VAC
  • Each circuit can carry up to a maximum of 23 Ampscontinuous load
  • “Tempered Spring” female contacts maintain constantpin pressure to help ensure low resistance connections
  • Machined aluminum housing with hard black anodizedfinish provides enhanced durability
  • Silver plated brass contacts for high conductivity
  • Interiors are clearly and permanently marked on front and back for easywiring and circuit identification

Lex Product Corp LSC19-LMC-29 Specifications:

  • Rating: 23 Amp, 600 VAC
  • Operating Temperature: -55° to +60° C
  • Ingress Protection: IP67 watertight when mated
  • Housing Material: Machined aluminum, hard blackanodized finish
  • Insert: Silicone
  • Cable Diameter Range: 0.55" - 1.00"
  • Termination Type: Crimp
  • Conductor Size: #12 - #16 AWG
  • Contacts: Silver plated brass
