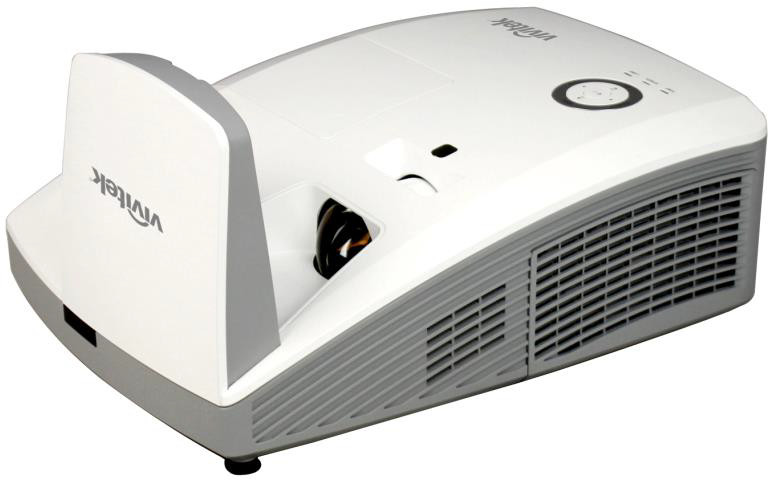

Vivitek D751ST
3000 Lumen XGA Ultra Short Throw Projector

OUR PART #  D751ST

Call for info!


The Vivitek D751ST is an XGA ultra short-throw projector that can project an 85-inch image from about 2.5 feet away. The D751ST features 2800 lumens, a 5000:1 contrast and DLP®/BrilliantColor™ technologies to deliver sharp, vivid images. With an assortment of connectivity options and two built-in speakers, the Vivitek D751ST is ready for today’s multimedia demands in tight spaces.

Vivitek D751ST Features:

  • 2800 lumens of brightness with a 5000:1 contrast ratio
  • Ultra short-throw to limit shadows and light glare
  • Energy efficient lamps that last up to 8000 hours (in Eco mode)
  • 3D-ready via DLP® Link™
  • DLP and BrilliantColor technologies by Texas Instruments
  • Connectivity options include: HDMI v1.4, two (2)VGA-in, composite video, S-video
  • Sealed optical engine to minimize the impact of dust
  • RJ45/RS-232 for integration and system administration
  • Top-loading, cover for quick and easy lamp replacement

Vivitek D751ST Specifications:

  • Brightness: 2800 Lumens (Typical)
  • Native Resolution: XGA (1024 x 768)
  • Max. Resolution: UXGA (1600 x 1200)
  • Contrast Ratio: 5000:1 (Full On/Off)
  • Lamp Life and Type: 5000/8000 Hours (Normal/Eco Mode),230W
  • Lamp Part #: 5811118004-SPT
  • Display Type: Single DMD DLP® Technology by Texas Instruments
  • Throw Ratio (±3%): 0.44:1 (Distance/Width)
  • Image Size (Diagonal): 67.8” to 84.8” (1.7 to 2.2 m)
  • Projection Distance: 2.0” to 2.5” (0.6 to 0.8m)
  • Projection Lens: F=2.5, f=5.09mm
  • Zoom Ratio: Fixed Lens, Manual Focus
  • Aspect Ratio: 4:3 Native, 16:9 & 16:10 Compatible
  • Offset: 120%
  • Keystone Correction: ±40° Vertical, ±40 steps
  • Color Spectrum: 16.7 Million
  • Horizontal Scan Rate: 15, 30 to 91.4 KHz
  • Vertical Scan Rate: 43 to 87 Hz
  • Speaker: 10W Mono (x2)
  • Remote Control: Fully Featured IR Remote with Laser Pointer
  • Projection Method: Table Top or Ceiling Mount (Frontor Rear)
  • Uniformity: 85%
  • Computer Compatibility: UXGA, WXGA, SXGA+, SXGA, XGA,SVGA, VGA Resized;
  • VESA Standards: PC and Macintosh Compatible
  • Video Compatibility: SDTV(480i, 576i), EDTV (480p,576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I,M,N), SECAM (B, D, G, K, K1, L)
  • I/O Connection Ports:  HDMI v1.4, VGA-In (x2),VGA-Out, Composite Video, S-Video, RCA Audio-In, Mini-Jack Audio-In, Mini-Jack Audio-Out , RJ45, RS-232c, 3D-Sync, USB (Service)
  • Security: Kensington® Lock Port, Security Bar
  • Weight: 11lbs (5.0 kg)
  • Dimensions: 11.3" W x 4.9" H x 14.7" D (287.7 x126.6 x 374.5 mm)
  • Noise Level: 29dB/33dB (Eco/Normal Mode)
  • Power Supply: AC 100-240V, 50/60Hz
  • Consumption: 240W (Eco Mode), 280W (Normal Mode), <0.5W (Standby Mode)
  • Operating Temperature: 41 to 95°F (5 to 35°C)
  • Warranty: 5-Year P&L Warranty, 1-Year Lamp Warranty
  • Standard Accessories: AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, User's Manual (CD), Warranty Card
