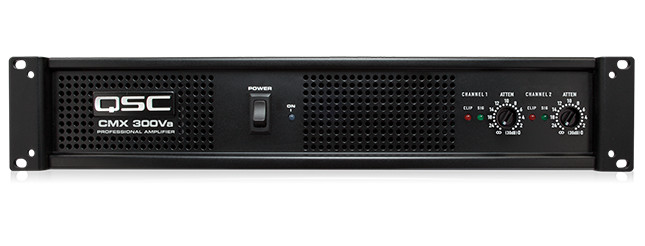

QSC CMX300VA
CMX Series 2RU 300W @ 4 Ohms Stereo Power Amplifier

OUR PART #  CMX300VA

Our Price: $480.00
(Low Price Guarantee)
In Stock

dThe QSC CMX300VA is a 300W @ 4 Ohms stereo power amplifier.

The CMXa series is an economical and rugged power amplifier designed to meet the needs of system integrators. It is based upon the proven, rock-solid, reliable performance found in the award winning RMX Series. The CMXa feature sets are designed for wide-ranging application in facilities such as performance halls, houses of worship, sports clubs, gymnasiums, dance venues, pubs, and FGM/BGM systems. The CMXa Series provides unmatched performance, the right power for the job and an affordable price point.

Proven and Reliable Power Plant
CMXa amplifiers incorporate everything QSC has learned in more than forty years of striving to deliver worry-free operations without failures. The design of these amplifiers starts with QSC's world-class power supplies. The CMXa uses a powerful, high-current toroidal transformer and filtering to ensure generous energy reserves. This allows the amplifiers to effortlessly handle high-level transients, even when driving abusive 2 ohm speaker loads.

All CMXa amplifiers are protected from damage from shorted outputs. Automatic current limiting protects the amplifier from damage until the short is corrected.

CMXa amplifiers also feature DC protection systems to prevent loudspeaker damage inthe unlikely event of an output transistor failure. DC voltage from the power supply is never passed directly to your speakers, even in the event of an output circuit failure.

Superior Performance
The CMXa amplifiers deliver true and accurate studio-quality sound. A full complementary output circuit using high-grade linear output devices generates accurate, flat-frequency response with low distortion. SMT (Surface Mount Technology) triples small-signal component density, enabling high power output in a 2 rack unit chassis (3 RU for the CMX 2000Va). Unlike other designs, CMXa output devices are directly mounted to the heat sink for optimum thermal coupling and cooling.

The V in the model name designates the ability to directly drive 70-volt and/or 100-volt distributed loudspeakers. The CMX 300Va and must be configured for bridged-mono operation in order to directly drive high-impedance systems

For installations requiring a transformer isolated output, the CMX has optional accessories to cover your needs.

QSC CMX300VA Features:

  • “Flex-Use” loading options allow you to drivelow-impedance loads down to 2 ohms and certain models to drive 70 and 100Vdistributed loudspeaker systems
  • “Flex-Use” Input connectivity choices including actively balanced barrier strip, XLR, or 1/4" TRS
  • “Flex-Use” Output connectivity choices include NL4 Speakon™ and detachable terminal block
  • Rack mountable with chassis less than 16" or 40.6 mm deep
  • 1 dB recessed, detented gain controls for fast, accurate and repeatable settings
  • Tamper-proof security cover for gain controls
  • Recessed rear DIP switches for easy selection of stereo, parallel, or bridged mode operation, and the additional choice of enabling/disabling low frequency filter protection
  • Low-noise variable-speed fans with rear-to-front airflow keep amplifiers and racks cool

QSC CMX300VA Specifications:

  • Stereo Mode (both channels driven):
    • 8 Ohms / FTC 20 Hz – 20 kHz/ 0.1% THD:  185 Watts
    • 8 Ohms / EIA 1 kHz / 0.1% THD:  200 Watts
    • 4 Ohms / FTC 20 Hz – 20kHz / 0.1% THD:  280 Watts
    • 4 Ohms / EIA 1 kHz / 0.5% THD:  300 Watts (1% THD)
    • 2 Ohms / EIA 1 kHz / 1% THD:  430 Watts
  • Bridge Mono Mode:
    • 8 Ohms / FTC 20 Hz – 20 kHz / 0.1% THD:  530 Watts
    • 8 Ohms / EIA1 kHz / 0.1% THD:  600 Watts
    • 4 Ohms / EIA 1 kHz / 1% THD:  830 Watts
    • 70V Direct Drive / EIA 1 kHz / 1% THD:  600 Watts
  • Frequency Response:  20 Hz – 20 kHz: +/-1 dB, -3 dB points:  5 Hz – 50 kHz
  • Damping Factor (1 kHz and below):  > 300 at 8 Ohms
  • Input Impedance:  10 kOhms unbalanced, 20 kOhms balanced
  • Input Clipping:  10 Vrms (+22 dB)
  • Cooling:  Continuously variable-speed fan,rear-to-front air flow
  • Connectors (each channel):
    • Input:  Active balanced; barrier strip, XLR and 1/4" (6.3 mm) – TRS tip and XLR pin 2 positive
    • Output:  Detachable terminal block and Neutrik™ Speakon™
  • Controls:
    • Front:  AC switch, Ch. 1 & 2 gain knobs
    • Rear:  10-position DIP switch
  • Indicators:
    • Power-on: Green LED
    • Signal: Green LED (1 per channel)
    • Clip: Red LED (1 per channel)
  • Amplifier Protection:  Stable into reactive or mismatched load
  • Load Protection:  On/off muting, AC coupling(CMX 300Va and CMX 500Va), triac crowbar (CMX 800Va and CMX 2000Va on eachchannel)
  • Power Requirements: 120 and 230 VAC, 50 – 60Hz
  • Dimensions (HWD): 3.5" 2 rack spaces x 19" rackmounting x 15.9" deep to rear support ears
  • Weight: 35 lbs

QSC CMX300VA
CMX Series 2RU 300W @ 4 Ohms Stereo Power Amplifier

OUR PART #  CMX300VA

Product Information:

dThe QSC CMX300VA is a 300W @ 4 Ohms stereo power amplifier.

The CMXa series is an economical and rugged power amplifier designed to meet the needs of system integrators. It is based upon the proven, rock-solid, reliable performance found in the award winning RMX Series. The CMXa feature sets are designed for wide-ranging application in facilities such as performance halls, houses of worship, sports clubs, gymnasiums, dance venues, pubs, and FGM/BGM systems. The CMXa Series provides unmatched performance, the right power for the job and an affordable price point.

Proven and Reliable Power Plant
CMXa amplifiers incorporate everything QSC has learned in more than forty years of striving to deliver worry-free operations without failures. The design of these amplifiers starts with QSC's world-class power supplies. The CMXa uses a powerful, high-current toroidal transformer and filtering to ensure generous energy reserves. This allows the amplifiers to effortlessly handle high-level transients, even when driving abusive 2 ohm speaker loads.

All CMXa amplifiers are protected from damage from shorted outputs. Automatic current limiting protects the amplifier from damage until the short is corrected.

CMXa amplifiers also feature DC protection systems to prevent loudspeaker damage inthe unlikely event of an output transistor failure. DC voltage from the power supply is never passed directly to your speakers, even in the event of an output circuit failure.

Superior Performance
The CMXa amplifiers deliver true and accurate studio-quality sound. A full complementary output circuit using high-grade linear output devices generates accurate, flat-frequency response with low distortion. SMT (Surface Mount Technology) triples small-signal component density, enabling high power output in a 2 rack unit chassis (3 RU for the CMX 2000Va). Unlike other designs, CMXa output devices are directly mounted to the heat sink for optimum thermal coupling and cooling.

The V in the model name designates the ability to directly drive 70-volt and/or 100-volt distributed loudspeakers. The CMX 300Va and must be configured for bridged-mono operation in order to directly drive high-impedance systems

For installations requiring a transformer isolated output, the CMX has optional accessories to cover your needs.

QSC CMX300VA Features:

  • “Flex-Use” loading options allow you to drivelow-impedance loads down to 2 ohms and certain models to drive 70 and 100Vdistributed loudspeaker systems
  • “Flex-Use” Input connectivity choices including actively balanced barrier strip, XLR, or 1/4" TRS
  • “Flex-Use” Output connectivity choices include NL4 Speakon™ and detachable terminal block
  • Rack mountable with chassis less than 16" or 40.6 mm deep
  • 1 dB recessed, detented gain controls for fast, accurate and repeatable settings
  • Tamper-proof security cover for gain controls
  • Recessed rear DIP switches for easy selection of stereo, parallel, or bridged mode operation, and the additional choice of enabling/disabling low frequency filter protection
  • Low-noise variable-speed fans with rear-to-front airflow keep amplifiers and racks cool

QSC CMX300VA Specifications:

  • Stereo Mode (both channels driven):
    • 8 Ohms / FTC 20 Hz – 20 kHz/ 0.1% THD:  185 Watts
    • 8 Ohms / EIA 1 kHz / 0.1% THD:  200 Watts
    • 4 Ohms / FTC 20 Hz – 20kHz / 0.1% THD:  280 Watts
    • 4 Ohms / EIA 1 kHz / 0.5% THD:  300 Watts (1% THD)
    • 2 Ohms / EIA 1 kHz / 1% THD:  430 Watts
  • Bridge Mono Mode:
    • 8 Ohms / FTC 20 Hz – 20 kHz / 0.1% THD:  530 Watts
    • 8 Ohms / EIA1 kHz / 0.1% THD:  600 Watts
    • 4 Ohms / EIA 1 kHz / 1% THD:  830 Watts
    • 70V Direct Drive / EIA 1 kHz / 1% THD:  600 Watts
  • Frequency Response:  20 Hz – 20 kHz: +/-1 dB, -3 dB points:  5 Hz – 50 kHz
  • Damping Factor (1 kHz and below):  > 300 at 8 Ohms
  • Input Impedance:  10 kOhms unbalanced, 20 kOhms balanced
  • Input Clipping:  10 Vrms (+22 dB)
  • Cooling:  Continuously variable-speed fan,rear-to-front air flow
  • Connectors (each channel):
    • Input:  Active balanced; barrier strip, XLR and 1/4" (6.3 mm) – TRS tip and XLR pin 2 positive
    • Output:  Detachable terminal block and Neutrik™ Speakon™
  • Controls:
    • Front:  AC switch, Ch. 1 & 2 gain knobs
    • Rear:  10-position DIP switch
  • Indicators:
    • Power-on: Green LED
    • Signal: Green LED (1 per channel)
    • Clip: Red LED (1 per channel)
  • Amplifier Protection:  Stable into reactive or mismatched load
  • Load Protection:  On/off muting, AC coupling(CMX 300Va and CMX 500Va), triac crowbar (CMX 800Va and CMX 2000Va on eachchannel)
  • Power Requirements: 120 and 230 VAC, 50 – 60Hz
  • Dimensions (HWD): 3.5" 2 rack spaces x 19" rackmounting x 15.9" deep to rear support ears
  • Weight: 35 lbs
