ADJ Quad Phase HP 32W RGBW LED Moonflower

OUR PART #: QUAD-PHASE-HP MFR #: QUA034

Copied to clipboard

ADJ's Quad Phase HP is designed to fill a room and dazzle a crowd with dozens of razor sharp beams of light ... Read more

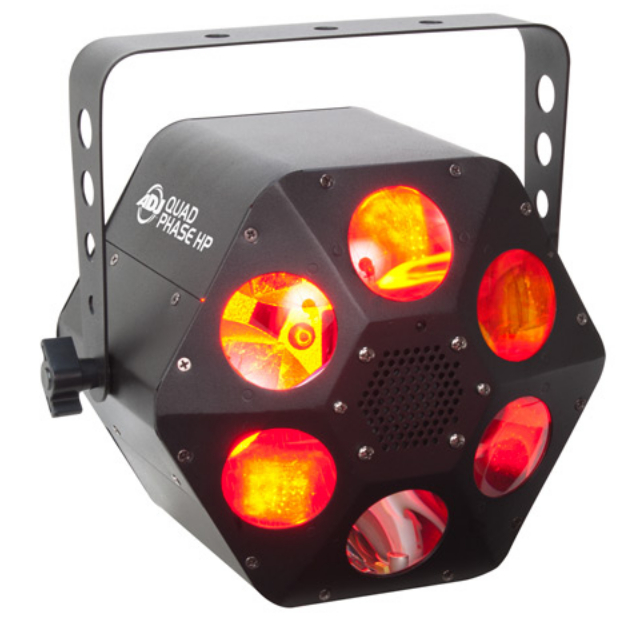

ADJ Quad Phase HP 32W RGBW LED Moonflower Image 1
ADJ Quad Phase HP 32W RGBW LED Moonflower Image 2
ADJ Quad Phase HP 32W RGBW LED Moonflower Image 3
ADJ Quad Phase HP 32W RGBW LED Moonflower
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

ADJ's Quad Phase HP is designed to fill a room and dazzle a crowd with dozens of razor sharp beams of light. This technologically advanced moonflower features a high-powered, 32-Watt 4-in-1 quad color LED source (RGBW). Offering twice as many majestic colors as a “TRI LED”, the Quad Phase HP produces up to fifteen colors in all.

The Quad Phase HP also offers all the latest features sought after in special effects lights such as: DMX-512 for programming or linking capabilities, exciting built-in sound active programs, no duty cycle (run all night), a long life, high output LED source (30,000 hours), 4-button DMX display on rear (for easier programmability), IEC power daisy-chaining, and a 1.8-degree steeper motor for smooth movement. The Quad Phase HP may be controlled by a DMX Controller or ADJ’s UC3 easy-to-use mini controller.

ADJ Quad Phase HP Features:

  • DMX-512 Protocol Compatible (Four DMX Channels)
  • RGBW
  • Bright 32 Watt LED
  • 2 Operating Modes - Sound Active & DMX Control
  • Internal Microphone
  • Digital Display for Address and Function Setting
  • UC3 Controller (not included)
  • Power Cord Daisy Chain

ADJ Quad Phase HP Specifications:

  • High output Moonflower effect with 32-Watt Quad-Color LED 4-in-1 (Red, Green, Blue, White) technology produces color-changing beams of light
  • Dozens of razor sharp beams fill a dance floor, ceiling or wall
  • Using a 1.8° Long Life Stepper motor Technology it can produce quick accurate movement or smooth fluid move movements for mood music
  • 4 DMX Channels (Color, Rotation, Strobe, Dimmer)
  • Operation modes: Sound Active, Primary/Secondary or DMX-512
  • Exciting built-in programs (Sound Active & Primary/Secondary modes)
  • Produces 15 Preset Colors
  • Linkable via 3-pin XLR cable
  • 4-button DMX display on rear panel
  • Beam Angle: 65°
  • Strobe & Pulse LED Effect
  • DMX-512 Protocol
  • Electronic Dimming: 0 - 100%
  • Runs extremely cool! - NO Duty Cycles! - Run all night!
  • Includes a Wireless IR Remote (ADJ RC1)
  • Compatible with the ADJ UC3 easy-to-use controller (sold separately)
  • IEC AC IN/OUT on rear to daisy chain power (up to 5 Quad Phase HP’s @ 120V and 9 Quad Phase HP’s @ 230V )
  • Safety hook on rear panel
  • Power Draw: 64W Max
  • Multi voltage: 100V~240V, 50/60Hz
  • Long life LEDs (30,000 hr. rating)
  • Light Source: 32W RGBW LED 4-in-1
  • Dimensions (LxWxH): 12.5” x 8” x 11” (312 x 198 x 279mm)
  • Weight: 9 lbs. (4 kg.)

Note

NOTE: Specifications subject to change without notice.
