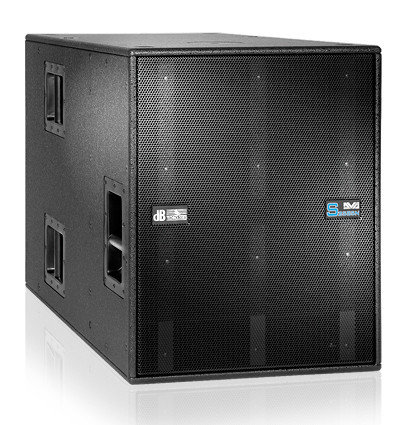

DB Technologies DVA-S2585N
18" 2500W Active Cardioid Subwoofer

OUR PART #:  DVA-S2585N

The DVA S2585N is a compact subsystem featuring a cardioid layout designed for utmost directivity.
Learn More
Our Price: $4,899.00
List Price: $6,100.00
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DB Technologies DVA-S2585N
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DVA S2585N is a compact subsystem featuring a cardioid layout designed for utmost directivity.

The system consists of two separate chambers, one loaded with a forward facing 18ÔÇť woofer and another with a rearward facing 15ÔÇť woofer.

The integrated digipro®G2 digital power amps provide 2500W total output power.
The high-quality DSP filters signals and controls the speakers to deliver a remarkably authentic audio image and faithful transient response.

The housing is ready to fly with the optional SRK10 Rigging Kit is all it takes to put up flown cardioid sub arrays.

Many systems lack low-frequency directivity and, as a result, are plagued by interference and annoying noise.

The S2825N, in contrast, was engineered specifically for enhanced low-frequency directivity.
And it not only sounds great, it is also easy to handle and transport.

Factory-equipped with an RDnet port, this subwoofer is ready for integration into elaborate, remotely controlled and monitored DVA T12 sound reinforcement systems via RJ45 inputs and outputs that connect the units to the RDnet hub.

Specifications:

Speaker Type: Active Cardiod-Subwoofer

Acoustical data

  • Frequency Response [+/- 3dB]: 35 - 120 Hz
  • Max SPL: 140 dB
  • Directivity: Cardiod
  • LF: 18+15 "
  • Voice Coil LF: 4 "

Amplifier

  • Amp Technology: Digipro┬« G2
  • Amp Class: Class D
  • Power Supply: 2.5 kW SMPS
  • LF Amp: 2500 W RMS
  • Cooling: Convection

Processor

  • Controller: DSP 56 bit
  • AD/DA Converter: 24bit/ 96 kHz
  • System Presets: X-Over,Delay
  • Phase: 0, 180 ┬░
  • Limiter: RMS, Peak, Thermal
  • Delay Option: 0-4.5 ms internal
  • Crossover Frequency LF-MF: 75-120Hz | steps of 5Hz
  • LF-Xover out slope: 24 dB/Octave

Mechanics

  • Housing: Multiplex birch plywood
  • Housing Design: Rectangular
  • Handles: 3x Per Side
  • Accessory: Dolly, Dust Cover, Rain Cover
  • Pole Mount: M20
  • Rigging Points: integrated for SRK10 fly kit 2xPick Points on top to fix DRK10/20 rigging frames
  • Dimensions: 20.6"W x 25.6"H x 40"D
  • Weight: 143.3 lbs
Ground Stacking Adapter
DB Technologies GSA-IG Ground Stacking Adapter
The dB Technologies GSA-IG is a subwoofer mounting adapter for INGENIA series speaker. Compatible Subwoofers: DVA S09 DP, DVA S10 DP, DVA S1521 N, DVA S1518 N, DVA S2585 N, SUB 15H, SUB 18H.
