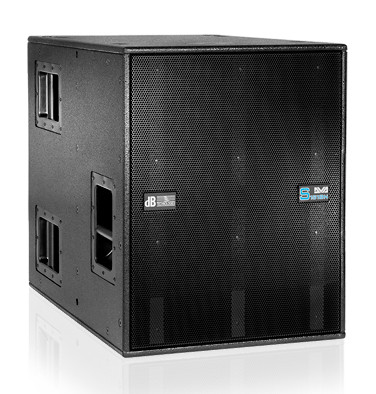

DB Technologies DVA-S1518N
18" 2500W Active Subwoofer

OUR PART #:  DVA-S1518N

The DVA S1518N is a bandpass subwoofer based on the DVA S10, but with 50 percent higher power amp output, an integrated DSP, and an RDnet link.
Learn More
Our Price: $3,999.00
List Price: $5,000.00
You save 20%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DB Technologies DVA-S1518N
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DVA S1518N is a bandpass subwoofer based on the DVA S10, but with 50 percent higher power amp output, an integrated DSP, and an RDnet link.

A remarkably versatile subwoofer, it delivers tight and punchy bass response that supports and transitions smoothly to satellites’ lower midrange frequencies.

The DVA S1518N is equipped with a next-generation, 18" woofer driven by a built-in 1500W digipro® G2 digital power amp.
Subwoofer arrays are easily flown using the optional SRK10 rigging hardware retrofit.

The S1518N will also serve you well in compact stacks paired with DVA T12, T8 and T4 units or DVX Series enclosures.

The  DVA-S1518N features a premium-quality DSP boasting excellent audio specs with variable crossover frequencies, precise limiter functions and adjustable delay settings for perfect time alignment.

Specificaitons:

Speaker Type: Active Bandpass Subwoofer

Acoustical data

  • Frequency Response [+/- 3dB]: 39 - 120 Hz
  • Max SPL: 138 dB
  • Directivity: Omnidirectional, Cardiod Option with DSP setup
  • LF: 18 "
  • Voice Coil LF: 4 "

Amplifier

  • Amp Technology: Digipro® G2
  • Amp Class: Class D
  • Power Supply: 1.5 kW SMPS
  • LF Amp: 1500 W RMS
  • Cooling: Convection

Processor

  • Controller: DSP 56 bit
  • AD/DA Converter: 24bit/ 96 kHz
  • System Presets: X-Over,Delay
  • Phase: 0, 180 °
  • Limiter: RMS, Peak, Thermal
  • Delay Option: 0-4.5 ms internal
  • Crossover Frequency LF-MF: 75-120Hz | steps of 5Hz
  • LF-Xover out slope: 24 dB/Octave

Mechanics

  • Housing: Multiplex birch plywood
  • Housing Design: Rectangular
  • Handles: 3x Per Side
  • Accessory: Dolly, Wheels 100mm, Dust Cover, Rain Cover
  • Pole Mount: M20
  • Rigging Points: integrated for SRK10 fly kit 2xPick Points on top to fix DRK10/20 rigging frames
  • 20.6"Wx 25.6"H x 28.8"D
  • Weight: 101.41 lbs
