RCF NX-15-SMA 15" Active Coaxial Stage / Floor Monitor 700W

OUR PART #: NX-15-SMA

Copied to clipboard

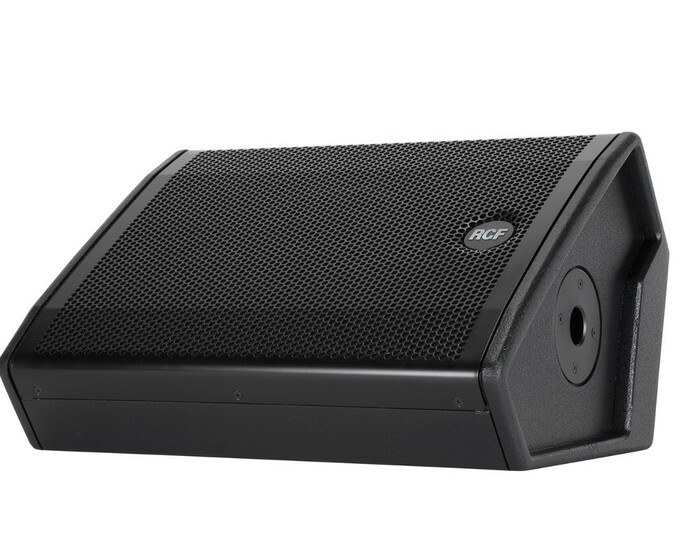

RCF NX-15-SMA 15" Active Coaxial Stage / Floor Monitor 700W Image 1
RCF NX-15-SMA 15" Active Coaxial Stage / Floor Monitor 700W Image 2
RCF NX-15-SMA 15" Active Coaxial Stage / Floor Monitor 700W Image 3
RCF NX-15-SMA 15" Active Coaxial Stage / Floor Monitor 700W Image 4
RCF NX-15-SMA 15" Active Coaxial Stage / Floor Monitor 700W
Our Price: $2,499.00
List Price: $2,799.00
You save 11%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$70/mo* with 36 month financing. ‡
Limited Time. Learn How
Item has an extended delivery time. Please call our Sales Pros for up-to-date information on product availability or alternatives.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The NX 15-SMA is equipped with new high power 700W digital amplifier and a newly designed 15" coaxial neodymium transducer that guarantees outstanding audio quality and definition as well as an extremely lightweight of the final system.

The NX 15-SMA can be also used as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side. In order to control the response of the speaker in such different applications, RCF has incorporated two special Equalization Modes: Floor, for stage monitoring - Free Field, for the use of the speakers as a stand-alone PA system. Cabinet is made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road. An ergonomic side handle, integrated with the input panel, is provided for an easier transport of the speaker.

Features:

  • 1400Watt Peak, 700Watt RMS digital bi-amplification
  • 130dB max spl
  • 60° x 60° constant directivity horn
  • 15" High power neodymium woofer, 2.5" voice coil
  • 1.7" kapton dome, 1" exit, neodymium high frequency driver
  • DSP processing: floor, free field equalization, soft limiter and protection
  • Combo XLR/jack input, XLR signal output

Specifications:

  • Frequency Response: 50Hz - 20000Hz
  • Max SPL: 130dB
  • Horizontal coverage angle: 60°
  • Vertical coverage angle: 60°
  • Compression Driver: 1.7" kapton dome, 1" exit, neodymium
  • Woofer: 15" neo high power woofer, 2.5" voice coil
  • Input/Output Section
    • Input connectors: XLR, jack
    • Output connectors: XLR
    • Processor Section
    • Limiter: Soft Limiter
    • Controls: Free field, floor
  • Amplifier Specifications
    • Total power: 1400W PEAK
      • High frequencies: 400W PEAK
      • Low frequencies: 1000W PEAK
    • Total power: 700W RMS
    • High frequencies: 200W RMS
    • Low frequencies: 500W RMS
  • Cabinet
    • Cabinet Material: Baltic Birch
    • Handles: 1 on side
    • Pole Mount/Cap: yes
    • Grille: steel
  • Physical Specifications
    • Height: 14.25"
    • Width: 25.59"
    • Depth: 18.42"
    • Net Weight: 43.65lbs

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Product Documents

Click to download
