Product Overview

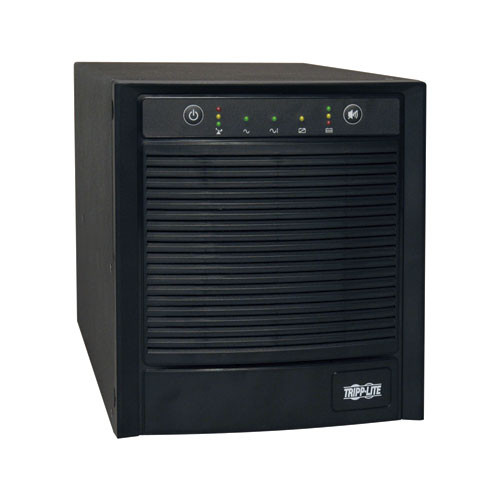

2200VA line-interactive tower UPS system for server, networking and telecommunications equipment. Upright tower form factor. Offers sine wave 120V nominal output in both AC and battery modes. Switches to battery-derived AC output during power failures and extreme voltage variations. Line-interactive automatic voltage regulation (AVR) provides voltage boost/cut during brownouts/overvoltages to maintain regulated 120V nominal output over an input voltage range of 83-145V. Includes NEMA 5-20P input plug and 7 UPS-supported (6 x 5-15/20R & 1 L5-20R) output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all three network interfaces. Includes PowerAlert power management software and complete cabling. Three-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation, and battery warning LEDs. Audible alarm. Self-test. Field-replaceable, hot-swappable internal batteries. Attractive all-black color scheme.
Features:
- SmartPro line-interactive UPS system is ideal for voice, data, medical and industrial networking applications
- Line-interactive voltage regulation maintains selectable 120V nominal output during brownouts as low as 83V and overvoltages to 145V
- Enables continuous operation through blackouts, voltage fluctuations and surges
- Line-interactive automatic voltage regulation (AVR) provides 12% and 24% voltage boost during brownouts and a 12% voltage cut during overvoltages
- Standard internal battery set offers 13 min. runtime at half load (800W) and 5 min. at full load (1600W)
- Space-saving upright tower format
- Network interfaces support simultaneous communications via built-in USB port, DB9 serial port and SNMPWEBCARD slot
- HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Included PowerAlert power management software supports safe unattended shutdown, monitoring and control via local connected servers, plus any number of additional servers over IP
- UPS interface supports on-battery, low-battery, power-restored, AC-voltage, DC-voltage, output current monitoring, battery charge current, battery capacity, timed inverter shutoff, activate self-test and output power control
- NEMA 5-20P input plug/6 x NEMA 5-15R and 1 x NEMA L5-20R output receptacles
- Front panel LEDs provide current monitoring, voltage regulation, battery charge level, and battery warning information
- UPS ships fully assembled in full compliance with DOT regulations; no time-consuming connection of internal batteries by user required
Specifications:
- OUTPUT
- Output Volt Amp Capacity (VA) 2200
- Output kVA capacity (kVA) 2.2
- Output Watt Capacity (watts) 1600
- Output kW capacity 1.6
- Output power factor 0.7
- Nominal Output Voltage(s) Supported 120V
- Frequency compatibility 60 Hz
- Output voltage regulation (line mode) -18% / +8%
- Output voltage regulation (Battery mode) +/- 5%
- Built-in UPS output receptacles 6 5-15/20R outlet(s); 1 L5-20R outlet(s)
- Output AC waveform (AC mode) Sine wave
- Output AC waveform (battery mode) Pure Sine wave
- INPUT
- Rated input current (at maximum load) 14.8A
- Nominal Input Voltage(s) Supported 120V AC
- UPS input connection type 5-20P
- Input circuit breaker 20A
- UPS Input cord length (ft.) 10
- UPS Input cord length (m) 3
- Recommended Electrical Service 20A 120V
- BATTERY
- Full load runtime (minutes) 5 min. (1600w)
- Half load runtime (minutes) 13 min. (800w)
- DC system voltage (VDC) 48
- Battery recharge rate (included batteries) Less than 4.5 hours from 10% to 90%
- Replacement battery cartridge (internal UPS battery replacement) RBC54
- Battery Access Battery access door
- Battery replacement description Hot-swappable, user replaceable batteries
- VOLTAGE REGULATION
- Voltage regulation description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83V to overvoltages to 145V
- Overvoltage correction Input voltages between 127 and 145 are reduced by 12%
- Undervoltage correction Input voltages between 96 and 108V are boosted by 12%
- Severe undervoltage correction Input voltages between 83 and 95V are boosted by 24%
- LEDS ALARMS & SWITCHES
- LED Indicators 9 LEDs indicate line power, battery power, AVR, overload and replace battery status - with a 3-LED level meter for load and battery charge level
- Alarms Audible alarm indicates power failure and overload conditions
- Alarm cancel operation Power-fail alarm can be silenced using alarm-cancel switch
- Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
- SURGE / NOISE SUPPRESSION
- UPS AC suppression joule rating 570
- UPS AC suppression response time Instantaneous
- EMI / RFI AC noise suppression Yes
- PHYSICAL
- Installation form factors supported with included accessories Tower
- Primary form factor Tower
- UPS / Power Module dimensions in primary form factor (height x width x depth / inches) 10.5 x 8.9 x 12.5
- UPS / Power Module dimensions in primary form factor (height x width x depth / cm) 26.7 x 22.5 x 31.8
- UPS / Power Module weight (lbs) 57
- UPS / Power Module weight (kg) 25.9
- UPS Shipping dimensions (height x width x depth / inches) 14.5 x 13.8 x 18
- UPS Shipping dimensions (height x width x depth / cm) 36.8 x 34.9 x 45.7
- Shipping weight (kg) 0
- Cooling method Fan
- UPS housing material Steel
- ENVIRONMENTAL
- Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
- Relative Humidity 0 to 95%, non-condensing
- AC mode BTU / hr. (full load) 286.3
- Battery mode BTU / hr. (full load) 885.6
- Audible Noise Audible Noise < 50 dBA at Front Side 1 Meter
- COMMUNICATIONS
- Communications interface USB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
- Network monitoring port description Supports detailed monitoring of UPS and site power conditions
- PowerAlert software Included
- Communications cable USB and DB9 cabling included
- WatchDog compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
- LINE / BATTERY TRANSFER
- Transfer time 2-4 milliseconds
- Low voltage transfer to battery power (setpoint) 83
- High voltage transfer to battery power (setpoint) 145
- SPECIAL FEATURES
- Cold Start (startup in battery mode during a power failure) Cold-start operation supported
- High availability UPS features Hot swappable batteries
- Green & high efficiency features Greater than 95% efficiency - GREEN UPS
- CERTIFICATIONS
- UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
- WARRANTY
- Product Warranty Period (Worldwide) 2-year warranty, 3 year with registration. Note: registration is required for 3-year warranty.
- Connected Equipment Insurance (U.S., Canada & Puerto Rico) $250,000 Ultimate Lifetime Insurance
