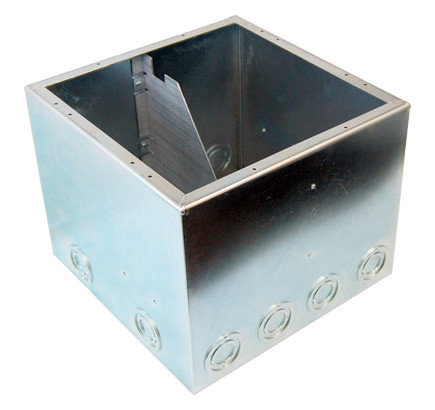

Ace Backstage Co. ISO1028BBX
8" Full Back Box with Isolation Bracket

OUR PART #:  ISO1028BBX

Our Price: $140.06
List Price: $176.01
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Ace Backstage Co. ISO1028BBX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Isolated ACE Back Boxes (ISOXXXBBX) include a galvaneal steel separation bracket mounted inside the back box to provide isolation between high and low voltage for ACE Stage Pockets. Installing ISO Back Boxes during the rough-in stage of construction saves the installer time and hassle in the finish-stage. High voltage conduit can enter the back box through combination knockouts on one side of the back box and low voltage through the opposite side. The connector and AC panels can be terminated and left inside the ISO back box until carpet is laid or floors are finished. In the final, finish stage the installer can pull the terminated connector panels through the back access opening in the ACE Pocket and secure the pocket bezel to the finished floor.

The Isolation Bracket sits tightly beneath the pocket, inside the back box, to maintain secure separation of high and low voltage, ensuring manual isolation.

ACE ISO Back Boxes are designed exclusively for use with ACE Full and Double Wide Stage Pockets. Set the back box securely braced into the floor to provide support equal to the floor loading requirements, accounting for any height offset required for the finished floor. Standard electrical conduit may be connected to the back box on any side via combination knockouts, and audio conduit connected on the opposing side. The protective cover is discarded when the finished pocket is installed. Mating screw holes are provided to secure the pocket flange to the back box flange.

Note: Not suitable for Mini or Half Back Box applications.

Features:

  • CLEARANCE VOLUME: Standard Stage Pocket body assemblies are 4.5" deepwhile the Back Box is 6" deep providing 1.5" work clearance in the bottom ofthe Back Boxes, making them ideal for feed thru or distribution junctions.Clearance volumes for individual Pocket/Back Box assemblies are asfollows:
     -  #ISO1028BBX Back Box with Full Pocket Clearance volume: 338 CubicInches
  • DURABLE CONSTRUCTION: ACE Standard Back Boxes (#BBX)are made from tough, welded 14 gauge steel (.071" thick). Ace Standard ACIsolation Brackets (#ISOBRKTx) are made from 16 gauge galvaneal (.064" thick).
  • ELECTRICAL KNOCKOUTS: ACE Standard Back Boxes comewith standard Electrical Conduit Combination Knockouts. 1/2", 3/4", 1", and1-1/4" Knock Outs multiple places typical on opposing sides. 1/2" and 3/4"Knock Outs multiple places typical on opposing sides.
  • PROTECTIVE COVER: Included with all ACE Back Boxes isa disposable, protective cover. Finished in the same corrosion resistant zincas the back box itself, the cover protects the box until the stage pocket isinstalled in the finish-stage of construction.
  • DURABLE FINISH: Clear zinc corrosion-resistant finish

Specifications:

  • ISO Back Box – 14 Gauge Steel (.071" thick)
  • ISO Bracket – 16 Gauge Galvaneal (.063" thick)

What's Included:

  • (1) ACE 102/104 Back Box
  • (1) ACE ISOBRKT, installed
  • (1) Disposable Protective Back Box Cover
  • (4) Self-Tapping Screws
