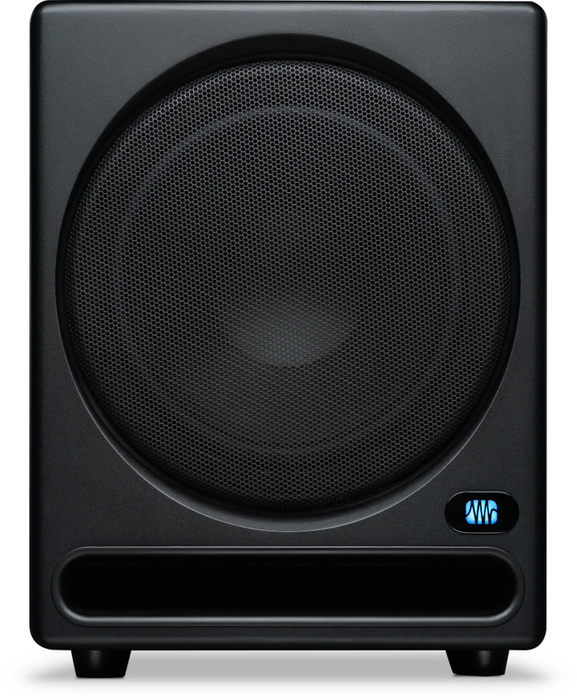

PreSonus Temblor T10
10" 250W Active Studio Subwoofer with Front-Firing Bass Reflex Port

OUR PART #  TEMBLOR-T10

Our Price: $399.95
List Price: $499.95
You save 20%! (Low Price Guarantee)
Please call for availability.

The PreSonus Temblor T10 is a 10", 250W active studio subwoofer with front-firing bass reflex port that is ideally suited for use with Eris, Sceptre, and Ceres BT series studio monitors. This subwoofer will complement full-range monitors without overshadowing them, extending the reach of your full-range system's low end with a musical and natural approach.

The Bottom Line is Great Sound
Powerful and musical, Temblor features high-quality components and design that enable it to deliver fast and accurate transient response, extending low frequencies without a hint of “tubbiness” or overshoot.

Designed for recording studios, the Temblor T10 is a front-firing active subwoofer with a 10-inch glass-composite driver, built-in crossover, high-temperature voice coil, and damped rubber surround. Its cabinet features a front-firing, bass-reflex acoustic port and optimized, resonance-suppressing internal bracing. The enclosure has integrated, gravity-calibrated rubber feet for stable placement.

In addition to outstanding accuracy and a frequency response that ranges from 20 Hz to 130 Hz, this combination of features enables the T10 to produce higher volume — up to 113 dB SPL — with less power than a sealed-box design. But make no mistake, the T10 has plenty of juice: 250 watts of Class AB power.

Customize Your System Until It's Just Right
The Temblor’s extensive user controls include input gain (-30 dB to +6 dB, continuously variable) and a continuously variable low-pass filter (50 Hz to 130 Hz) that let you create a seamless crossover transition between your full-range studio monitors and subwoofer for a more accurate listening environment.

A switchable high-pass filter removes frequency content below 80 Hz from the full-range signal sent from the Temblor’s outputs to the main monitors, avoiding destructive cancellation and reinforcement in the subwoofer’s upper range.

The result is a subwoofer that can be adjusted to perfectly complement not only PreSonus' Sceptre CoActual, Eris, and Ceres BT active studio monitors but virtually any studio monitor.

The T10 also features a momentary footswitch (included) that bypasses the subwoofer, high-pass filter, and Sub Out. This allows your audio source signal to pass directly through the Temblor T10 to the full-range studio monitors, making comparing your mix with or without sub frequencies quick and easy. This helps to ensure your mix will sound good on a wide variety of systems. Additionally, the T10 features a polarity invert switch, as well as a ground-lift switch.

Versatile I/O Works With Any Setup
The Temblor T10 provides a choice of three input pairs: two sets of balanced inputs (XLR and 1/4” TRS) and one pair of RCA unbalanced inputs. Pairs of inputs are provided in order to accept a stereo signal from your audio source.

When both of the balanced connections are in use, the TRS inputs will take precedence over the XLR inputs. The RCA inputs will sum into either balanced connection.

You get two pairs of balanced outputs: XLR and 1/4” TRS. The full-range signal connected to the stereo inputs on the T10 is passed through to these outputs so you can connect them to your main left and right studio monitors. If the High Pass Filter switch is engaged, frequencies below 80 Hz are not sent from these outputs.

The T10 also has a balanced XLR output that sends the low-frequency signal from the low-pass filter to a second Temblor T10 for the ultimate in smooth low end.

PreSonus Temblor T10 Features:

  • Main Components:
    • 10" Front-firing, glass-composite low-frequency transducer
    • Front-firing bass-reflex acoustic port
  • Controls and Filters:
    • Input gain control (-30 dB to +6 dB, continuously variable)
    • Continuously variable low-pass filter (50 Hz to 130 Hz)
    • Built-in crossover
    • Switchable highpass filter removes frequency content below 80 Hz from the full-range signal sent from the Temblor outputs to the main monitors
    • Momentary footswitch (included) bypasses the subwoofer, high-pass filter, and Sub Out
    • Polarity invert
    • Ground-lift switch
  • Power and Safety:
    • 250 watt, Class AB amplification
    • Internal damping and heat sink
    • Integrated rubber feet for stable placement
  • Inputs and Outputs:
    • Left and right, balanced XLR and 1/4” TRS and unbalanced RCA main inputs
    • Left and right balanced XLR and 1/4” TRS outputs
    • XLR subwoofer output for connecting a second T10

PreSonus Temblor T10 Specifications:

  • Inputs:
    • 2x Balanced XLR
    • 2x Balanced 1/4" TRS
    • 2x Unbalanced RCA
  • Outputs:
    • 2x Balanced XLR (full-range with 80 Hz HPF option)
    • 2x Balanced 1/4" TRS (full-rante with 80 Hz HPF option)
    • 1x Balanced XLR (Sub Out)
  • Performance:
    • Frequency Response:  20 Hz - 200 Hz
    • Low Pass Filter Frequency:  50 Hz - 130 Hz (variable)
    • Signal-to-Noise Ratio:  > 98dB (A-weighted)
    • THD:  0.019% @ power < 160W
    • Amplifier Power:  250W Peak, 170W RMS
    • Power Consumption:  230W
    • Amplifier Type:  Class AB
    • Peak SPL at 1m:  113dB
    • Woofer:  10" glass-composite, front-firing
    • Acoustic Port:  Front-firing bass reflex
  • User Controls:
    • Input Gain Range:  -30 to +6 dB
    • Polarity Switch:  0° or 180°
    • Low Pass Filter Control:  50 Hz to 130 Hz
    • Ground Lift Switch:  On/Off
    • High Pass Filter Switch:  On/Off
    • Bypass Footswitch:  On/Off
  • Protection:
    • RF Interference
    • Output-Current Limiting
    • Over-Temperature
    • Turn-On/Off Transient
    • Subsonic Filter
    • External Mains Fuse
  • Power:  100 - 120V ~50/60 Hz or 220 - 240V ~50/60 Hz
  • Cabient:  Vinyl-laminated MDF
  • Dimensions (WxDxH):  12.6" x 15.75" x 15.75" (320mm x 400mm x 400mm)
  • Weight:  39.46 lbs (17.9 kg)

PreSonus Temblor T10
10" 250W Active Studio Subwoofer with Front-Firing Bass Reflex Port

OUR PART #  TEMBLOR-T10

Product Videos:

Product Information:

The PreSonus Temblor T10 is a 10", 250W active studio subwoofer with front-firing bass reflex port that is ideally suited for use with Eris, Sceptre, and Ceres BT series studio monitors. This subwoofer will complement full-range monitors without overshadowing them, extending the reach of your full-range system's low end with a musical and natural approach.

The Bottom Line is Great Sound
Powerful and musical, Temblor features high-quality components and design that enable it to deliver fast and accurate transient response, extending low frequencies without a hint of “tubbiness” or overshoot.

Designed for recording studios, the Temblor T10 is a front-firing active subwoofer with a 10-inch glass-composite driver, built-in crossover, high-temperature voice coil, and damped rubber surround. Its cabinet features a front-firing, bass-reflex acoustic port and optimized, resonance-suppressing internal bracing. The enclosure has integrated, gravity-calibrated rubber feet for stable placement.

In addition to outstanding accuracy and a frequency response that ranges from 20 Hz to 130 Hz, this combination of features enables the T10 to produce higher volume — up to 113 dB SPL — with less power than a sealed-box design. But make no mistake, the T10 has plenty of juice: 250 watts of Class AB power.

Customize Your System Until It's Just Right
The Temblor’s extensive user controls include input gain (-30 dB to +6 dB, continuously variable) and a continuously variable low-pass filter (50 Hz to 130 Hz) that let you create a seamless crossover transition between your full-range studio monitors and subwoofer for a more accurate listening environment.

A switchable high-pass filter removes frequency content below 80 Hz from the full-range signal sent from the Temblor’s outputs to the main monitors, avoiding destructive cancellation and reinforcement in the subwoofer’s upper range.

The result is a subwoofer that can be adjusted to perfectly complement not only PreSonus' Sceptre CoActual, Eris, and Ceres BT active studio monitors but virtually any studio monitor.

The T10 also features a momentary footswitch (included) that bypasses the subwoofer, high-pass filter, and Sub Out. This allows your audio source signal to pass directly through the Temblor T10 to the full-range studio monitors, making comparing your mix with or without sub frequencies quick and easy. This helps to ensure your mix will sound good on a wide variety of systems. Additionally, the T10 features a polarity invert switch, as well as a ground-lift switch.

Versatile I/O Works With Any Setup
The Temblor T10 provides a choice of three input pairs: two sets of balanced inputs (XLR and 1/4” TRS) and one pair of RCA unbalanced inputs. Pairs of inputs are provided in order to accept a stereo signal from your audio source.

When both of the balanced connections are in use, the TRS inputs will take precedence over the XLR inputs. The RCA inputs will sum into either balanced connection.

You get two pairs of balanced outputs: XLR and 1/4” TRS. The full-range signal connected to the stereo inputs on the T10 is passed through to these outputs so you can connect them to your main left and right studio monitors. If the High Pass Filter switch is engaged, frequencies below 80 Hz are not sent from these outputs.

The T10 also has a balanced XLR output that sends the low-frequency signal from the low-pass filter to a second Temblor T10 for the ultimate in smooth low end.

PreSonus Temblor T10 Features:

  • Main Components:
    • 10" Front-firing, glass-composite low-frequency transducer
    • Front-firing bass-reflex acoustic port
  • Controls and Filters:
    • Input gain control (-30 dB to +6 dB, continuously variable)
    • Continuously variable low-pass filter (50 Hz to 130 Hz)
    • Built-in crossover
    • Switchable highpass filter removes frequency content below 80 Hz from the full-range signal sent from the Temblor outputs to the main monitors
    • Momentary footswitch (included) bypasses the subwoofer, high-pass filter, and Sub Out
    • Polarity invert
    • Ground-lift switch
  • Power and Safety:
    • 250 watt, Class AB amplification
    • Internal damping and heat sink
    • Integrated rubber feet for stable placement
  • Inputs and Outputs:
    • Left and right, balanced XLR and 1/4” TRS and unbalanced RCA main inputs
    • Left and right balanced XLR and 1/4” TRS outputs
    • XLR subwoofer output for connecting a second T10

PreSonus Temblor T10 Specifications:

  • Inputs:
    • 2x Balanced XLR
    • 2x Balanced 1/4" TRS
    • 2x Unbalanced RCA
  • Outputs:
    • 2x Balanced XLR (full-range with 80 Hz HPF option)
    • 2x Balanced 1/4" TRS (full-rante with 80 Hz HPF option)
    • 1x Balanced XLR (Sub Out)
  • Performance:
    • Frequency Response:  20 Hz - 200 Hz
    • Low Pass Filter Frequency:  50 Hz - 130 Hz (variable)
    • Signal-to-Noise Ratio:  > 98dB (A-weighted)
    • THD:  0.019% @ power < 160W
    • Amplifier Power:  250W Peak, 170W RMS
    • Power Consumption:  230W
    • Amplifier Type:  Class AB
    • Peak SPL at 1m:  113dB
    • Woofer:  10" glass-composite, front-firing
    • Acoustic Port:  Front-firing bass reflex
  • User Controls:
    • Input Gain Range:  -30 to +6 dB
    • Polarity Switch:  0° or 180°
    • Low Pass Filter Control:  50 Hz to 130 Hz
    • Ground Lift Switch:  On/Off
    • High Pass Filter Switch:  On/Off
    • Bypass Footswitch:  On/Off
  • Protection:
    • RF Interference
    • Output-Current Limiting
    • Over-Temperature
    • Turn-On/Off Transient
    • Subsonic Filter
    • External Mains Fuse
  • Power:  100 - 120V ~50/60 Hz or 220 - 240V ~50/60 Hz
  • Cabient:  Vinyl-laminated MDF
  • Dimensions (WxDxH):  12.6" x 15.75" x 15.75" (320mm x 400mm x 400mm)
  • Weight:  39.46 lbs (17.9 kg)
