Intelix DIGI-P123
12 Input x 3 Output Multi-Format Presentation Switcher

OUR PART #:  DIGI-P123

The Intelix DIGI-P123 allows the integration of multiple analog and digital devices into a high-definition environment.
Learn More
Our Price: $1,619.96
List Price: $1,799.95
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix DIGI-P123
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Intelix DIGI-P123 allows the integration of multiple analog and digital devices into a high-definition environment.  It allows selection of twelve different sources, and will simultaneously scale the selected video to HDMI, VGA, and HDBaseT outputs. The unit features four HDCP compliant HDMI inputs, four VGA inputs, and four analog video inputs. There are five fixed output resolutions to pick from, and several aspect ratio modes, which will ensure your content is displayed properly. The HDBaseT output will allow you to extend audio, video, and control signals up to 70m away.  The DIGI-P123 offers several unique audio options designed to simplify your installation. All audio inputs are embedded into the HDMI and HDBaseT streams, so you can use your display speakers for audio. Additionally, line level and 8ohm speaker outputs can be used for reinforcement. A balanced input is provided (line or microphone level) which is mixed with the source audio to provide voice lift capabilities; while the volumes of the mic and source can be individually controlled.

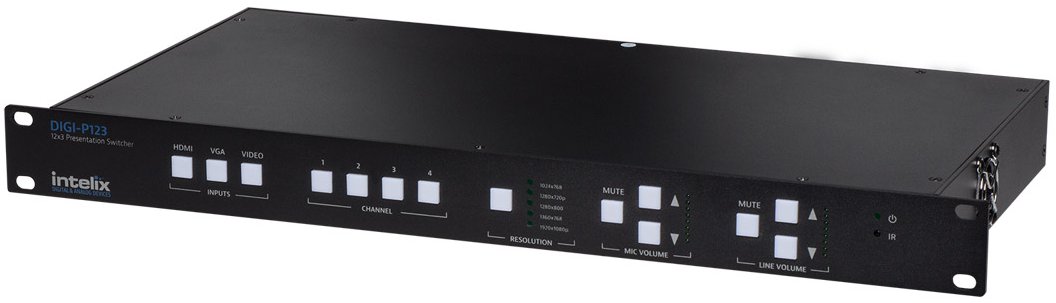

The DIGI-P123 can be controlled in many different ways. The front panel offers source selection, output resolution, and volume/mute control, as well as an IR window for use with the included remote control. Third party control systems can utilize TCP/IP, RS232 rear panel, RS232 extended (with a compatible HDBaseT receiver), and front panel IR control. Additionally, a web GUI (Graphic User Interface) allows users to control the unit through a browser on their computer.

Intelix DIGI-P123 Features:

  • Four HDMI, four VGA, one S-video, two composite video and one component video input
  • HDMI, VGA, and HDBaseT output
  • 70m (230') max distance
  • Mic and Line level mixing
  • Integrated stereo amplifier
  • Audio de-embedding
  • Output scaling to [5] fixed resolutions (XGA, WXGA, 720p, 1080p, 1360x768)
  • Front panel, IR, TCP/IP, and RS232 control
  • On-screen menuing
  • Internal power supply

Intelix DIGI-P123 Specifications:Please see the specification sheet located under the "Documentation" tab.
