Gefen GTB-HD-DCR-BLK ToolBox HD Daisy Chain Extender System Receiver Unit

OUR PART #: GTB-HD-DCR-BLK

Copied to clipboard

The Geffen GTB-HD-DCR-BLK is the receiver unit of the ToolBox HD system, the sender and splitter must be purchased separately. ...Read more

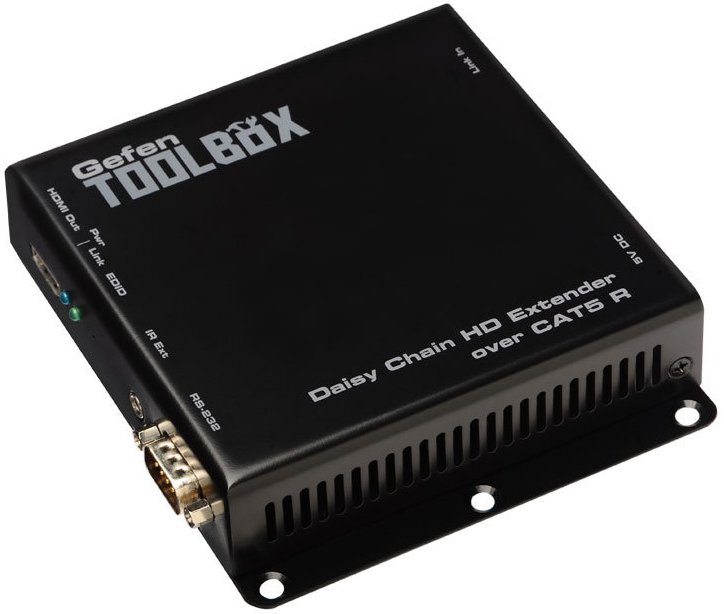

Gefen GTB-HD-DCR-BLK ToolBox HD Daisy Chain Extender System Receiver Unit Image 1
Gefen GTB-HD-DCR-BLK ToolBox HD Daisy Chain Extender System Receiver Unit Image 2
Gefen GTB-HD-DCR-BLK ToolBox HD Daisy Chain Extender System Receiver Unit Image 3
Gefen GTB-HD-DCR-BLK ToolBox HD Daisy Chain Extender System Receiver Unit
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Geffen GTB-HD-DCR-BLK is the receiver unit of the ToolBox HD system, the sender and splitter must be purchased separately. Distribute video to multiple displays in series using Video Over IP techniques with Gefen's new Daisy Chain HD System. Connect up to 30 displays using CAT-5e cables in a daisy chain mode going from one display to the next, and up to 100 displays when using a combination of Daisy Chaining and Tree Topology distribution. The system utilizes three modules: The Sender (GTB-HD-DCS), which connects to the HD source, the Splitter (GTB-HD-DCSP) module, which connects to the Sender unit using a CAT-5e cable, and the Receiver (GTB-HD-DCR) unit which connects via CAT-5e cable to the Sender or Splitter, and via HDMI cable to the display. The Splitter unit also has an HDMI output to connect a display.

The Gefen ToolBox HD Daisy Chain System simplifies extension of HDMI and control signals to create an elaborate network of displays with the ability to route IR-control back from each display location to the source. RS-232 commands can also be distributed over this daisy-chained network to execute commands such as turning all displays on or off. Each CAT-5e cable between the Source, Splitter, and Receiver units can be extended up to 330 (100 meters). Up to 100 Hi-Def displays at resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA) are possible. A low latency of less than a frame assures that all displays reproduce audio and video in perfect sync.

This easy-to-install and easy-to-expand system is a great fit for Digital Signage applications and also for commercial entertainment solutions (such as in bars, restaurants, and stores) that play back the same content using multiple screens.

Gefen Inc. GTB-HD-DCR-BLK Features:

  • Extend, split, and daisy-chain HDMI, IR, and RS-232 using CAT-5e cables (each CAT-5e (or better) cable run up to 330 feet/ 100 meters)
  • Supported HDMI Features: Resolutions up to 1080p Full HD and 1920 x1200 (WUXGA), 12-bit Deep Color, x.v. Color , LPCM 7.1 Audio, Dolby TrueHD,DolbyDigital® Plus, and DTS-HD® Master Audio, 3DTV pass-through, LipSync pass-through
  • Guaranteed latency of less than one frame (16.7 to 20ms) assures synchronized A/V output from all displays
  • EDID learning provides for rapid integration of source and displays
  • Supports up to 100 Hi-Def displays
  • Field-upgradable firmware
  • Locking power supply connectors
  • Wall or under-shelf mountable

Gefen Inc. GTB-HD-DCR-BLK Specifications:

  • Maximum Pixel Clock: 225 MHz
  • Video Input Connector (Sender): (1) HDMI Type A 19-pin, female
  • Video Output Connector (Receiver/Splitter): (1) HDMI Type A 19-pin, female
  • IR Out connector (Sender): (1) 3.5mm mini-mono jack
  • IR Extender connector (Receiver/Splitter): (1) 3.5mm mini-stereo jack
  • RS-232 Connector: Sender (1) DB-9, female, Splitter/Receiver: (1)DB-9,male
  • Link Input connector (Receiver/Splitter): (1) RJ-45, shielded
  • Link Output connector (Sender): (1) RJ-45, shielded, (Splitter): (2)RJ-45,shielded
  • Power Indicator (Sender/Splitter/Receiver): (1) LED, blue
  • Link Indicator (Sender/Splitter/Receiver): (1) LED, green
  • Power Supply (Sender/Splitter/Receiver): 5V DC, locking
  • Power Consumption (Sender/Splitter/Receiver): 10W (max.)
  • Dimensions (W x H x D) (Sender/Receiver): 5.2" x 1.1" x 4.5" (132mm x28mmx 113mm)
  • Dimensions (W x H x D) (Splitter): 5.2" x 1.1" x 5" (132mm x 28mm x 128mm)
  • Shipping Weight: Sender/Receiver: 2 lbs (0.91 kg), Splitter: 2.2lbs(1kg)

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
