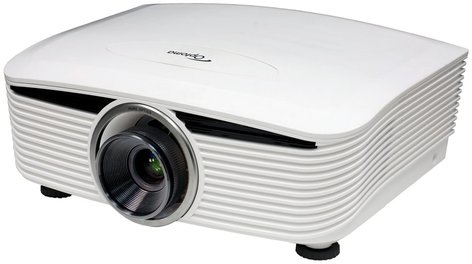

Optoma W505
5000 Lumens ProScene WXGA 3D DLP Projector without Lens

OUR PART #:  W505-OPT

The Optoma W505 ProScene projector was designed to deliver extraordinary performance and superior reliability to satisfy your large venue projector install needs.
Learn More
Optoma W505-OPT 1
Optoma W505-OPT 2
Optoma W505-OPT 3
Optoma W505-OPT 4
Our Price: $2,499.00
List Price: $4,399.00
You save 43%!
Write the first review.
Optoma W505
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Projection Calculator

The Optoma W505 ProScene projector was designed to deliver extraordinary performance and superior reliability to satisfy your large venue projector install needs. Its powerful 5200 lumens bright output combined with a remarkable 2,000:1 contrast ratio deliver amazingly bright, color-rich presentations with sharp, clear text and graphics. The Optoma W505 features one the most comprehensive input panels and most advanced feature set its class to ensure the projector will satisfy your current and future needs. HDMI, display port and DVI for digital connectivity, 2 VGA inputs and one VGA out for analog content, vertical and horizontal lens shift, discrete audio inputs, 12 volt trigger for maximum installation convenience. Just a few of the many outstanding features on this remarkable product.

Includes:

  • W505 ProScene Projector
  • AC power cord
  • VGA cable
  • Remote control with batteries
  • CD-ROM user's manual
  • Quick start card
  • Warranty card

Optoma W505 ProScene Projector Features:

  • Bright crystal clear images for large venue applications
  • Unsurpassed color accuracy for the most impactful presentations
  • Vertical and horizontal lens shift for ease of installation
  • Optional lenses for maximum installation flexibility

Optoma W505 ProScene Projector Specifications:

  • Display Technology: Single 0.65" DarkChip3™ DLP® Technology by Texas Instruments™
  • Native Resolution: WXGA (1280 x 800)
  • Maximum Resolution: WUXGA (1920 x 1200)
  • Brightness: 5200 lumens
  • Contrast Ratio: 2,000:1 (full on/full off)
  • Displayable Colors: 1.07 Billion
  • Lamp Life and Type: 3500/1500 Hours (STD/bright) 370W P-VIP
  • Projection Method: Front, rear, ceiling mount, table top
  • Keystone Correction: ±30° Vertical
  • Uniformity: 85%
  • Aspect Ratio: 16:10 Native, 4:3 and 16:9 compatible
  • Lens Shift:
    • Vertical -30% to +50% image height
    • Horizontal: ±10% image width
  • Projection Lens:
    • BX-DL080 Short throw 0.81:1
    • BX-DL200 Standard throw 1.62–2.03:1
    • BX-DL300 Long throw 2.02–3.03:1
  • Audio: Two 3-Watt speakers
  • Noise Level: 37dB
  • Remote Control: Fully-featured IR remote with mouse and laser pointer
  • Operating Temperature: 41–113°F (5–45°C), 85% max humidity, adjustable fan speed for high altitude application
  • Power Supply: AC Input 100–240V, 50–60Hz, auto-switching
  • Power Consumption: 480W max (bright), 330W (STD), <0.5 Watt (standby)
  • Computer Compatibility: WUXGA, UXGA, SXGA+, WXGA, SXGA, XGA, SVGA, VGA resized, VESA, PC and Macintosh compatible
  • Video Input Compatibility: NTSC, PAL, SECAM, SDTV (480i/576i), EDTV (480p/576p, HDTV (720p, 1080i/p)
  • 3D Compatibility: Supports all HDMI 1.4a mandatory 3D format, side-by-side format and top and bottom format
  • Vertical Scan Rate: 24–85kHz, 120Hz, 144Hz
  • Horizontal Scan Rate: 15–91kHz
  • User Controls: Complete on-screen menu adjustments in 26 languages
  • I/O Connectors: Display port, HDMI, DVI-D w/HDCP, two VGA-in, VGA-out, S-video, composite video, component video, five BNC(RGBHV/YPbPr), two stereo mini jack audio-in, two RCA stereo audio-in, audio-out, 3D VESA port, wired remote, USB-A charging port, RS-232C, RJ45, and 12V trigger
  • Monitor Loop Through:
    • Monitor: D-Sub 15 pin VGA output (functional in both normal and standby modes
    • Audio: VAO audio out, HDMI VAO audio out supported (VAO in normal mode, fixed in Standby)
  • Security:  Kensington® lock port, security bar and keypad lock
  • Weight without lens: 18.9 lbs (8.9 kg)
  • Dimensions: 16.9" W x 7.1" H x 13.4" D (430 x 181 x 340 mm)
  • Warranty: 3-Year Optoma Express Service, 1-Year on Lamp
  • Optional Accessories:  Lens throw options, wireless dongle, ceiling mount, HDMI cable, Optoma screens
  • Accessory Part Numbers:
    • Lamp: BL-FP370A
    • Mount: BM-5001U
    • Remote: BR-7003N
    • Wireless VGA Dongle: BI-EXTBG03
      RF 3D glasses: BG-ZF2100GLS
    • RF 3D emitter: BG-BC100B
    • DLP® Link™ 3D glasses: BG-ZD301
  • UPC:  796435 41 829 8
