Sony AWS-750
Anycast Touch Live Content Producer


Our Price: $13,097.02
List Price: $18,300.00
You save 28%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

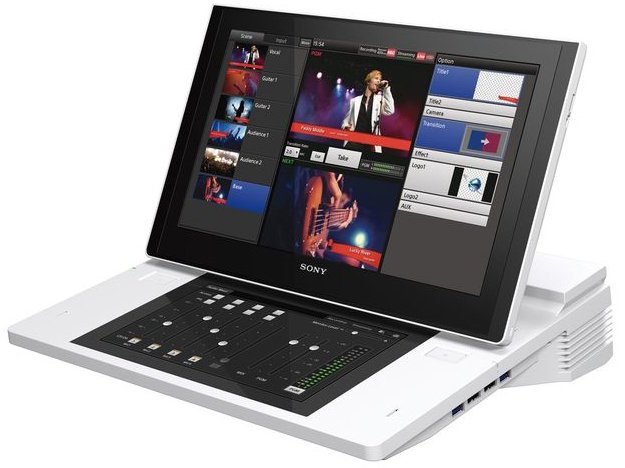

The Sony AWS-750 Anycast Touch is a compact, affordable, all-in-one live production solution with intuitive touch panel operation. Anycast Touch instantly makes live production accessible to anyone who requires live broadcasting or webcasting. The portable system is designed to be incredibly easy to use. With no previous live production experience required, it is ideal for a wide range of users, such as houses of worship, educational and government institutions, corporate organizations and event management companies. And as you can expect from Sony, Anycast Touch offers clear and detailed pictures for live production.

Anycast Touch eliminates the need for any of the hardware typically required for professional live streaming. It includes a video switcher, streaming encoder, video recorder, audio mixer, clip player, remote camera controller and titler that supports ten languages. The Anycast Touch allows for seamless video mixing between a number of video sources in a variety of formats. You can record ten hours of video and audio on the internal SSD, create and add graphics elements to the image, control connected remote BRC cameras (pan, tilt and zoom), perform multiple effects and wipes to enhance the production and instantly stream the output over a WAN or the Internet. Additionally, a fully functioned five-channel audio mixer is provided for a separate audio mix.

The Anycast Touch enables intuitive, easy operation, and eliminates the cumbersome setup and signal adjustment process typically required when connecting various devices. Users can also store the setup information of all attached video sources, such as the camera input, title data, and transition effects. Additionally, scene lists can be prepared beforehand, allowing users to simply switch scenes during an event with just a single tap.


  • Video Switcher -Up to sixinputs including HD/SD-SDI, HDMI, RGB, and/or Composite inputs
  • Audio Mixer -Up to five audioinputs can be mixed using the secondary touch panel.
  • Real-time Web Streaming -Flash® H.264 web streaming to an external streamingserver of program or auxiliary output.
  • Program Recording -Record aminimum of 10 hours of PGM output to the built-in solid state drive (SSD) inhigh resolution
  • Text and Title Character Generator -Operators can easily and quickly generate text, in 10languages, to overlay onto the program output with the built-in touch-screenkeyboard on the secondary touch panel.
  • Pan-Tilt-Zoom Camera Control -The Anycast Touch allows operators to easily control oneor more compatible pan/tilt/zoom cameras at remote locations.
  • Clip Playback -Use recordedand imported content as a video source during live productions.
  • Scene Operation -Operators cancreate up to 99 pre-built templates that incorporate titles, logos, transitioneffects and different sources which can be called upon with a simple touch ofa button.
  • High-Resolution Display Incorporated -All-in-one style system displayssources for input and streaming for simple operation.



  • Video Formats:
    • 1080i/59.94Hz
    • 1080i/50Hz
    • 480i/59.94Hz
    • 576i/50Hz
  • Video Processing: 10 bit

Inputs and Outputs:

  • Video Input:
    • 4x HD/SD-SDI (BNC)
    • 2x HDMI (TypeA)* HDCP not supported
    • 2x RGB (D-Sub 15-pin Female)
    • 2x Composite (RCA)
  • Video Output:
    • PGM
    • 2x HD/SD-SDI (BNC)
    • PGM/AUX
    • 1x HD-SDI (BNC)
    • 1x HDMI (Type A) x1
    • 1x RGB (D-Sub 15-pin Female)
  • Reference Outputs:
    • 1x BNC Type
    • Analog blackburst signal
    • NTSC: 0.286 Vp-p x/- 2dB, 75 Ohm, negative sync
    • PAL: 0.3 Vp-p x/- 2dB, 75 Ohm, negative sync

Image Effect:

  • Effect:
    • 2 Titles
    • 2 Logos
    • 2 Picture-in-Picture


  • GPI/TALLY Output:
    • 9-pin in-line connector
    • Input x4: TTL
    • Output x4: Open connector
  • VISCA Camera Control:
    • Up to 7 Cameras
    • SonyVISCA Camera commands are supported.
    • 5-pin in-line connector / RS-422 equivalent
  • LAN:
    • 2x RJ45 Type
    • 100/1000 base-TX


  • Power Requirements: DC 19.5V 7.5A
  • Power Consumption: 160 W
  • Operating Temperature: 5 to 35 °C (42 to 95 °F)
  • Dimensions: 16.34" x 3.74" x 13.23" (415 x 95 x336 mm)
  • Weight: 13.68 lbs (6.2 kg)
