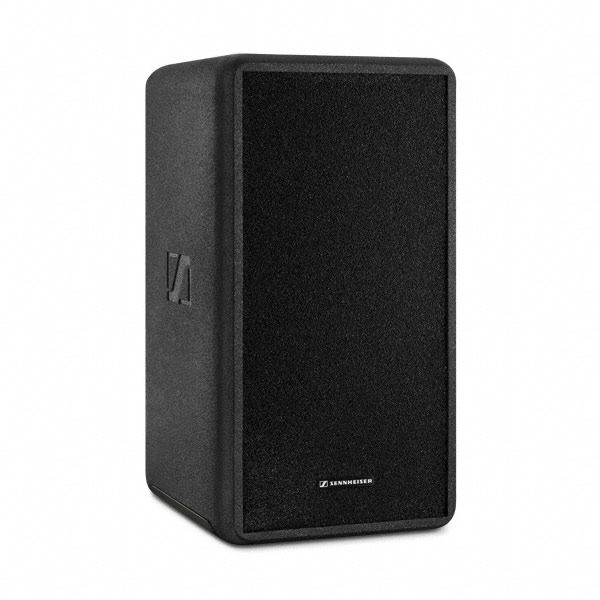

Sennheiser LSP 500 PRO
Portable Battery Powered PA with Integrated Wireless


The Sennheiser LSP 500 PRO is a wireless two-way audio system for professional use.
Learn More
Our Price: $2,700.00
List Price: $3,380.00
You save 20%!
Write the first review.
Sennheiser LSP 500 PRO
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Sennheiser LSP 500 PRO is a wireless two-way audio system for professional use. It has been designed to address audiences at indoor and outdoor events without the need of any power or audio cables. The LSP 500 PRO allows you to install up to three receivers for wireless microphones. You can also play music wirelessly via a Bluetooth connection. Alternatively, you can use the integrated media player to play music from your USB storage device. For larger events you can send the sum signal of one LSP 500 PRO via a wireless transmitter to other LSP 500 PRO devices. The LSP 500 PRO is remote controllable via an app for tablets (currently supported: iPad), which serves as a mixing console and permits the control of up to 20 LSP 500 PRO simultaneously.

NOTE: Though shown in the picture above, the LSP 500 PRO does NOT come with any wireless modules.

Sennheiser LSP 500 PRO Features:

  • Up to 20 LSP 500 PRO can be remote controlled by iPad (in a wireless network)
  • Bluetooth audio streaming
  • Mixing function for:
    • up to 3 wireless microphones
    • integrated USB player/recorder
    • professional 2-way speaker
  • Battery powered
  • 2 wired audio inputs
  • 3x 1/2 19" slots for accommodating ew G3 receivers, one slot can alternatively accommodate an ew G3 transmitter

Sennheiser LSP 500 PRO Specifications:


  • Dimensions: 11.42" W x 21.65" H x 12.60" D
  • Housing material: crosswise glued plywood, polyurethane coating
  • Front design: acoustic foam, black
  • Bottom plate: impact protection plastic shield with rubber feet
  • Handle: integrated plastic coated carry handle
  • Pole mount: 36 mm (1.42"), angle adjustable up to +/-13.5 ° in steps of 4.5 °
  • Weight (without wireless receivers, with battery packs): approx. 13.6 kg (30 lb.)
  • Color: black


  • Acoustic design: 2-way system, closed box design
  • Drivers woofer: 8"
  • tweeter: ¾" compression driver
  • Sound pressure level: max. 110 dB SPL (fullspace)
  • Frequency response: 65 Hz to 18 kHz (-10 dB)
  • Dispersion (h x v): 80 ° x 60 ° (- 6 dB)

Sound processing

  • Amplifier: Class D
  • Output power: 55 W continuous, 120 W peak
  • Equalizer: semi-parametric, 3-band Connectivity
  • MIC input: XLR-3F - ¼" (6.3 mm) jack combo socket, switchable phantom power 48 V
  • AUX IN input: RCA stereo socket
  • LINE OUT output: RCA stereo socket
  • LINK IN input: XLR-3F
  • LINK OUT output: XLR-3M
  • USB port: USB 2.0
  • USB file formats playback: mp3, wav, aac, flac
  • recording: wav
  • Bluetooth interface: A2DP with aptX®
  • WLAN interface: IEEE 802.11b/g
  • Encryption: WPA2

Slot 1/2/3

  • for receiver: DC connector: hollow jack plug (pin 1.7mm, sleeve 5.5 mm);
  • output connector: ¼" (6.3 mm) plug, data connector: RJ 45


Slot 1

  • for transmitter: DC connector: hollow jack plug (pin 1.7 mm, sleeve 5.5 mm);
  • input connector: 1/4" (6.3 mm) jack plug

Power supply

  • Mains voltage / mains frequency: 100 to 240 V~, 50/60Hz
  • Battery packs: 2x Sennheiser LBA 500, Li-Ion
  • Battery voltage / nominal charge: 14.4 V / 4.4 Ah
  • Operating time: approx. 6 h speech (approx. 3 h per battery pack)
  • Charging time: approx. 5 h (approx. 2.5 h per battery pack)


  • Operation: 0 °C to 50 °C (32 °F to 122 °F)
  • Storage: -20 °C to 70 °C (- 4 °F to 158 °F)

Relative air humidity

  • Operation: 10 to 80 %
  • Storage: 10 to 90 %
