EAW-Eastern Acoustic Wrks VFM109
10" 2-Way Full Range Stage Monitor in White

OUR PART #:  VFM109-WHITE

The VFM109 two-way stage monitor loudspeaker system includes a direct-radiating, vented, 10" LF cone transducer and a 1" exit compression driver loaded with a large...
Learn More
Our Price: $856.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

EAW-Eastern Acoustic Wrks VFM109
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VFM109 two-way stage monitor loudspeaker system includes a direct-radiating, vented, 10" LF cone transducer and a 1" exit compression driver loaded with a large, square, user-rotatable 90x60 coverage pattern horn.

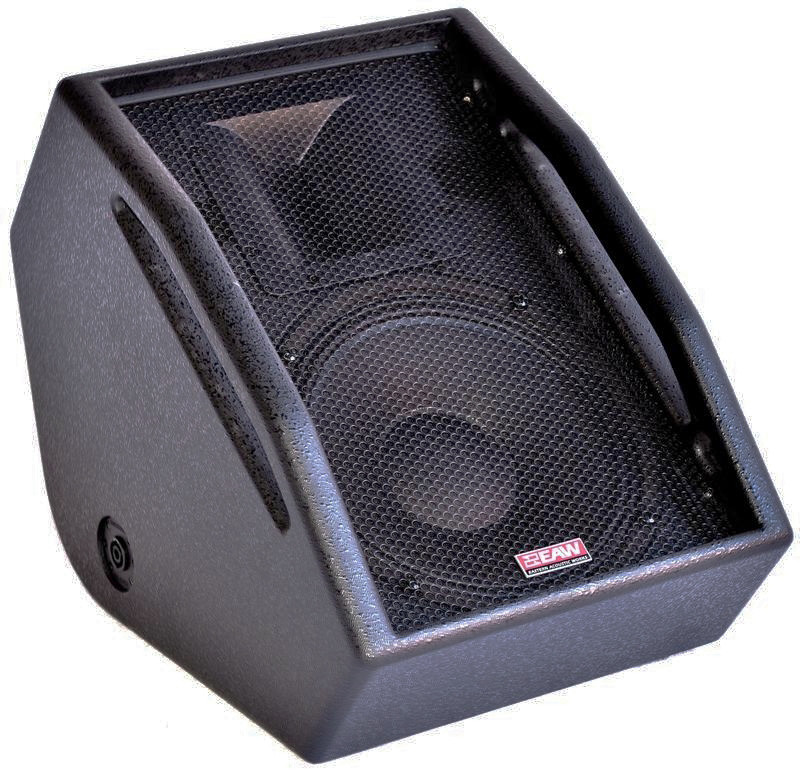

Note: The image shown is for illustrative purposes only. Actual color is WHITE.

Because VF Series full range systems (VFR/VFM) use HF sections similar to those developed for the MK Series, EAW engineers could employ the same revolutionary “beamwidth-matching” internal passive crossover/filter networks that set the MK Series apart from all other two-way systems. If powered by an EAW-specified amplifier or via a UX Series digital signal processor, the VFM109 can enjoy the benefits of EAW Focusing, a technology that eliminates the anomalies inherent in the time domain of any loudspeaker.

The VFM109 features a classic stage monitor design with NL4 connectors located on both sides for easy loop-through connections. They also include a pole mount cup should they need to be used as small PA mains. Engineers integrated the handles into the enclosure design, giving the low-profile enclosure a sleek, clean appearance.

Applications: Band PA, DJ System, Dance Club, Schools, Houses of Worship, Rental Systems, Mobile Churches, Auditoriums

Features:

  • Two-way, full range loudspeakers
  • Classic stage monitor design
  • Pole mount cup for use as main system
  • Large, user-rotatable horns for optimized pattern control
  • Beamwidth-matching crossover point
  • Long-lasting reliability

Specifications:

  • Stage monitor 2-way Speaker
  • LF: 10-in cone, vented
  • HF: 1-in exit compression driver, horn-loaded Operating Range 70Hz to 20KHz
  • Axial Sensitivity (dB SPL): 94 Beamwidth 90°H x 60°V
  • Power Handling 500W (8 ohms)
  • Output 127dB SPL (Peak)
  • Weight 15.1 Kg / 33.3 lbs

Dimensions :

  • Height (stage) 378 mm / 14.9"
  • Width 317 mm / 12.5"
  • Depth 454 mm / 17.9"
  • Floor Angle (degrees up): 37 Floor Angle (degrees up): 37
