EAW VFR129i 12" 2-Way 500W at 8 Ohms Passive Loudspeaker with 90x60 Dispersion, Black

OUR PART #: VFR129I-BLACK MFR #: 2040812-90

Copied to clipboard

The EAW VFR129i two-way, full range loudspeaker system includes a direct radiating, vented... ...Read more

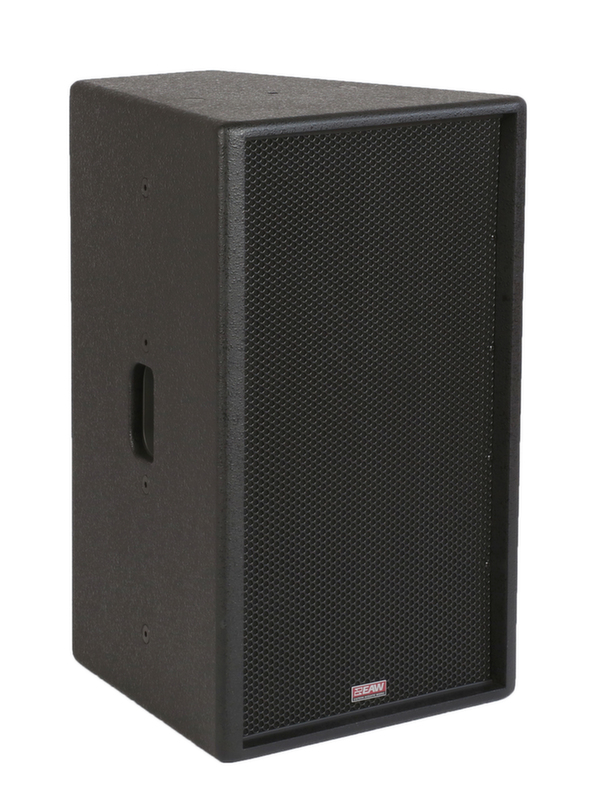

EAW VFR129i 12" 2-Way 500W At 8 Ohms Passive Loudspeaker With 90x60 Dispersion, Black Image 1
EAW VFR129i 12" 2-Way 500W At 8 Ohms Passive Loudspeaker With 90x60 Dispersion, Black Image 2
EAW VFR129i 12" 2-Way 500W At 8 Ohms Passive Loudspeaker With 90x60 Dispersion, Black
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The EAW VFR129i two-way, full range loudspeaker system includes a direct radiating, vented, 12" LF cone transducer and a 1" exit / 1.75" voice coil HF compression driver loaded with a large, square, user-rotatable 90°×60° or 60°×45° coverage pattern horn built on the classic MK Series horns. These horns deliver exceptional high frequency dispersion, and their square shape lets users “rotate the enclosure around the horn” to maintain directivity in a horizontal configuration. The standard horn is field replaceable with an optional 60°×45° horn. This change incorporates a passive filter adjustment to maintain consistent acoustic response and smooth beamwidth throughout the crossover region.

Because VF Series full range systems (VFR/VFM) use HF sections similar to those developed for the MK Series, EAW engineers could employ the same revolutionary “beamwidth-matching” internal passive crossover/filter networks that set the MK Series apart from all other two-way systems. If powered by an EAW-specified amplifier or via a UX Series digital signal processor, the VFR129i can enjoy the benefits of EAW Focusing, a technology that eliminates the anomalies inherent in the time domain of any loudspeaker.

The VFR129i black version includes traditional portable features such as a pole-mount cup, parallel NL4 4-terminal connector, barrier strip connector, an optional transformer and handles that accept accessory covers for permanent installation. The white, installation-only versions omit handles and the pole-mount cup but include NL4 connector, barrier strip connector, an optional transformer, and multiple mounting points. The new design leaves the enclosure sides completely smooth and attractive. Optional rigging hardware is available for preconfigured arrays with VFS sub bass systems.

EAW VFR129i Features:

  • Two-way, full range loudspeakers
  • Beamwidth-matching crossover point
  • Large, user-rotatable horn for optimized pattern control
  • Easy lift handles (Black version only)

EAW VFR129i Specifications:

  • Subsystem:
    • Transducer: LF 1x 12-in cone; HF 1x 1-in exit, 1.75-in voice coil compression driver
    • Loading: LF Vented; HF Horn-loaded
  • Operating Mode:
    • Amplifier Channels: Single-amp LF/HF
    • External Signal Processing: High pass filter
  • Operating Range (-10 dB): 50 Hz - 20 kHz
  • Axial Sensitivity (1W @ 1m, Full Range Passive): 96 dB SPL
  • Power Handling/Impedance (Full Range Passive): 500 Watts @ 8 Ohms
  • Calculated Maximum Output Peak (Full Range Passive): 129 dB SPL
  • Calculated Maximum Output Long Term (Full Range Passive): 123 dB SPL
  • Nominal Coverage: 90° H x 60° V
  • Subsystems:
    • LF: 12" cone, vented
    • HF: 1" exit compression driver, horn-loaded
