EAW VFR69I-WHITE 6" 2-Way Passive Speaker in White

The VFR69i two-way, full range loudspeaker system includes a directradiating, vented, 6" LF cone transducer and a 1" exit / 1.25" voice coil HF compression driver loaded with a large, square, userrotatable 90x50 coverage pattern horn built on the classic MK Series horns. These horns deliver exceptional high frequency dispersion, and their square shape lets users “rotate the enclosure around the horn” to maintain directivity in a horizontal configuration.

Because VF Series full range systems (VFR/VFM) use HF sections similar to those developed for the MK Series, EAW engineers could employ the same revolutionary “beamwidth-matching” internal passive crossover/filter networks that set the MK Series apart from all other two-way systems. If powered by an EAW-specified amplifier or via a UX Series digital signal processor, the VFR69i can enjoy the benefits of EAW Focusing, a technology that eliminates the anomalies inherent in the time domain of any loudspeaker.

The VFR69i white, installation only versions omit handles and the pole-mount cup but include NL4 connector, barrier strip connector, an optional transformer, and multiple mounting points.

Features:

• Two-way, full range loudspeakers
• Beamwidth-matching crossover point
• User-rotatable horn for optimized pattern control

Specifications:

• Operating Range (-10 dB, Hz): 70 -20k
• Axial Sensitivity (1W @ 1m, dBSPL): Full Range Passive: 89
• Power Handling / Impedance (Watts @Ohms): Full Range Passive: 250 @ 8
• Calculated Maximum Output Peak (dBSPL): Full Range Passive: 119
• Calculated Maximum Output Long Term (dBSPL): Full Range Passive: 113
• Nominal Coverage (degrees)
  • Horizontal: 90
  • Vertical: 50
• Subsystems
  • LF: 6-in cone, vented
  • HF: 1-in exit compression driver, horn-loaded
• Powering: Full range
• Dimensions (inches/millimeters)
  • Height: 14.8"/375mm
  • Width (front): 8.88"/225.5mm
  • Width (rear): 6.1"/155mm
  • Depth: 8.4"/214mm
  • Trap. Angle (degrees per side): 10
• Weights (pounds/kilogram)
  • Net: 15lbs/6.8

Note:

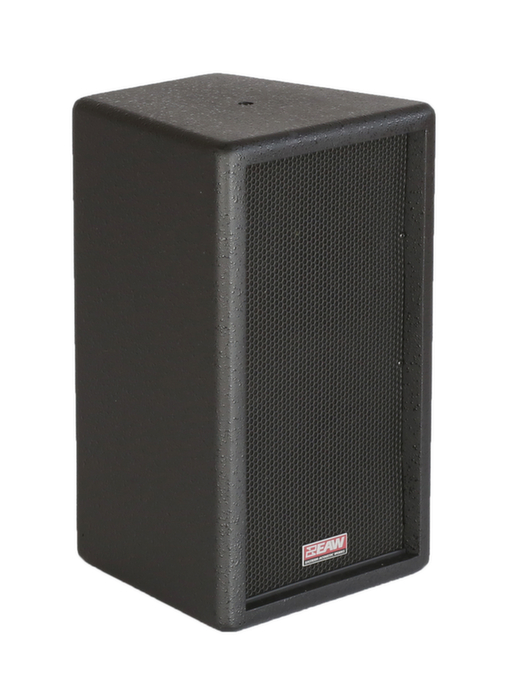

This image is for illustrative purposes only. Actual color is WHITE. For more information please contact your Full Compass Sales Pro.
