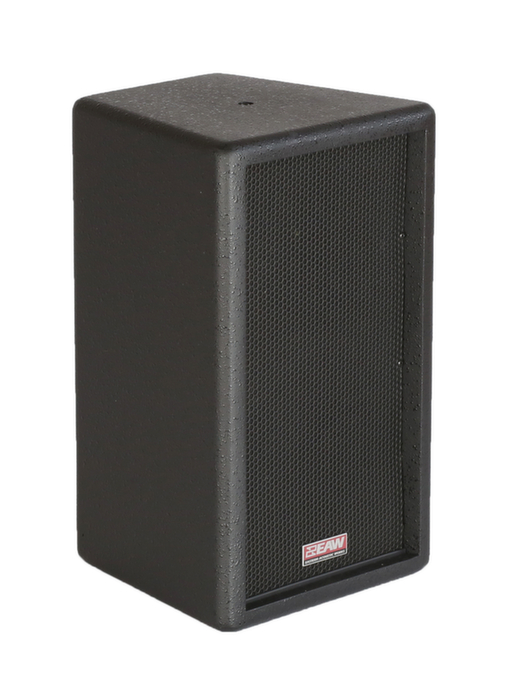

EAW VFR69i 6" 2-Way Passive Speaker, Black

The VFR69i two-way, full range loudspeaker system includes a directradiating, vented, 6" LF cone transducer and a 1" exit / 1.25" voice coil HF compression driver loaded with a large, square, userrotatable 90x50 coverage pattern horn built on the classic MK Series horns. These horns deliver exceptional high frequency dispersion, and their square shape lets users “rotate the enclosure around the horn” to maintain directivity in a horizontal configuration.

Because VF Series full range systems (VFR/VFM) use HF sections similar to those developed for the MK Series, EAW engineers could employ the same revolutionary “beamwidth-matching” internal passive crossover/filter networks that set the MK Series apart from all other two-way systems. If powered by an EAW-specified amplifier or via a UX Series digital signal processor, the VFR69i can enjoy the benefits of EAW Focusing, a technology that eliminates the anomalies inherent in the time domain of any loudspeaker.

The VFR69i black version includes traditional portable features such as a pole-mount cup, parallel NL4 4-terminal connector, barrier strip connector, an optional transformer and handles that accept accessory covers for permanent installation.

Features:

• Two-way, full range loudspeakers
• Beamwidth-matching crossover point
• User-rotatable horn for optimized pattern control
• Easy lift handles (Black version only)

Specifications:

• Operating Range (-10 dB, Hz): 70 -20k
• Axial Sensitivity (1W @ 1m, dBSPL): Full Range Passive: 89
• Power Handling / Impedance (Watts @Ohms): Full Range Passive: 250 @ 8
• Calculated Maximum Output Peak (dBSPL): Full Range Passive: 119
• Calculated Maximum Output Long Term (dBSPL): Full Range Passive: 113
• Nominal Coverage (degrees): Horizontal: 90/ Vertical: 50
• Subsystems: LF: 6-in cone, vented/ HF: 1-in exit compression driver, horn-loaded
• Powering: Full range
• Dimensions (inches/millimeters)
  • Height: 14.8"/375mm
  • Width (front): 8.88"/225.5mm
  • Width (rear): 6.1"/155mm
  • Depth: 8.4"/214mm
  • Trap. Angle (degrees per side): 10
• Weights (pounds/kilogram)
  • Net: 15lbs/6.8
