NTI XL2 + M2230

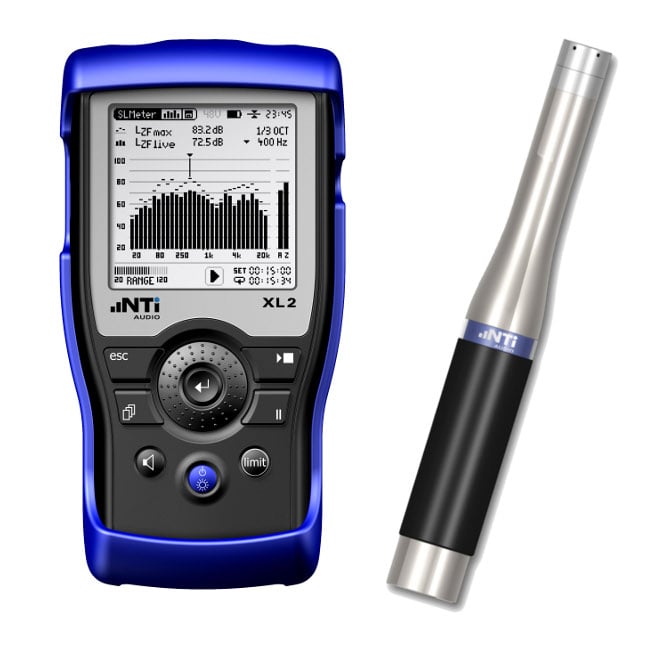

XL2 Audio Analyzer with the M2230 Microphone

OUR PART #:  XL2-NTI-M2230

The XL2 Analyzer forms the unique combination of a state-of-the-art Sound Level Meter, a comprehensive Acoustic Analyzer as well as a powerful Audio Analyzer.
Learn More
Our Price: $3,164.29
List Price: $3,170.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

NTI XL2 + M2230
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The XL2 Analyzer forms the unique combination of a state-of-the-art Sound Level Meter, a comprehensive Acoustic Analyzer as well as a powerful Audio Analyzer. A range of measurement microphones with an electronic data sheet are available to suit your requirements.

Besides being an advanced, integrating Sound Level Meter, the XL2 measures RTA and FFT high-resolution spectra, RT60 Reverberation Time, Polarity, Delay and THD+N. Optional features are speech intelligibility STIPA, extended acoustics functions, cinema calibration, pass/fail analysis and remote measurement acquisition. The Type Approval Option upgrades the instrument to the XL2-TA, a type approved sound level meter.

Data and audio is logged onto the SD card for transfer to your PC. Free reporting tools are available for download. The wide range of functionalities is tailored for measurement tasks in:

  • Installed Sound
  • Life Safety Systems
  • Noise Monitoring
  • Live Sound
  • Broadcast
  • Building Acoustics
  • Industrial and Aerospace
  • PASS/FAIL Quality Control

Specifications:

  • Sound Level Meter
  • Standards IEC 61672, IEC 60651, IEC 60804, ANSI S1.4, ANSI S1.43
  • Sound levels
    SPL actual, Lmin, Lmax, Lpeak, Leq, glidingLeq
    Frequency weighting: A, C, Z (=flat) simultaneously
    Time weighting:Fast, slow and optional impulse simultaneously
    Correction values k1,k2
    Limit monitoring showing exceeding sound levels
    Digital I/O interfacefor the control of external peripherals
    Sound Exposure Level LAE(optional)
    Percentile statistics LAF: 1%, 5%, 10%, 50%, 90%, 95%, 99%(optional)
    Calculated levels: LCeq - LAeq, LAIeq - LAeq, LAFT5eq -LAeq(optional)
    Clock-impulse maximum level "TaktMax" according DIN 45645-1 (optional)
  • Spectrum Analyzer
    1/3 octave, 1/1 octave
    Frequency weighting: A, C,Z (=flat)
    Time weighting: Fast, slow and optional impulse
    Percentilestatistics for Lxy (x= A, C or Z, y= F or S): 1%, 5%, 10%, 50%, 90%, 95%, 99%(optional)
    Logging to SD Card
    All levels simultaneously
    Short-timelevels including spectrum for 1 second or longer
    Wav-file for listening(compressed)
    Data logging in 100 ms intervals (optional)
    Linear wav-files with 24 bit, 48 kHz resolution (optional)
  • Remote measurement acquisition (optional)

Acoustic Analyzer

  • FFT Analysis
  • RT60 Reverberation Time
  • Polarity
  • Delay
  • Pass/Fail Measurements (optional)

STIPA Analyzer (optional)

  • Speech Intelligibility Measurement
  • IEC60268-16 (edition 4.0, 3.0 and 2.0), ISO 7240-16, ISO 7240-19, DIN VDE 0828-1, DIN VDE 0833-4
  • Ambient Noise Correction
  • Automated Averaging
  • Modulation Indices

Audio Analyzer

  • Level RMS
  • THD+N
  • Frequency
  • Scope
