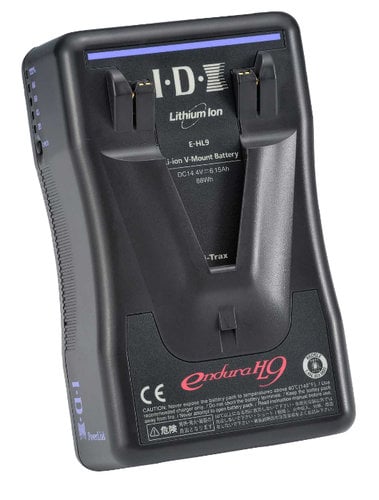

IDX Technology E-HL9
88Wh Li-ion V-Mount High Load Battery with PowerLink & Digi-View


Combining the best characteristics of IDX Technology's most popular power models...
Learn More
Our Price: $426.00
List Price: $480.00
You save 11%!
Write the first review.
IDX Technology E-HL9
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Combining the best characteristics of IDX Technology's most popular power models, the E–HL9 is designed to match the demands of power-hungry HD environments by supporting sustained high current loads. Standard IDX features such as PowerLink, Digi-View and IDX's Battery Management System are inherent in the E-HL9 series.

IDX's exclusive PowerLink feature connects two E-HL9 batteries for a total power capacity of 176Wh. The 6-step 5 LED power status display gives an accurate reading of capacity in 20% increments plus the last 10%.. The E-HL9 supports Digi-View for reading battery levels in many of today’s camera viewfinders. Battery Management System (BMS) can be used for enhanced diagnostics and a comprehensive review of the battery’s history of use. E-HL9 Power Status is an accurate display of the E-HL9’s remaining power. Visually and instantly indentified at any time or shown in the camera viewfinder via Digi-View.

The E-HL9's capacity of 88Wh (14.4V/6.15Ah) means a typical camera can see a run-time of 3 hours approximately (@30W).


  • With a continuous draw of up to 10 Amps, the E-HL9 has an impressive capacity using highly durable cell technology.
  • High-load capacity results in 50% higher discharge rate for this series.
  • Advanced low temperature discharge characteristics prohibit a voltage drop off down to –4 degrees Fahrenheit in extreme environment conditions.
  • Longer overall lifecycle—operators can expect about 10% longer battery viability when the 500-cycle level is reached.
  • PowerLink technology allows two E-HL9 batteries to be docked together, doubling capacity up to 176Wh for longer run times and high power needs.
  • Digi-View gives the camera operator an accurate display of the E-HL9’s remaining capacity, shown vi a the camera’s viewfinder.
  • 5 Power Status LEDs are located on the side of the E-HL9 for a quick and accurate check of remaining capacity, shown in increments of 20%.
  • BMS is a unique software package that enables users to monitor the history and condition of their batteries to increase their life span. BMS gathers battery data and provides PC access to a comprehensive database, invaluable when managing large fleets of ELITE, E-10 and E-HL9 batteries.
  • Battery circuit protection ensures the E-HL9 is fully protected against common causes of battery misuse, guarding against over charge, over discharge, over current and exposure to high temperatures.
  • Most environmentally friendly and safest battery in its classification.
  • Weighing only 1.63 lbs., the E-HL9 is compact and durable, ideal for regular use and transportation to and from location.
  • Attaching E-HL9 batteries to cameras without a standard V-Mount connection is possible through the use of P-V2 and P-VS2 adaptor plates, available separately from IDX and can be fully recharged using an ENDURA sequential or simultaneous charger.
  • Please note that IDX measures the capacity of Lithium Ion batteries as minimum capacity.


  • Battery Capacity: 14.4V, 6.15Ah, 88Wh
  • Max. Output Voltage: 16.8V DC
  • Nominal Voltage: 14.4V DC
  • Maximum Discharge Current: 10A (120W)
  • End Voltage: 12V
  • Battery Protection:
      -  Over charge (reset)
      -  Over discharge (reset)
      -  Over current (reset)
      -  Temperature protection (non reset)
  • Ambient Temperature:
      -  To charge: 32°F ~ 104°F (50°F ~ 86°F recommended)
      -  To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended)
      -  To store: -4°F ~ 140°F (32°F ~ 68°F recommended)
  • Dimensions: 3.35(W) x 5.51(H) x 2.28(D) inches
  • Weight: 1.63 lbs. approx.
