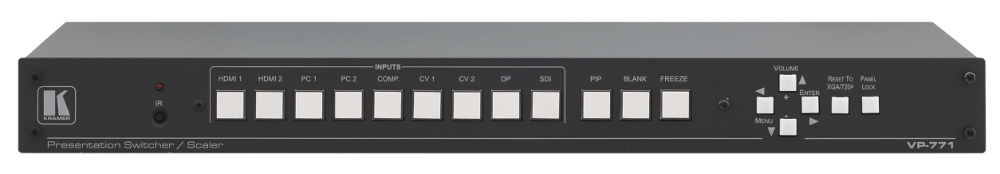

Kramer VP-771
9-Input ProScale Presentation Switcher/Scaler

OUR PART #:  VP771

The VP-771 from Kramer Electronics is a high-quality presentation switcher and scaler for a variety of signals.
Learn More
Our Price: $2,636.00
List Price: $3,295.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VP-771
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The VP-771 from Kramer Electronics is a high-quality presentation switcher and scaler for a variety of signals. It accepts one of nine inputs: component video, DisplayPort (DP), 3G HD-SDI, two  computer graphics, two composite video and two HDMI signals. It scales the video, embeds the audio, and outputs the signal to one HDMI, one computer graphics, one 3G HD-SDI and one DGKat TP,  together with digital audio, unbalanced stereo and a 2x10-watt amplified balanced stereo speaker output.

Applications for the VP-771 include projection systems in conference rooms, boardrooms, auditoriums, hotels and churches, production studios, rental and staging. Any application where high quality conversion and switching of multiple and different video signals to graphical data signals is required for projection purposes.

Kramer VP-771 Features:

  • K-IIT XL™ Picture-in-Picture Image Insertion Technology - Ultra-stable picture-in-picture, picture-and-picture, and split screen capability. Any video source can be inserted into or positioned next to a computer graphics video source or vice versa with window positioning and sizing controls
  • K-Storm™ Scaling Technology - Kramer’s extremely high performance scaling technology for converting the incoming video signal to a scaled output resolution with a minimum of motion artifacts. Up-and down-scaling of computer graphics video signals is possible
  • Ultra-Fast Fade-Thru-Black (FTB™) Switching - Video switching transitions are clean and ultra-fast. The video fades to black and the new input fades from black for smooth, glitch-free switching. The output signal provides constant sync so the display never glitches
  • Advanced Deinterlacing Functions - Method, sync, selectable film modes, diagonal correction and motion detection sensitivity,3:2 and 2:2 pull-down; 24sf  handling
  • HDTV Compatible
  • HDCP Compliant - The HDCP (High Definition Content Protection) license agreement allows copy-protected data on the HDMI input to pass only to the HDMI output
  • Multi-Standard Operation - SDI (SMPTE 259M and SMPTE344M), HD-SDI (SMPTE 292M) and 3G HD-SDI (SMPTE 424M)
  • Advanced Input and Output EDID Management
  • Video Inputs - Component (Y, Pb, Pr) video on RCA connectors, DisplayPort (DP), SD/HD/3G HD-SDI (including SDI loop) on BNC connectors, 2 computer graphics on 15-pin HD connectors, 2 composite video on RCA connectors and 2 HDMI
  • Scaled Outputs - HDMI, computer graphics on a 15-pin HD connector, SD/HD/3G HD-SDI on a BNC connector and DGKat twisted pair on an RJ-45 connector
  • SDI Channeling - Select one active signal and three bypassed signals from eight embedded stereo audio channels
  • Multiple Output Resolutions - Up to 2K and 1080p
  • HDMI Deep Color Support
  • Luma Keying - Via PIP window
  • Vertical Keystoning
  • Built-in ProcAmp - Color, sharpness, contrast, brightness and gamma are set individually for each input
  • 3D Comb Filtering - Provides the best quality color separation for composite video inputs
  • Built-in Time Base Corrector - Stabilizes unstable video sources
  • Powerful Noise Reduction Filters - Temporal, block, mosquito and combing
  • Picture Zooming - Both on main and PIP window from 100% to 1600%, including separate V and H sharpness control
  • Multiple Aspect Ratio Selections - Follow input, follow output, best fit, letterbox and overscan
  • Dual Window Display - Preset picture-in-picture, picture-and-picture and split screens, as well as customized window layouts.
  • Audio Inputs - 2 HDMI, 2 computer graphics and 1 DisplayPort and 1 microphone in on 3.5mm mini jacks; 2 CV and 1 S/PDIF on RCA connectors
  • Audio Outputs - 1 S/PDIF on an RCA connector, 1unbalanced stereo audio on a 3-pin terminal block connector and 2x10W power amplifier for balanced speakers on terminal block connectors.
  • HDMI Audio - Embeds/de-embeds HDMI audio with delay of 0-90msec for lip-sync correction
  • Microphone Input - Supports mix and talk-over features, as well as 0-90msec delay to prevent feedback
  • Non-Volatile Memory - Saves final settings
  • Firmware Upgrades - Via Ethernet and RS-232
  • Flexible Control Options - Front panel buttons, contact closure, OSD (on-screen display) via front panel buttons or IR remote(remote control included), Control Application software for use via Ethernet and RS-232.
  • Selectable Power Save Modes.
  • Worldwide Power Supply - 100-240V AC.
  • Standard 19” Rack Mount Size - 1U. Rack "ears" included.

Kramer VP-771 Specifications:

  • Inputs:
    • 2 HDMI (deep color) connectors
    • 2 VGA on 15-pin HD connectors
    • 1 component video on3 RCA connectors
    • 2 composite video on RCA connectors
    • 1 DisplayPort connector
    • 1SD/HD/3G HD-SDI plus loop a BNC connector
    • 2 HDMI, 2 VGA, 1DP, 2 CV unbalanced stereo audio on 3.5mm mini jack connectors
    • 1 S/PDIF (for component video input) digital audio on an RCA connector
    • 1 mic on a 3.5mm mini jack connector.
  • Outputs:
    • 1 VGA on a 15-pin HD connector
    • 1 SD/HD/3G HD-SDI on a BNC connector
    • 1 HDMI (deep color) connector
    • 1 DGKat on an RJ-45 connector
    • 1 S/PDIF digital audio on an RCA connector
    • 1unbalanced stereo audio on a 3-pin terminal block connector
    • 2x10W speaker amplifier balanced stereo audio on terminal block connectors
  • Compliance with standards: Supports HDMI (deep color)and HDCP; DisplayPort 1.1a
  • Output resolutions: 640x480 @ 60, 640x480 @ 75,800x600 @ 50, 800x600 @ 60, 800x600 @ 75, 1024x768 @ 50, 1024x768 @ 60,1024x768 @ 75, 1280x768 @ 50, 1280x768 @ 60, 1280x800 @ 60, 1280x1024 @ 50,1280x1024 @ 60, 1280x1024 @ 75, 1360x768 @ 60, 1366x768 @ 50, 1366x768 @ 60,1400x1050 @ 50, 1400x1050 @ 60, 1600x900 @ 60, 1600x1200 @ 50, 1600x1200 @ 60,1680x1050 @ 60, 1920x1200 @ 60, 480i60, 480p60, 576i50, 576p50, 720p50,720p59.94, 720p60, 1080p23.976, 1080p24, 1080p25, 1080p29.97, 1080p30,1080p50, 1080p59.94, 1080p60, 2048x1080 @ 60Hz, 2048x1080 @ 50Hz
  • Controls: Front panel buttons, OSD, IR remotecontrol, RS-232 on a 9-pin D-sub connector, Ethernet, contact closure
  • Power consumption: 100-240V AC, 56VA max
  • Operating temperature: 32° to 104°F (0° to +40°C)
  • Storage temperature: -49° to 158°F (-40° to +70°C)
  • Humidity: 10% to 90%, RHL non-condensing
  • Dimensions (WxDxH): 19" x 9.3" x 1U rack mountable
  • Weight: 5.5lbs (2.5kg) approx
  • Accessories: Power cord, rack “ears”, IR remote control
