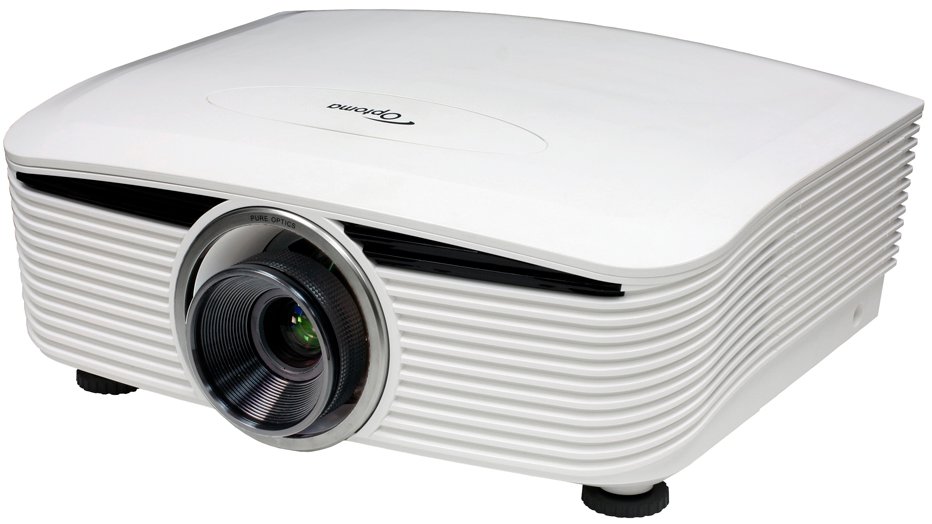

Optoma EH505
5000 Lumens ProScene WUXGA DLP Multimedia Projector with FREE ML750 Portable LED Projector

OUR PART #  EH505

Our Price: $3,499.00
List Price: $6,899.00
You save 49%!
Usually ships in 7-14 business days.
Need it sooner? Call us!

Recommended Accessories

Projection Calculator

Designed to deliver extraordinary performance and superior reliability to satisfy your large venue projector install needs, the Optoma EH505 provides a bright, powerful 5000 lumens output combined with a remarkable 2,000:1 contrast ratio to deliver amazingly bright, color-rich presentations with sharp, clear text and graphics.

Note: Lenses are sold separately. For more information on this and other products, please contact your Sales Pro.

The Optoma EH505 has one the most extensive input panels and most advanced feature sets in its class, to ensure the projector will satisfy your current and future needs. HDMI, display port and DVI for digital connectivity, (2) VGA inputs and (1) VGA out for analog content, vertical and horizontal lens shift, discrete audio inputs, 12 volt trigger for maximum installation convenience, are all just a few of the many outstanding features found on this remarkable product.

Optoma EH505 ProScene Projector Includes:

  • EH505 projector
  • AC power cord
  • VGA to VGA cable
  • Remote control
  • Batteries for remote
  • CD-ROM user's manual
  • Quick start card
  • Warranty card

Optoma EH505 ProScene Projector Features:

  • Bright crystal clear images for large venue applications
  • Unsurpassed color accuracy for the most impactful presentations
  • Vertical and horizontal lens shift for ease of installation
  • Optional lenses for maximum installation flexibility

Optoma EH505 ProScene Projector Specifications:

  • Display Technology: Single 0.65” DarkChip3™ DLP® Technology by Texas Instruments™
  • Native Resolution: WUXGA (1920 x 1200)
  • Maximum Resolution: WUXGA (1920 x 1200)
  • Brightness: 5000 lumens
  • Contrast Ratio: 2,000:1 (full on/full off)
  • Displayable Colors: 1.07 Billion
  • Lamp Life and Type: 3500/1500 Hours (STD/bright) 370W P-VIP
  • Projection Method: Front, rear, ceiling mount, table top
  • Keystone Correction:  ±15° Vertical
  • Uniformity: 85%
  • Aspect Ratio: 16:10 Native, 4:3 and 16:9 compatible
  • Lens Shift:
    • Vertical -30% to +50% image height
    • Horizontal ±10% image width
  • Projection Lens:
    • BX-DL080 Short throw 0.77:1
    • BX-DL200 Standard throw 1.54–1.93:1
    • BX-DL300 Long throw 1.93–2.89:1
  • Audio: (2) 3-Watt speakers
  • Noise Level: 37dB
  • Remote Control: Fully-featured IR remote with mouse and laser pointer
  • Operating Temperature: 41–113°F (5–45°C), 85% max humidity, adjustable fan speed for high altitude application
  • Power Supply: AC Input 100–240V, 50–60Hz, auto-switching
  • Power Consumption: 480W max (bright), 330W(STD), <0.5 Watt (standby)
  • Computer Compatibility: WUXGA, UXGA, SXGA+, WXGA, SXGA, XGA, SVGA, VGA resized, VESA, PC and Macintosh compatible
  • Video Input Compatibility: NTSC, PAL, SECAM, SDTV (480i/576i), EDTV (480p/576p, HDTV (720p, 1080i/p)
  • 3D Compatibility: Supports all HDMI 1.4a mandatory 3D format, side-by-side format and top and bottom format. 3D glasses are needed and sold separately.
  • Vertical Scan Rate: 24–85kHz, 120Hz
  • Horizontal Scan Rate: 15–91kHz
  • User Controls: Complete on-screen menu adjustments in 26 languages
  • I/O Connectors: Display port, HDMI, DVI-D w/HDCP, (2) VGA-in, VGA-out, S-video, composite video, component video, (5) BNC(RGBHV/YPbPr), (2) stereo mini jack audio-in, (2) RCA stereo audio-in, audio-out, 3D VESA port, wired remote, USB-A charging port, RS-232C, RJ45, and 12V trigger
  • Monitor Loop Through:
    • Monitor: D-Sub 15-pin VGA output (functional in both normal and standby modes
    • Audio: VAO audio out, HDMI VAO audio out supported (VAO in normal mode, fixed in Standby)
  • Security: Kensington® lock port, security bar and keypad lock
  • Physical:
    • Weight (without lens): 18.6 lbs (8.4 kg)
    • Dimensions: 16.9" W x 7.1" H x 13.4" D (430 x 181 x 340 mm)
  • Warranty: 3-Year Optoma Express Service, 1-Year on Lamp
  • Optional Accessories (sold separately): Optional lenses, wireless dongle, ceiling mount, HDMI cable, Optoma screens, RF 3D glasses, RF3D emitter, DLP® Link™ 3D glasses
  • Accessory Part Numbers:
    • Lamp: BL-FP370A
    • Mount: BM-5001U
    • Remote: BR-7003N
    • Wireless VGA Dongle: BI-EXTBG03
    • RF 3D glasses: BG-ZF2100GLS
    • RF 3D emitter: BG-BC100B
    • DLP® Link™ 3D glasses: BG-ZD301
  • UPC:  796435 41 831 1
