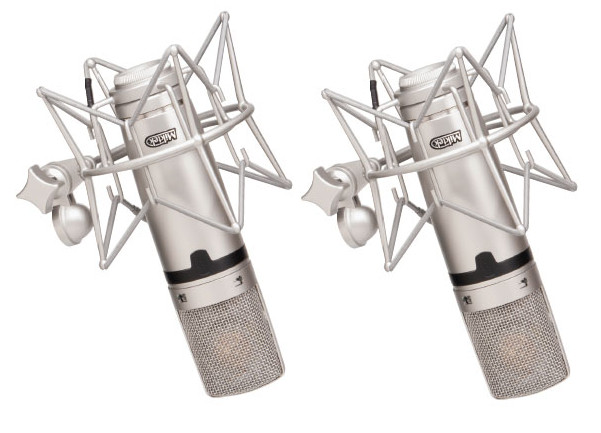

Miktek Audio C7MP
Matched Pair of Large Diaphragm Multi-Pattern FET Condenser Microphones

OUR PART #:  C7MP

The Miktek C7, multi-pattern, large diaphragm FET condenser will impress the most critical listeners and inspire artists to create their best performance.
Learn More
Our Price: $1,899.00
List Price: $3,199.00
You save 41%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Miktek Audio C7MP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Miktek C7, multi-pattern, large diaphragm FET condenser will impress the most critical listeners and inspire artists to create their best performance. The microphone’s pick-up characteristic is selectable; offering cardioid, omni and bidirectional patterns. In addition, the C7 employs a high-pass filter and –10dB pad for recording loud sound sources.  The frequency response is warm on the bottom and silky-sweet on the top, yet at the same time, the midrange is natural and open. The microphone produces amazing results when recording acoustic instruments, guitar amps, or as overheads on a drum kit. But of course, the C7 really excels on vocal applications.

The C7 utilizes the new MK7 capsule developed by Miktek engineers, featuring dual 1-inch diaphragms made using 5-micron Mylar with a 0.4-micron layer of evaporated gold. Diaphragms are then precisely tensioned, mounted to carefully- tuned backplates, and finally set back-to-back, with electronic isolation, to create the finished capsule.

The C7’s head amplifier has been designed around the AMI T7 transformer and, together with the implementation of high-quality components including hand-selected transistors, offers a sweet response reminiscent of highly desirable vintage microphones.  In addition, the innovated head amplifier design features a unique circuit that allows the engineer to switch the capsule bias voltage from +48 to +60 volts. This proprietary circuit implementation essentially provides the mic with two voices; allowing you to choose between a classic and modern microphone. At +48 volts the capsule’s diaphragm is under less tension, so it’s able to react to extremely subtle changes in sound pressure; enabling the microphone to capture the slightest nuances in any performance. When the bias voltage is set to +60 volts, the C7 is extremely accurate and articulate.

The Miktek C7 is hand assembled, tested and packaged in Nashville, Tennessee, USA using components from the US, Europe and Asia. Each microphone includes its serialized frequency response graph created during final testing.  The C7 is packaged with its swivel mount, in a wooden box, and set inside a rugged aluminum case along with the included shock mount.

Features:

  • MK7 Dual 1-inch Capsule 5-micron Mylar, Evaporated Gold Diaphragms
  • Cardioid, Omni and Bi-directional Pick-up Patterns
  • High-pass Filter & -10dB Pad Switches
  • Variable Capsule Bias Voltage: 48 – 60v
  • AMI T7 Transformer
  • Individual Serialized Frequency Response Graph
  • Includes Wood Presentation Case with Swivel-mount, Shock-mount and ruggedaluminum Carrying Case

Specifications:

  • Type:  Large diaphragm multi-pattern FET condenser
  • Polar Patterns:  Cardioid, figure-8, and omni
  • Frequency Response:  20~20000Hz
  • Sensitivity:  -29, -34, -38 dBV/Pa
  • Equivalent Noise Level:  13, 18, 22 dB
  • Dynamic Range:  105 dB
  • S/N Ratio:  81, 76, 72 dB
  • Max. SPL:  127 dB
  • Power Supply:  48V phantom
