Tannoy VLS 15EN54WH Passive Column Array Speaker with 15 Drivers, 400W, White

OUR PART #: VLS-15-WHITE MFR #: TA-VLS15-WH

Copied to clipboard
Tannoy VLS 15EN54WH Passive Column Array Speaker With 15 Drivers, 400W, White Image 1
Tannoy VLS 15EN54WH Passive Column Array Speaker With 15 Drivers, 400W, White Image 2
Tannoy VLS 15EN54WH Passive Column Array Speaker With 15 Drivers, 400W, White
Our Price: $1,099.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 14-17 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

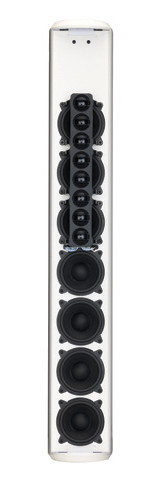

The VLS 15 is a passive column array loudspeaker with a complement of 7 × 3.5" (89 mm) LF transducers mounted in vertical array with an assembly of densely spaced 8 × 1" (25 mm) HF transducers mounted co-axially over a section of the LF (in an intuitively engineered, super-imposed chassis).

VLS Series is the first Tannoy product to incorporate FAST™ (Focussed Asymmetrical Shaping Technology), delivering unique acoustic performance benefits including asymmetrical vertical dispersion, gently shaping the coverage towards the lower quadrant of the vertical axis. VLS 15 packages this performance in a slender and narrow profile, aesthetically refined, powder-coated aluminium chassis with curved aluminium grille; ensuring a sleek and ultra-discrete appearance.

The device is IP65 rated for dust and water ingress, salt spray and UV resistant and subject to rigorous high/low operational temperature and humidity testing – making VLS 15 suitable for both indoor and outdoor use. Mounting is made easy via supplied flying and mounting brackets. Specification and design is aided by the use of Ease Focus v2.0 software, a generic, intuitive and easy to use three-dimensional acoustic simulation software. The software and relevant tutorials are free to download from the Tannoy website.

Features:

  • 7 × 3.5" (89 mm) LF driver array, 8 × 1" (25 mm) HFdriver array
  • FAST (Focussed Asymmetrical Shaping Technology)delivers improved intelligibility in typical listening plane and greaterflexibility in mounting location
  • Asymmetrical vertical dispersion: +6 degrees / -22degrees (-8 degree bias)
  • Highly consistent coverage pattern
  • Peak output 120 dB
  • IP65 rated for water and dust ingress protection
  • Sleek architecturally-sensitive profile
  • Easy to install, mounting brackets included
  • Easily accessible transformer tapping switch

Specifications:

  • Frequency Response (-3dB) (1) 150 Hz - 30 kHz
  • Frequency Range (-10dB) (1) 110 Hz - 35 kHz
  • System Sensitivity (1W @ 1m) (2) 91 dB
  • Horizontal dispersion (-6 dB) 130 degrees horizontal
  • Vertical dispersion (-6 dB) 6 degrees / - 22degrees (-8 degree bias)
  • Driver complement
    • 7 x 3.5" (89 mm) woofers
    • 8 x 1" (25 mm) metal dome tweeters
  • Crossover Passive network utilising Focussed Asymmetrical Shaping Technology (FAST)
  • Directivity factor (Q) 9.1 averaged 1 kHz to 10kHz
  • Directivity index (DI) 9.6 averaged 1 kHz to 10kHz
  • Rated maximum SPL(2) Average: 114 dB
  • Peak: 120 dB
  • Power handling Average: 200 W
  • Programme: 400 W
  • Peak: 800 W
  • Recommended Amplifier Power: 600 W @ 8 ohms
  • Nominal Impedance: 12 ohms
  • Construction:
    • Enclosure Aluminium extrusion
    • Finish Paint Ral 9003 (white) & Ral 9004(black)
    • Custom RAL finishes available (additional cost andlead-time).
    • Connectors Barrier strip
    • Fittings Flying bracket, wall mount bracket,input panel cover plate and gland
    • Dimensions (H x W x D): 32.1" x 4.8" x 5.7"
    • Packed Quantity 1
    • Net Weight: 23.1 lbs (10.5 kg)
