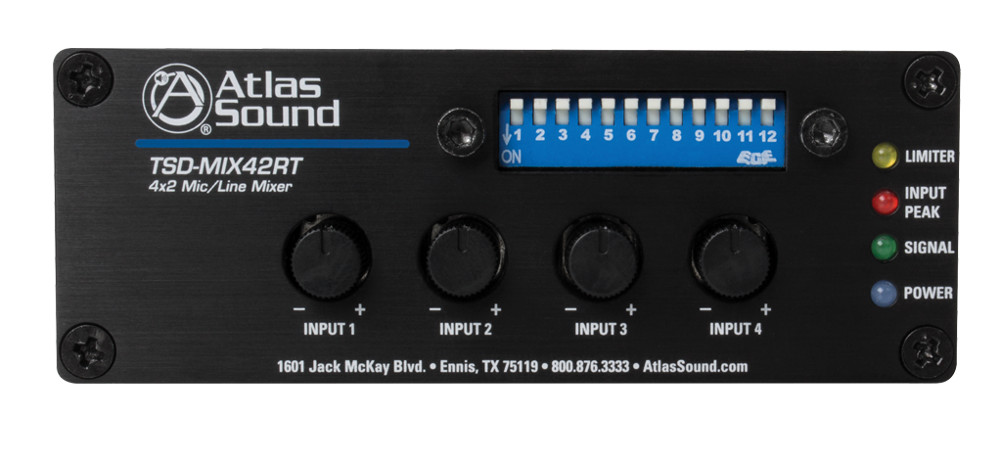

Atlas IED TSD-MIX42RT 4x2 Mic/Line Mixer with Priority Sense and Remote Control , NO POWER SUPPLY

The TSD-MIX42RT 4x2 mic/line mixer is ideal for applications where paging, priority music override and/or remote input selection with level control are required. Use alone or in conjunction with amplifiers in meeting rooms, digital signage, luxury suites, and other applications requiring versatile, stereo or mono multi source mix control.

The unit includes one mic/balanced line input via removable Phoenix style connector and three stereo 3.5mm inputs. Switchable phantom power is provided for the mic input to facilitate condenser microphones. The high quality, low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB/octave high pass filter @ 125Hz also is available on the mic input to minimize bass rumble and low frequency feedback.

Priority paging can be accomplished via contact closure or VOX trigger on Input 1 that will mute Inputs 2, 3, or 4 (assignable). Remote level control feature allows use of the Atlas Sound AAVC-10K or WPD-VC10K decorative wall plate control for convenient remote adjustment of either the entire Master mix bus or Inputs 1, 2, 3. A variable output limiter provides system protection by reducing clipping and distortion - which is especially useful when mixing mic and/or line sources with varying volumes.

Features:

• Stereo or Mono Configurations
• One Balanced Mic/Line Input
• Three Unbalanced Stereo Line Inputs 3.5mm
• 12dB/octave High Pass Filter @ 125Hz Available on the Mic Input
• Priority Paging Via Contact Closure or VOX Trigger on Input 1
• Remote Level Control Feature Allows use of the WPD-VC10K Wall Plate Control

Specifications:

• Input impedance 1.2kOhm Balanced, 600 Ohm Unbalanced
• Phantom Power 24VDC Defeatable
• Low Cut Filter 125Hz/12dB Defeatable
• Line Input Level 1V (0dBV) Balanced 2V (+6dBV) Balanced Output
• Mic Input Level 46dB Gain 10mV (-40dBV) Balanced = 2V (+6dbV) Balanced Output
• Output impedance 300 Ohm Balanced, 150 Ohm Unbalanced
• Line Output Level 1V (0dBV) In = 2V (+6dBV)
• Frequency Response 20Hz - 20kHz (±1dB)
• THD .06% @ 1kHz
• Voltage 24VDC, 60mA
• Power Consumption (Current) 60mA
• Dimensions: H 1.5" (3.81 cm) X W 4" (10.16 cm) X D 5.2" (13.2 cm)
• Weight: 13oz

Note:

The power supply is sold separately. Power supply choices will depend on your applications current requirements. Please contact your sales representative for more information on this and other products.
