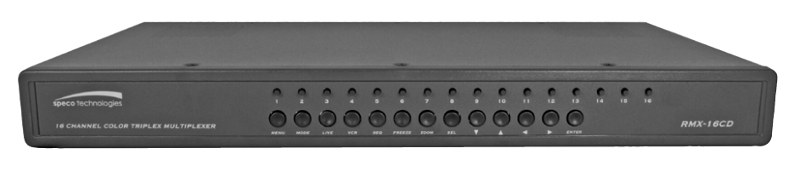

Speco Technologies RMX-16CD
16 Channel Color Duplex Multiplexer


Our Price: $1,473.00
Write the first review.
Speco Technologies RMX-16CD
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The RMX-16CD from Speco Technologies is a Duplex Multiplexer that allows you to display "live" single camera full screen pictures or a variety of multiple-picture screen formats while full screen recording all cameras. A duplex multiplexer is useful for applications where monitoring is a key part of the system function and where recorded needs to be viewed regularly.


  • View up to 16 image sources on one screen while simultaneously recording full screen images on a DVR or VCR
  • Full-screen and multi-screen viewing options are available during VCR playback
  • Uniquely programmable for recording between 2 - 999 hours
  • Built-in time/date generator
  • 8 Character camera title function
  • Video loss alert and alarm detection are structured
  • Compatible with all standard time lapse VCRs and most DVRs
  • 4 Channel color (RMX4CD) and 9 channel color (RMX9CD) models are also available


  • Camera Inputs: BNC, 16, composite video 1.0 Vp-p 75 Ohms
  • Adjustable Program Recording: 2-999 hours-accepts trigger pulses from VCRs & DVRs
  • Alarm Functions: Video loss alert and alarm detection with up to 100 record
  • Alarm Inputs: 16 (TTL Level)
  • Alarm Output: 1, Normally open or closed (relay output) contacts with shared common
  • Compatibility: Compatible with all standard and time lapse VCRs and most DVRs
  • Looping Camera Outputs: BNC, 16, composite video 1.0 Vp-p 75 Ohms
  • Maximum Image Sources: 16 on one screen
  • Monitor Output: BNC, 3, composite video 1.0 Vp-p 75 Ohms
  • Other Features: Built-in time and date generator with 8 character camera title function
  • Playback Input: BNC, 1, composite video 1.0 Vp-p 75 Ohms
  • Power Consumption: Maximum 9 watts
  • Power Source: 12V DC, 1.2 Amp included
  • Recovery Output: 1 (TTL active low)
  • RS-232 Interface: D-SUB 25 pin female connector
  • Switch Input: BNC, 1 (TTL Level)
  • VCR Output: BNC, 1, composite video 1.0 Vp-p 75 Ohms
  • Viewing Options: Full screen, multi-screen or sequential switching with adjustable dwell time
  • Dimensions: 1.75” (H) x 17” (W) x 9.75” (D)
  • Weight: 5 lbs, 8 oz. net
