Samson SWC88BGT-D
Wireless Guitar Bodypack System, 638 - 662 MHz


Our Price: $179.99
List Price: $209.99
You save 14%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

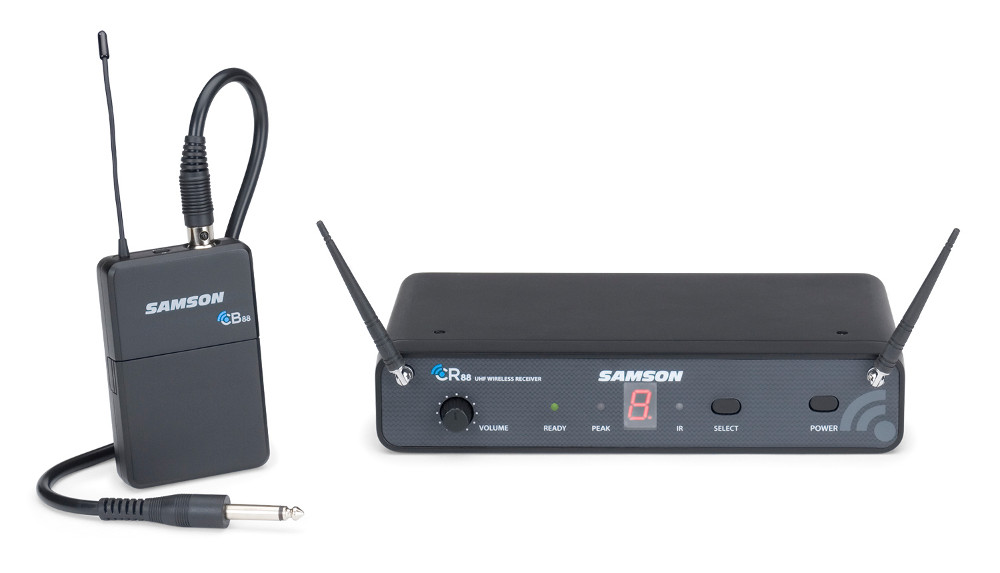

The Concert 88 Guitar System consists of the CB88 Beltpack, GC32 Instrument Cable, CR88 Receiver, rackmount kit & Power Supply.

Samson’s Concert 88 Guitar System offers a high performance UHF wireless solution where the freedom of mobility is a must. It’s perfect for guitarists, bassists and other stringed instruments looking for stunning sound and versatility without cables.

The frequency-agile Concert 88 system allows for up to 16 systems to operate simultaneously across two frequency bands with up to 300 feet separating the receiver and transmitter. At the core of the system is the CR88 Wireless Receiver. Featuring a true diversity design, the CR88 minimizes signal dropouts during performance. If a dropout does occur, the CR88’s tone key and auto mute functions eliminate any background noise until the signal is restored.

The CR88 receiver’s front panel provides a Select button for auto syncing receiver and transmitter channels via an infrared signal. The panel also features a 7-segment Channel LED, Volume knob, Power button, two tuned antennas, as well as Audio and Ready indicators, for optimal functionality and monitoring. Balanced XLR and 1/4-inch outputs can be found on the receiver’s back panel.

The Concert 88 Guitar System features the CB88 Beltpack Transmitter and GC32 Guitar Cable with a locking connector. The transmitter, which can operate for up to eight hours on two AA batteries, is engineered to the finest detail to provide the ultimate in sound reproduction.

With Samson’s Concert 88 Guitar System, advanced technology and total versatility combine to provide high quality wireless performance wherever guitarists, bassists and other stringed instruments need it.


Concert 88 Guitar System

  • High performance professional UHF wireless system
  • Rack mount kit included

CR88 Wireless Receiver

  • True diversity design minimizes dropouts
  • Up to 16 systems can be operated simultaneouslyacross two frequency bands
  • Tone key and auto mute functions eliminate backgroundnoise during dropouts
  • Infrared set links the receiver and transmitterchannels
  • Balanced XLR and 1/4-inch outputs

CB88 Beltpack Transmitter

  • GC32 Guitar Cable with locking connector
  • Transmitter offers up to eight hours of battery lifeusing two AA batteries
  • 300-foot operating range



  • Working Range 300ft (100m) line of sight
  • Audio Frequency Response 50 Hz - 15 kHz
  • T.H.D. (Overall) <1% (@AF 1 kHz, RF 46 dBu)
  • Dynamic Range >100 dB A-weighted
  • Signal to Noise >90 dB
  • Operating Temperature –10°C (14°F) to +60°C (+140°F)
  • Tone Key Frequency 32.768 kHz

CB88 Belt pack Transmitter

  • Input Connector Mini-XLR (P3)
  • Input Impedance 1 MOhms
  • Input Gain Range 38 dB
  • RF Power 10 mW EIRP
  • Power Requirements Two AA (LR6) alkaline batteries
  • Battery Life 8 hours
  • Dimensions (HxLxD) 3.75" x 2.44" x 0.75"
  • Weight 0.2 lb / 93 g

CR88 Receiver

  • Audio Output Level - Unbalanced +14 dBu
  • Audio Output Level - Balanced +9 dBu
  • Audio Output Impedance - Unbalanced 810 Ohms
  • Audio Output Impedance - Balanced 240 Ohms
  • Sensitivity -100 dBm / 30 dB sinad
  • Image Rejection >50 dB
  • Operating Voltage 15 VDC 200mA
  • Dimensions (LxWxH) 8.25" x 4.9" x 1.75"
  • Weight 0.85 lb / 388 g
