Samson SWC88HCL6-D Concert 88 16-Channel True Diversity Handheld Wireless System with Q6 Mic, D Band (542-566 MHz)

OUR PART #: SWC88HCL6-D MFR #: SWC88HCL6-D

Copied to clipboard

Samson's Concert 88 wireless handheld microphone system consists of the CH88 handheld transmitter with Samson CL6 dynamic element, CR88 receiver, rackmount kit... ...Read more

Samson SWC88HCL6-D Concert 88 16-Channel True Diversity Handheld Wireless System With Q6 Mic, D Band (542-566 MHz) Image 1
Samson SWC88HCL6-D Concert 88 16-Channel True Diversity Handheld Wireless System With Q6 Mic, D Band (542-566 MHz)
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

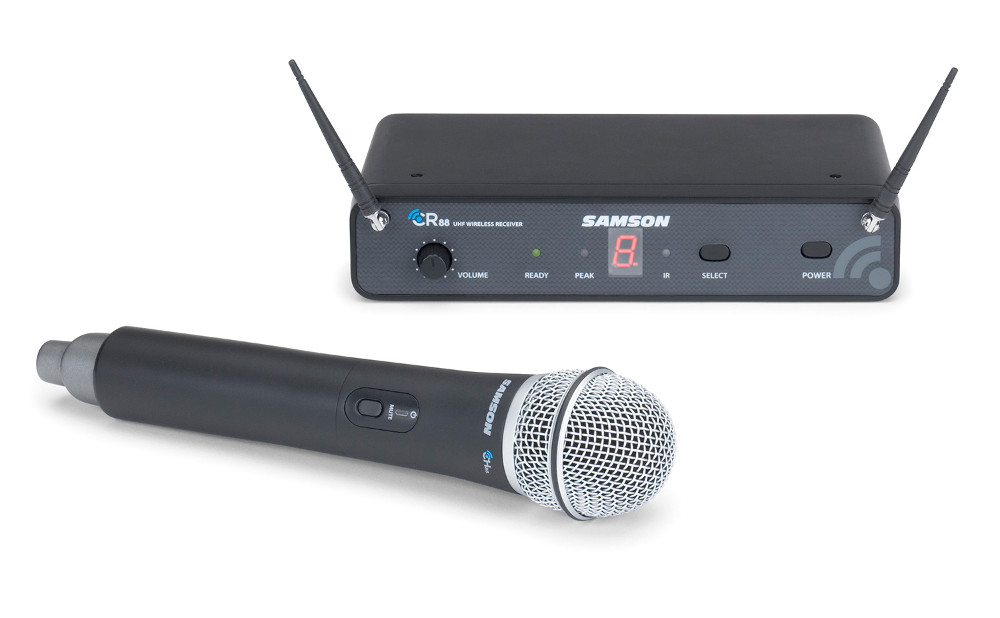

Samson's Concert 88 wireless handheld microphone system consists of the CH88 handheld transmitter with Samson CL6 dynamic element, CR88 receiver, rackmount kit, and power supply. It provides a high performance UHF wireless solution where the freedom of mobility is a necessity. It’s great for singers, business professionals, educators, and others looking for stunning sound and versatility without cables. This particular system operates in the D frequency band: 542–566 MHz. It's a frequency-agile system that allows for up to 16 systems to simultaneously operate across two (2) frequency bands with up to 300ft distance between the receiver and transmitter. At the core of the system is the CR88 Wireless Receiver, featuring a true diversity design. The CR88 minimizes signal dropouts during performance. If a dropout should occur, its tone key and auto mute functions eliminate any background noise until the signal is restored. The CR88 receiver’s front panel provides a Select button for auto syncing receiver and transmitter channels via an infrared signal. The panel also features a 7-segment Channel LED, Volume knob, Power button, two tuned antennas, as well as Audio and Ready indicators, for optimal functionality and monitoring. Balanced XLR and ¼" outputs can be found on the receiver’s back panel. Also included is the CH88 Handheld Transmitter and Q6 Professional Dynamic Microphone. The transmitter, which can operate for up to eight hours on two AA batteries, is engineered to the finest detail to provide the ultimate in sound reproduction. This Concert 88 wireless system brings together advanced technology and total versatility to provide high quality wireless performance wherever singers, educators, business professionals, and others need it.

Features

  • High-performance professional UHF wireless system
  • Rackmount kit included
  • True diversity design minimizes dropouts
  • Up to 16 systems can be operated simultaneously across two frequency bands
  • Tone key and auto mute functions eliminate background noise during dropouts

Specifications

  • System
    • Working Range: 300ft (100m) line of sight
    • Audio Frequency Response: 50 Hz - 15 kHz
    • T.H.D. (Overall): < 1% (@AF 1 kHz, RF 46 dBu)
    • Dynamic Range: >100 dB A-weighted
    • Signal to Noise: >90 dB
    • Operating Temperature: 14° F to +140° F (–10°C to +60°C)
    • Tone Key Frequency: 32.768 kHz
  • CH88 Handheld Transmitter
    • Microphone Element: Q6 Dynamic
    • Input Gain Range: 28 dB
    • RF Power: 10 mW EIRP
    • Power Requirements: Two AA (LR6) alkaline batteries
    • Battery Life: (approx.) 8 hours
    • Dimensions (H x Ø): 10.23" x 2.1"
    • Weight: 0.48 lb. (218 g)
  • CR88 Receiver
    • Audio Output Level - Unbalanced: +14 dBu
    • Audio Output Level - Balanced: +9 dBu
    • Audio Output Impedance - Unbalanced: 810 Ohms
    • Audio Output Impedance - Balanced: 240 Ohms
    • Sensitivity: -100 dBm / 30 dB sinad
    • Image Rejection: >50 dB
    • Operating Voltage: 15 VDC 200mA
    • Dimensions (L x W x H): 8.25" x 4.9" x 1.75"
    • Weight: 0.85 lb. (388 g)
