Product Overview

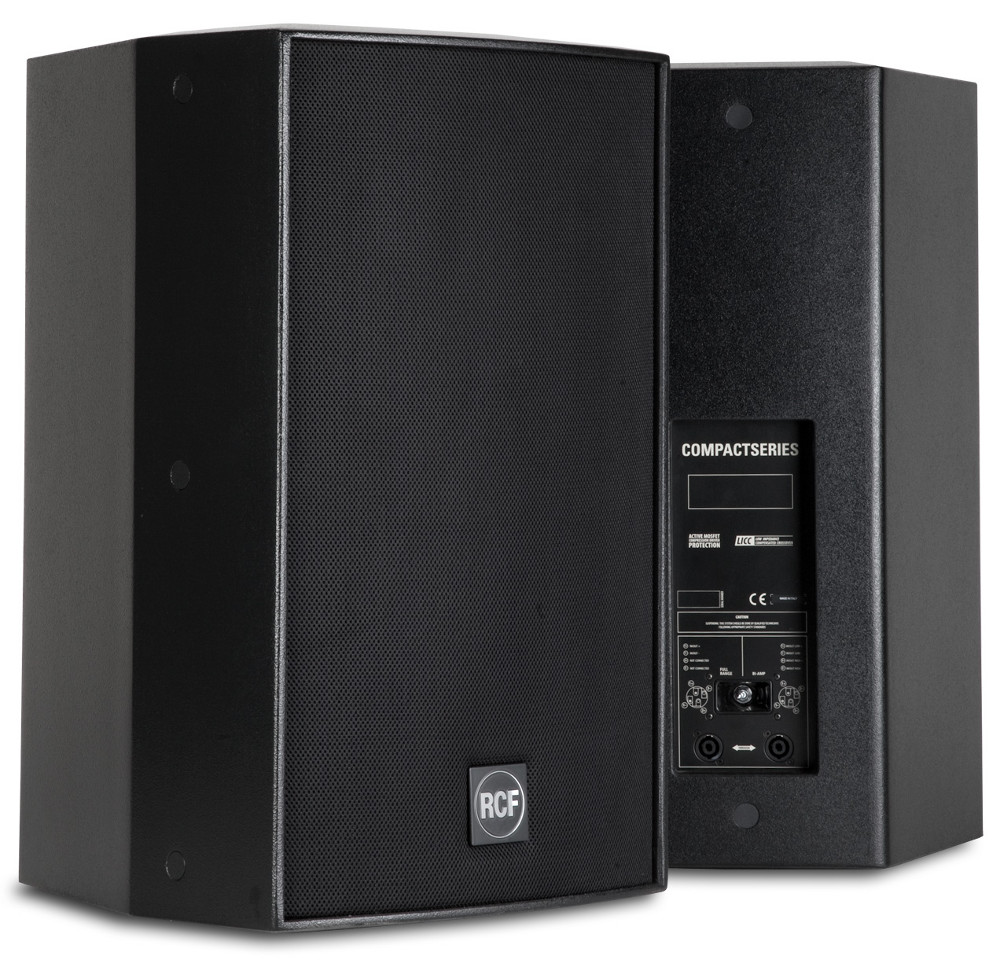

The C5212-96 is a full range extremely narrow dispersion two-way loudspeaker system for medium throw applications.
The high-frequency section is a constant directivity horn loaded to a 2" compression driver with a 2.5" diaphragm assembly for smooth, wide dispersion.
The 90° x 60° horn design offers higher sensitivity for longer distance applications.
The low-frequency transducer is a 12” woofer with a 3” voice coil.
Features:
- 90° x 60° CMD (Coverage Matching Design) constant directivity horn
- 2" compression driver with 2.5" diaphragm assembly
- 12" woofer with 3" voice coil
- Dual-function design: built in passive crossover or external bi-amp
- Rotatable Horn System for horizontal cabinet mounting applications
- HF driver AMCDP (Active Mosfet Compression Driver Protection)
- LICC (Low Impedance Compensated Crossover) network
Specifications:
- Acoustical Specifications
- Frequency Response (@-10dB: 54Hz - 20000Hz
- Max SPL @ 1m: 132dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 60°
- Directivity index; Q: 13
- System Sensitivity: 99dB
- Nominal Impedance: 8Ω
- Power Handling: 500W
- Peak Power Handling: 2000W
- Recommended Amplifier: 1000W
- Protections: Dynamic
- Crossover frequencies: 1200Hz
- Transducers
- Compression Driver: 2"HF driver, 2.5" voice coil
- Nominal Impedance: 8Ω
- Input Power Rating: 100W AES
- Sensitivity: 111dB
- Woofer: 12" woofer, 3" voice coil
- Nominal Impedance: 8Ω
- Input Power Rating: 400W AES
- Sensitivity: 98dB
- Input Section
- Input connector: Speakon NL4 - Full range or Bi-Amp
- Output connector: Speakon NL4
- Cabinet
- Cabinet Material: 15mm birch plywood construction
- Hardware: 14 x M10 inserts
- Pole Mount/Cap: 1 top, 1 bottom
- Grille: custom perforated steel grille, epoxy powder coated, covered with polyurethane perforated cloth
- Colour: Black
- Physical Specifications
- Height: 24.8"
- Width: 14.17"
- Depth: 15.35"
- Net Weight: 63.93lbs
