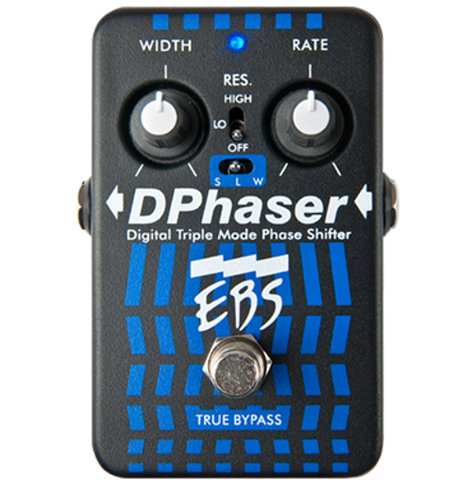

EBS DPhaser
Triple Mode Bass Phaser Pedal

OUR PART #:  EBS-DP

The EBS DPhaser offers three very distinct and different phaser effects. Select everything from classical 70’s sounds up to hyper modern swarling phasing effects.
Learn More
Our Price: $199.95
List Price: $299.95
You save 33%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

EBS DPhaser
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The EBS DPhaser offers three very distinct and different phaser effects. Select everything from classical 70’s sounds up to hyper modern swarling phasing effects.

The DPhaser offers three different modes of cool phaser effects. 'Short' is the classic phaser effects recognized from the 70's, 'Long' emphasize the effects a bit more, while 'Wide' gives you extrem swarling flanger-like effects.

Hi, Lo and Off decides the resonance of the effect while the two controls change the width and rate. In addition you can set a lot of parameters inside the box for fine tuning your sound.

The pedal is built with highest quality components and uses 24-bit digital processing circuitry for outstanding performance on stage and in the recording studio. While the pedal offer juicy analog sound, the use of digital technique makes it possible to fit in the same compact format that the Black Label Pedals are knowned and praised for.

Features:

  • Triple Mode Phase Shifter
  • Short, Long & Wide Effect Modes
  • High, Lo or Off Resonance Modes
  • Controls for Width and Rate
  • True Bypass

Specifications:

  • Nominal Input Level: - 8 dBv
  • Input Impedance: 700 kohms
  • Bypass Bandwidth: +0 / -3 dB  20 - 20k Hz
  • Phaser Types:
      -  Short (S): 4 or 6stages
      -  Long (L): 8 or 10 stages
      -  Wide (W): 18 stages differential
  • LFO Range: min / max  0.05-10 Hz
  • LFO Types: Sine and Triangle
  • Low frequency bypass: Optional  < 130 Hz
  • Sampling Frequency: 48 kHz
  • Dynamic Range  Typ: 100 db A-weighted
  • Dimensions (WxHxD): 70 x 115 x 35 mm / 2.8 x 4.5 x 1.4"
  • Weight: 480g (1.07 lb.)
  • Bypass: True Bypass
  • Power Requirements: 9 V DC Regulated, 110 mA max
