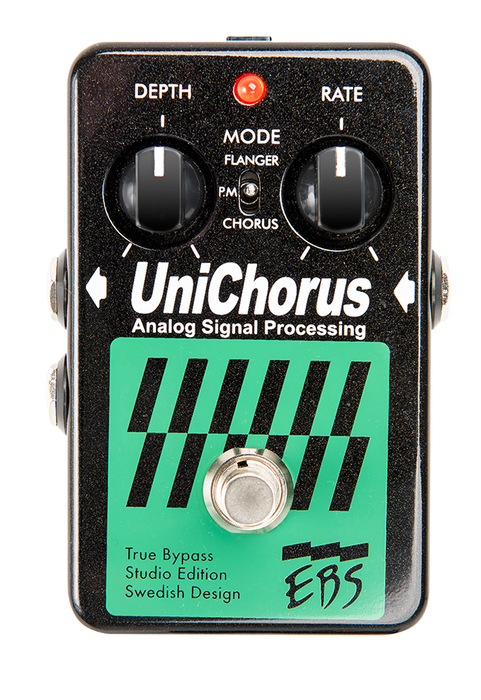

EBS EBS-CHO UniChorus Analog Chorus Bass Pedal

With the EBS UniChorus you can choose between low noise studio quality Chorus, Flange and Pitch Modulation effects.

The pedal is built with the best analog processing circuitry available. This gives a smoother, warmer and fatter sounding chorus/flange effect, useful both for live and studio performances. Since 2008 the pedal uses true bypass techniques.

EBS UniChorus Features:

• Analog Signal Processing
• Flanger, Pitch Mod and Chorus Modes
• Controls for Depth and Rate
• Stereo output
• True Bypass

EBS UniChorus Specifications:

• Nominal Input Level: - 8 dBv
• Input Impedance: 700 kohms
• Bandwidth: +0/-3 dB 20 - 20 kHz
• Delay Bandwith: +0/-3 dB 200 - 8 kHz
• Delay Level mix: min/max -oo - +3 dB
• Center Delay Time:
  • Flange: 3 ms
  • Chorus: 5.5 ms
  • Pitch Modul.: 10 ms
• Modulation Depth: min/max +/- 50% of nominaldelay time
• LFO Range: min/max 0.15 - 7.5 Hz
• Bypass: True Bypass
• Dimensions (LxWxH): 2.8" x 4.5" x 1.4” (70 x 115x 35 mm)
• Weight: 480g (1.07 lb.)
• Power Requirements: 9 V DC Regulated, 20 mA max
