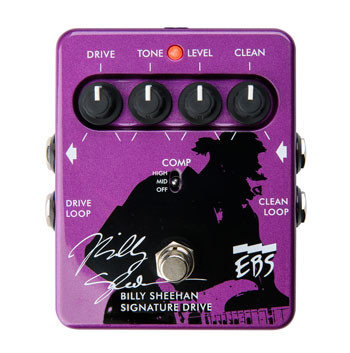

EBS Billy Sheehan Signature Drive
Bass Overdrive Pedal with Onboard Compressor

OUR PART #:  EBS-BS

The Billy Sheehan Signature Drive pedal is developed by EBS in close co-operation with Billy himself.
Learn More
Our Price: $199.95
List Price: $349.95
You save 43%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

EBS Billy Sheehan Signature Drive
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Billy Sheehan Signature Drive pedal is developed by EBS in close co-operation with Billy himself. It is based on the concept of mixing together a clean signal with a distorted to be able to preserve low frequencies and find balance between distortion and definition.

The option to add compression make possible to keep the note differentiation clearly audible even at heavily distorted sounds. There are three modes for the buil-in compressor, High, Mid and Off. For the Mid setting, there's an additional trim pot inside to set the level. There's also a trim pot to set the Threshold for the compressor.

The Billy Sheehan Signature Drive offers unlimited pre-post mix tone shaping, made possible by including a clean loop and a drive loop. It lets the user insert any other effect they wish within each loop to ’pimp’ the effect into your own signature effect! For example, connect an external EQ to the Drive Loop and shape the character of the distortion any way you want. Or, turn off the built-in compressor if you prefer to use a different type of compressor and put in the Clean Loop.

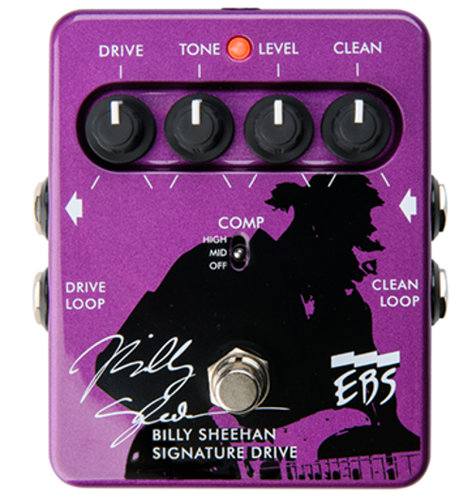

With the new extended size box from EBS, there are controls for Drive (gain for the overdrive engine), Tone (sets the frequency scoop for the drive), Level (sets level for drive channel post Drive Loop and pre final compressor) and Clean (sets level for the clean channel, post Clean Loop and pre final compressor).

EBS Billy Sheehan Signature Drive Features:

  • Drive, Tone, Level and Clean controls.
  • Three Compressor Modes - High, Mid, Off
  • Clean Loop and Drive Loop (connect a Y-cable for send and return).
  • Type: Analog Effect, Mechanical Switching
  • 9V DC (Battery or Power Supply)
  • Advanced Options: By removing the bottom plate you get access to fine tuning trimmers to adjust Threshold level of compressor (THR.) and the level of Compression when mode switch is set to MID (COMP).

EBS Billy Sheehan Signature Drive Specifications:

  • Nominal Input Level:  -8 dBv
  • Input Impedance: 700 kOhms
  • Gain Range Drive:  20 - 40 dB
  • Tone Filter
    • Range:  175 - 4500Hz
    • Q:  0.6
  • Nominal Loop Level:  -8 dB
  • Output Impedance - Loops:  2 kOhms
  • Input Impedance - Loops:  47 kOhms
  • Mix Level:
    • Drive Channel:  +3 dB max
    • Clean Channel:  +6 dB max
  • Compressor:
    • Ratio:  5:1 (max)
    • Threshold:  -25 +6 dB
    • Attack Time (80%):  < 10 ms
    • Release Time (80%):  100 ms typ
    • Makeup Gain:  0, +3, +6 dB
  • Output Impedance:  < 100 Ohms
  • Dimensions (WxHxD):  3.5" x 4.5" x 1.4" (90 mm x 115 mm x 35 mm)
  • Weight:  1.07 lbs (480 g)
  • Type:  Analog Effect, Mechanical Switching
  • Power Requirements:  9 - 12 V DC Regulated, 15 mA max
