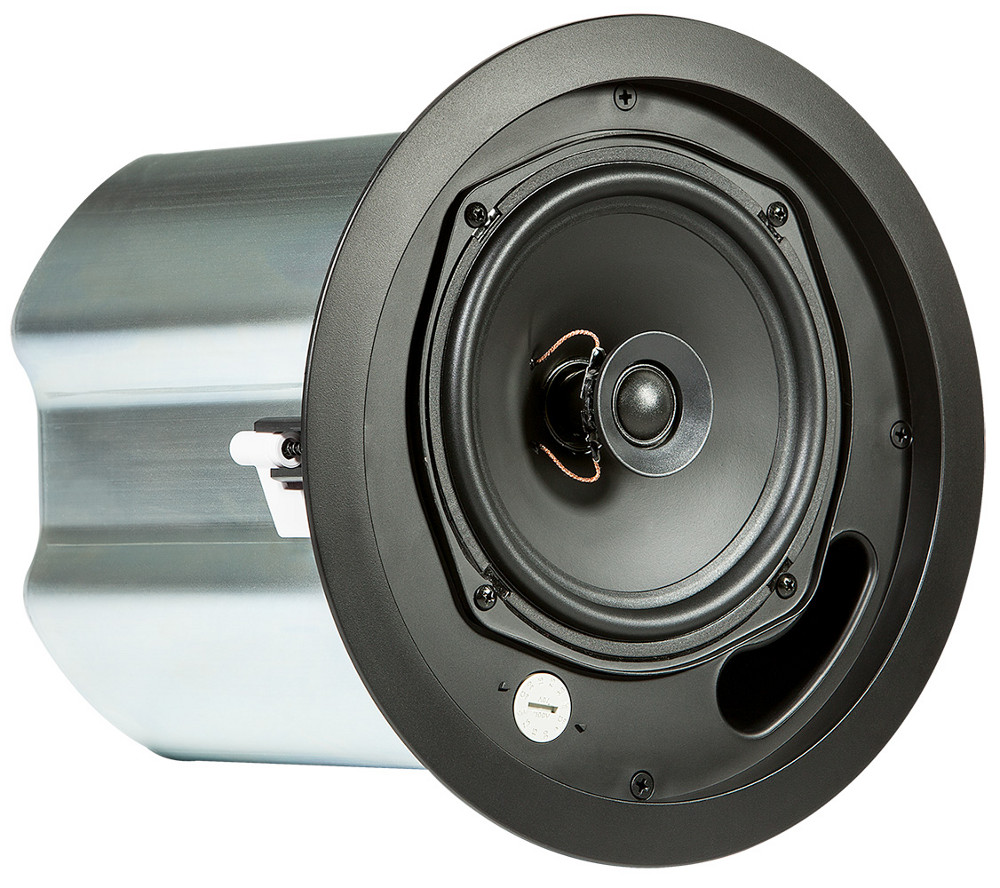

JBL Control 16C/T
6.5" 2 Way Ceiling Speaker in Black

OUR PART #:  CONTROL-16C/T-BK

JBL's Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented...
Learn More
Our Price: $120.00
List Price: $149.50
You save 20%!
Write the first review.

This product must be purchased in multiples of 2

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL Control 16C/T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

JBL's Control 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.

JBl Control 16C/T Features:

  • Components:
    • 165 mm (6.5") high output driver with polypropylene cone and butyl rubber surround
    • 19 mm (0.75") soft-dome liquid-cooled tweeter
  • Blind-mount backcan for quick and easy install
  • Dual conduit/cable clamps
  • Combined 70V/100V and low impedance direct operation
    50 Watts at 8 Ohms nominal setting
    30W multi-tap at 70V/100V
  • 62 Hz – 20 kHz bandwidth with wide 110° coverage
  • High 91 dB sensitivity for high maximum SPL

JBL Control 16C/T Specifications:

  • Frequency Range (-10 dB): 62 Hz – 20kHz
  • Power Capacity (at low-Z): 100 Watts Continuous Program Power, 50 Watts Continuous Pink Noise
  • Transformer Taps: 30 W, 15 W, 7.5 W@ 70V or 100V (plus 3.8 W @ 70V only)
  • Frequency Response (±3 dB): 96 Hz –15 kHz
  • Nominal Sensitivity: 91 dB
  • Nominal Coverage Angle: 110° conical coverage
  • Directivity Factor (Q): 7.8
  • Directivity Index (DI): 8.2 dB
  • Rated Maximum SPL: 108 dB @ 1 m (3.3 ft) average, 116 dB peak
  • Nominal Impedance: 8 ohms (in direct/bypass 8 Ohm setting)
  • Crossover Network: 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
  • LF Driver: 165 mm (6.5") with polypropylene cone, butyl rubber surround, anodized aluminum voice coilformer, high temperature voice coil
  • HF Driver: 19 mm (3/4"), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide
  • Input Connector: Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
  • Connector Wiring: Pin 1 =+ In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
  • Strain Reliefs: Strain relief for two cables or two flex conduits via coupled clamping mechanism
  • Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating; Zinc-plated steel backcan
  • Safety Agency: UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
  • Dimensions: 253 mm diameter x 225 mm depth from back of baffle (10" diameter x 8.8" depth)
  • Ceiling Cutout Size: Circular cutout with 170 mm (6.7") diameter (cardboard cutout template included)
  • Ceiling Thickness Range: Up to 38 mm (1.5") with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 60 mm (2.4") ceiling thicknesses
  • Safety Seismic Attachment: One point, top surface
  • Net Weight: 3.4 kg (7.4 lbs, one speaker)
  • Shipping Weight: 11.2 kg (24.7 lbs, pair in master carton)
  • Included Accessories: C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans; optional  MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille
