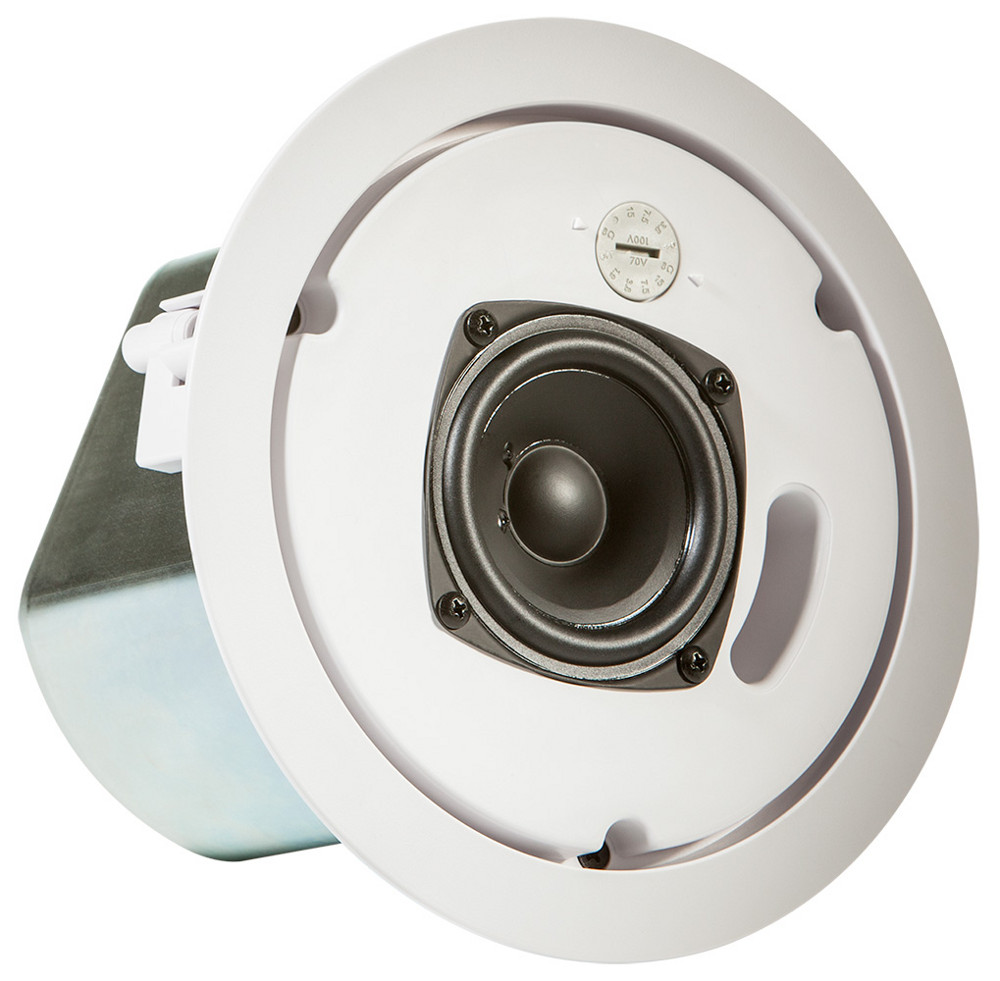

JBL Control 12C/T
3" 2 Way Ceiling Speaker in White

OUR PART #:  CONTROL-12C/T

JBL's Control 12 C/T is a full-range ceiling speaker consisting of 76 mm (3") wide-bandwidth cone driver mounted in a vented...
Learn More
Our Price: $66.00
List Price: $83.00
You save 20%!
Be the first to review.

This product must be purchased in multiples of 2

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL Control 12C/T
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

JBL's Control 12 C/T is a full-range ceiling speaker consisting of 76 mm (3") wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 material, with a preattached blind-mount backcan for quick and easy installation.

JBL Control 12C/T Features:

  • 76 mm (3") full-range driver
  • Blind-mount backcan for quick and easy install
  • Dual conduit/cable clamps
  • Combined 70V/100V and low impedance direct operation
    20 Watts at 8Ohms nominal setting
    15W multi-tap at 70V/100V
  • 68 Hz – 17 kHz bandwidth with wide 130° coverage

JBL Control 12C/T Specifications:

  • Frequency Range (-10 dB): 68 Hz –17 kHz
  • Power Capacity (at low-Z): 40 Watts Continuous Program Power, 20 Watts Continuous Pink Noise
  • Transformer Taps: 15 W, 7.5 W, 3.8W @ 70V and 100V (& 1.9 W @ 70V only)
  • Frequency Response (±3 dB): 95 Hz –15 kHz
  • Nominal Sensitivity: 84 dB
  • Nominal Coverage Angle: 130°conical coverage
  • Directivity Factor (Q): 9.8
  • Directivity Index (DI): 7.4 dB
  • Rated Maximum SPL: 97 dB @ 1 m (3.3ft) average, 103 dB peak
  • Nominal Impedance: 8 ohms (indirect/bypass 8 Ohm setting)
  • Full-Range Driver: 76 mm (3") with polypropylene cone, butyl rubber surround, Kapton™ voice coil former, high temperature voice coil, aluminum coupling ring for low distortion and HF extension
  • Input Connectors: Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
  • Connector Wiring: Pin 1 =+ In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
  • Strain Reliefs: Strain relief for two cables or two flex conduits via coupled clamping mechanism
  • Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
  • Safety Agency: UL1480, UL2043,NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
  • Dimensions:  196 mm diameter x 138mm depth from back of baffle (7.7" diameter x 5.4" depth)
  • Ceiling Cutout Size: Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
  • Ceiling Thickness Range: Up to 35mm (1.4 in) with stock dog-ears. MTC-TCD thick ceiling dog-ears available for up to 55 mm (2.2") ceiling thicknesses.
  • Safety Seismic Attachment: One point, top surface
  • Net Weight: 1.6 kg (3.5 lbs, one speaker)
  • Shipping Weight: 6.7 kg (14.7 lbs, pair in master carton)
  • Included Accessories: C-ring support backingplate, 2 tile support rails (for 2 ft or 600 mm tile spans;optional MTC-48TR extension available for larger 4 ft or 1200 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille.
