6.5" 2-Way Full-Range 60 Watt Pendant Loudspeaker in Black

OUR PART #:  CP6-B

The Community CP6-B Commercial Design series black pendant speaker provides high quality paging and musical performance.
Learn More
Our Price: $282.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Community CP6-B
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Community CP6-B Commercial Design series black pendant speaker provides high quality paging and musical performance. It is designed for open architecture spaces or any location where a stylish pendant form factor is desired. Uniform voicing throughout the Commercial Design Series means that the CP6-B can be combined with other members of the Commercial Design Series without compromising consistency from zone to zone. Community’s proprietary Tru-Phase™ waveguide produces a consistently wide conical polar response up to 16 kHz. The genuine coaxial design uses separate magnets for the LF and HF drivers for reduced distortion and industry leading sensitivity, thereby permitting up to 3 dB greater output level while requiring up to half the amplification power of competing products. An easy-access selector switch is conveniently located on the face of the loudspeaker for selectable 8 Ohm or 70V/100V operation, while an integrated rear cover hides all wiring and hanging hardware for an aesthetically pleasing installation.

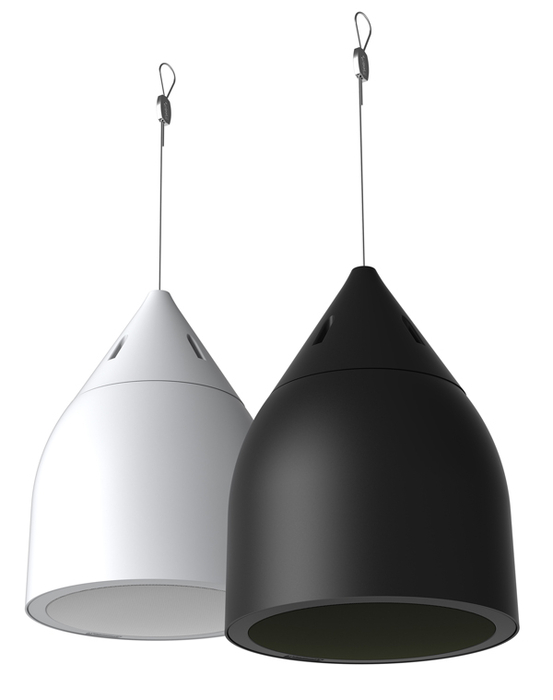

NOTE:  Image shown above is for illustrative puposes only; only one speaker in Black is included per purchase. For more information on this and other products, contact your Sales Representative.

Community CP6-B Features:

  • Stylish, contoured contemporary pendant design
  • High intelligibility with exceptional uniformcoverage
  • Same components and voicing as the Commercial Designceiling and surface mount loudspeaker family
  • Consistent, wide dispersion up to 16 kHz
  • True coaxial loudspeakers with HF compression drivers
  • Tru-Phase™ high-frequency waveguide
  • Paintable enclosure constructed of high-impact ABSplastic to reduce resonances
  • External loop-through Euroblock connectors
  • Integrated rear cover hiding all wires and hanginghardware
  • Face-mounted adjustable tap position selector switch
  • Selectable 8 ohm or 70V/100V operation
  • ETL listed to comply with UL1480

Community CP6-B Specifications:

  • Loudspeaker Type:  Two-way, full-range, coaxialpendant mount loudspeaker, 8 Ohm or 70V/100V operation
  • Operating Range:  70 Hz - 13.5 kHz (-10 dB)
  • Frequency Response:  100 Hz - 12.5 kHz (-3 dB)
  • Max Input Ratings (8 Ohm):  60W continuous, 150Wprogram, 21.9 volts RMS, 43.8 volts momentary peak
  • Transformer Taps:
    • 70V:  30W, 15W, 7.5W, 3.75W and 8 Ohm selectable
    • 100V:  30W, 15W, 7.5W, and 8 Ohm selectable
  • Distortion:
    • 500 Hz, 10% Full Power:  0.33% 2nd Harmonic, 0.55% 3rd Harmonic
    • 500 Hz, 1% Full Power:  0.25% 2nd Harmonic, 0.06% 3rd Harmonic
    • 2 kHz, 10% Full Power:  1.11% 2nd Harmonic, 0.80% 3rd Harmonic
    • 2 kHz, 1% Full Power:  0.67% 2nd Harmonic, 0.23% 3rd Harmonic
    • 8 kHz, 10% Full Power:  2.49% 2nd Harmonic, 0.21% 3rd Harmonic
    • 8 kHz, 1% Full Power:  0.30% 2nd Harmonic, 0.06% 3rdHarmonic
  • Sensitivity (1W/1m):  91 dB SPL (100 Hz to 12.5kHz 1/3 octave bands); 91 dB SPL (250 Hz to 4 kHz speech range)
  • Maximum Output:
    • 8 Ohms:  109 dB SPL / 115 dB SPL (peak)
    • 70V:  106 dB SPL / 112 dB SPL (peak)
    • 100V:  106 dB SPL / 112 dB SPL (peak)
  • Nominal Impedance:  8 Ohms
  • Minimum Impedance:  7 Ohms @ 10 kHz
  • Nominal Coverage:  120º conical (1 kHz to 6 kHz+/- 65°); 120° conical (500 Hz to 6 kHz +/- 65°)
  • Axial Q / DI:  5.04 / 7.03, 500 Hz to 6 kHz
  • Crossover Frequency:  2 kHz
  • Recommended Signal Processing:  90 Hz, at 24dB/Oct high pass filter
  • Drivers:  LF 1x 6.5" cone, HF 1x 3/4" exitcompression driver
  • Driver Protection:  Self-resetting solid statecircuit breaker
  • Input Connection:  Two 2-pole Euroblockconnectors
  • Controls:  Front-face wattage / low impedanceselector switch
  • Enclosure:  UL 94V-0 rated ABS plastic, mattefinish, paintable
  • Finish:  Black
  • Mounting/Rigging Provisions:  Two PHK-15 pendanthang kits (one for main suspension and one as a safety cable), each including15ft (4.5m) long 2mm (0.77") high tensile galvanized steel wire ropesuspension cables with integrated spring clips for attaching the cable to theloudspeaker bracket and Gripple® brand adjustable height cable fasteners.
  • Grille:  Powder coated steel with safety line,black finish, paintable
  • Baffle:  Reflex loaded UL 94V-0 rated ABS
  • Safety Features:  Included safety cable. Eachcable has an SWL of 99 lbs (45 kg).
  • Safety Agency Ratings:  ETL listed to complywith UL1480 and CSA60065. Suspension system and Gripple® brand cable fastenerlisted per UL1598 and UL2239, TUV and CSA Class 3426-01 and Class 3426-81.
  • Required Accessories:  Electronic high passfilter
  • Supplied Accessories:  Two PHK-15 pendant hangkits, Enclosure ABS plastic rear cover, Rear cover ingress weather plug
  • Optional Accessories:
    • PHK-30 30ft (9.1m) pendant hang kit
    • PHK-50 50ft (15.2m) pendant hang kit
    • PSC replacement Gripple™ speed clamp
    • PST-14 trimmable 14ft (4.3m) decorative split loom tubing
  • Dimensions:
    • Height:  13.629" (346.2 mm) enclosure
    • Diameter:  10.0" (254 mm) face
  • Weight:  8.1 lbs (3.7 kg)
