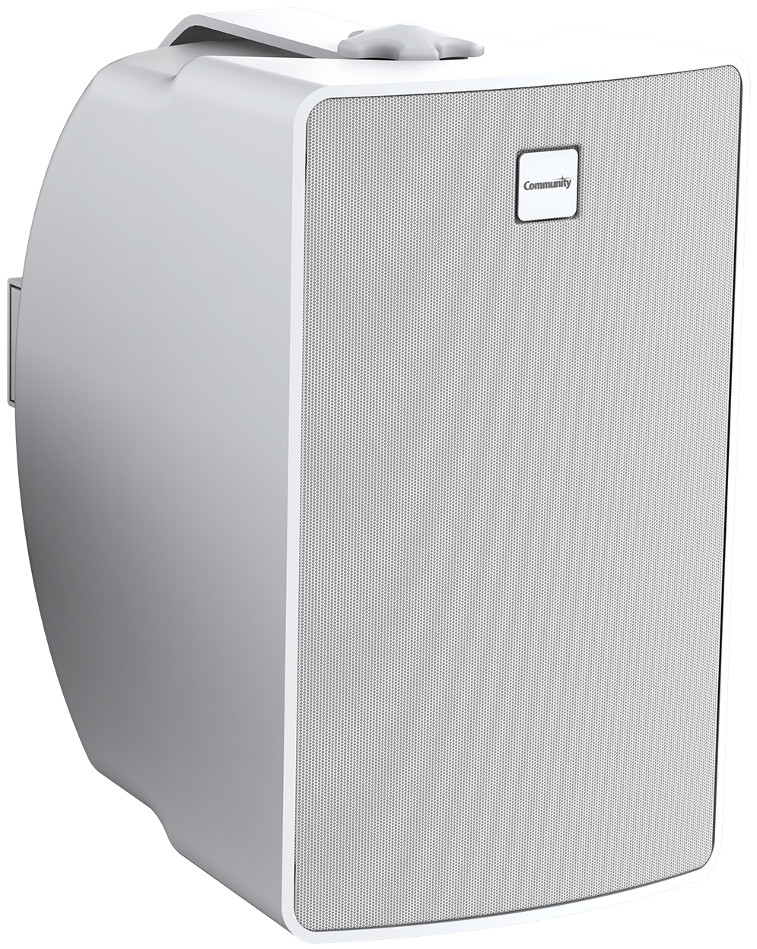

Community CS6-W
Commercial Design 6.5" 2-Way Surface Mount Loudspeaker in White


The Community CS6-W Commercial Design Series black surface mount speaker is a full-range, compact, two-way system, ideal for installations where space is a premium.
Learn More
Our Price: $188.00
Write the first review.

This product must be purchased in multiples of 2

Community CS6-W
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Community CS6-W Commercial Design Series black surface mount speaker is a full-range, compact, two-way system, ideal for installations where space is a premium. Easily outperforming loudspeakers of a larger size format, the CS6-W provides high power handling, high sensitivity and realistic sound reproduction. With a clean and simple architectural appearance that aesthetically merges well in most environments, combined with weather-resistant capability suitable for outdoor use, the CS6-W can be used in a wide variety of speech and music applications. It is equipped with a built-in autoformer, allowing large numbers of distributed loudspeakers to be powered from a 70V or 100V amplifier output. A convenient frontaccessible power tap switch is hidden behind a rotatable logo. Installation is simple and flexible using the included multi-angle pan-and-tilt wall mounting yoke which allows low profile mounting and precise positioning of the enclosure in either horizontal or vertical mounting orientation.

Community CS6-W Features:

  • Clean and simple architectural design
  • Same components and voicing as the Commercial Design ceiling loudspeaker family
  • High efficiency, high output, high intelligibility, low distortion
  • Paintable enclosure constructed of high-impact ABS plastic to reduce resonances
  • Front-accessible power tap switch for selectable 8 Ohm or 70V/100V operation
  • Low profile pan-tilt mounting yoke included
  • Horizontal or vertical mounting orientation
  • Weather-resistant construction with treated drivers, two-layer powder coated grilles and protected wiring ingress

Community CS6-W Specifications:

  • Loudspeaker Type:  Two-way, full-range, coaxial surface mount loudspeaker, 8 ohm or 70V/100V operation
  • Operating Range:  65 Hz - 13.5 kHz (-10 dB)
  • Frequency Response:  90 Hz - 12.5 kHz (-3 dB)
  • Max Input Ratings (8 Ohm):  60W continuous, 150W program, 22 volts RMS, 43.8 volts momentary peak
  • Transformer Taps:
    • 70V:  30W, 15W, 7.5W, 3.75W and 8 Ohm selectable
    • 100V:  30W, 15W, 7.5W, and 8 Ohm selectable
  • Sensitivity (1W/1m):  90 dB SPL (90 Hz to 12.5kHz 1/3 octave bands); 91 dB SPL (250 Hz to 4 kHz speech range)
  • Maximum Output:  108 dB SPL / 114 dB SPL (peak 8 Ohm)
  • Nominal Impedance:  8 Ohms
  • Minimum Impedance:  6.4 Ohms @ 10 kHz
  • Nominal Coverage:  120º conical (+60° / -60°, 1 kHz to 6 kHz)
  • Axial Q / DI:  4.8 / 6.8, 500 Hz to 6 kHz
  • Crossover Frequency:  2 kHz
  • Recommended Signal Processing:  70 Hz, 24 dB/Oct high pass filter
  • Drivers: LF 1x 6.5" cone, HF 1x 3/4" exit compression driver
  • Driver Protection:  Self-resetting solid state circuit breaker
  • Input Connection:  4-pole Euroblock connector with two pair of non-interrupt parallel connections
  • Controls:  Front-accessible wattage / low impedance selector switch hidden behind the rotatable logo
  • Enclosure:  ABS plastic, matte finish, paintable
  • Finish:  White
  • Mounting/Rigging Provisions:  Low profile, multi-angle, pan-tilt mounting yoke
  • Grille: Dual-layer powder coated steel, white finish
  • Safety Features:  Built-in safety cable attachment eyebolt
  • Environmental:  IP55 rated loudspeakers, IP56 rated connector cover, designed to Mil Spec 810
  • Required Accessories:  Electronic high pass filter
  • Supplied Accessories:  Low profile, pan-tilt mounting yoke; flat-head screwdriver
  • Optional Accessories:  M8 x 15.5mm Blind Insert for 3rd party accessory attachment
  • Dimensions:
    • Height:  6.96 inches (177 mm)
    • Width:  11.8 inches (300 mm)
    • Depth:  10.7 inches (272 mm)
  • Weight (without bracket):  7.1 lbs (3.2 kg)
  • Weight (with bracket):  9 lbs (4.1 kg)
