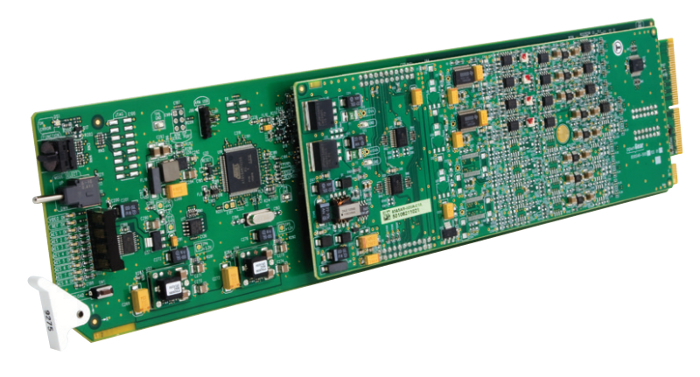

Cobalt 9275-4C
HD/SD-SDI 4 Channel Audio De-Embedder with Analog Audio

OUR PART #:  CB-9275-4C

The 9275-4C from Cobalt provides up to four de-embedded balanced analog output channels.
Learn More
Our Price: $2,503.62
List Price: $2,580.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Cobalt 9275-4C
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The 9275-4C from Cobalt provides up to four de-embedded balanced analog output channels. The card offers full 24-bit audio D-to-A, processing/routing control (card edge and remote control) for individual channel gain with ganging, delay (up to 1 second), phase invert, as well as channel summing. User presets allow fast and easy recall of custom settings.

Features:

  • Conforms to SMPTE 259M and SMPTE 292M
  • Automatic rate detection for all popular data rates
  • LED indicators for input signal presence and input data rate
  • Audio channel mapping, phase inversion, and level control
  • Programmable video output on SDI input loss
  • Silence output on loss of audio input
  • Programmable silence detection and timeout thresholds
  • Remote control/monitoring via DashBoard software or OGCP-9000 remotecontrol panel

Specifications:

Electrical

  • Power (4-Ch): 8 watts

HD/SD-SDI Output

  • Number of Outputs: 1 processed

HD/SD-SDI Input

  • Number of Inputs: 1
  • Standard: SMPTE 292 and 259M-C
  • Return Loss: >15 dB at 1.5 GHz

Analog Audio Output

  • Number of Outputs: 1 processed
  • Analog Audio Outputs: 4-Ch balanced outputs
  • Maximum Output Level: +27 dBu
  • Frequency Response: ┬▒0.07 dB (22 Hz to 20 kHz @ Fs=48 kHz)
  • Signal to Noise Ratio: -90 dB
  • THD: > -76 dB
  • Crosstalk: <-80 dB (20 Hz to 20 kHz)
