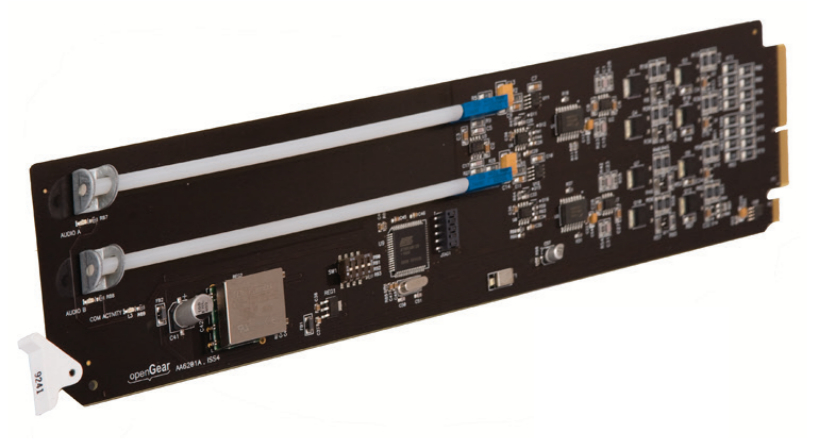

Cobalt 9241
1 X 8 Mono / 1 X 4 Stereo Analog Audio Distribution Amplifier with Summing Control

OUR PART #:  CB-9241

The 9241 from Cobalt is an analog audio distribution amplifier with up to eight low-impedance outputs designed for broadcast use.
Learn More
Our Price: $391.11
List Price: $421.00
You save 7%!
Write the first review.
Cobalt 9241
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The 9241 from Cobalt is an analog audio distribution amplifier with up to eight low-impedance outputs designed for broadcast use.  It can be used as either a mono or two-channel (stereo) audio DA. The 9241 can provide eight copies of a single (mono) input signal or four copies each of a two (stereo) inputs. The 9241 can also sum two channels for creating a mono mix. It can also detect dead-air silence and set an alarm when no audio is present.

Features:

  • Handles mono or stereo signals
  • Has summing capability
  • Silence detection
  • Remote control/monitoring via Dashboard ™ software or OGCP-9000 remotecontrol panels

Specifications:

Electrical

  • Power: 3 watts

Performance

  • Freq. Response: >0.1 dB at 20 Hz to 20 kHz
  • Gain: -14 dB to +18 dB cont. variable
  • Harmonic Dist: <0.01%
  • SNR: > 95 dBu

Analog Audio Input

  • Number of inputs: 2 balanced
  • Impedance: >20 k ohm balanced
  • Max Level: +27.5 dBu
  • Common Mode Rejection: >80 dB, 20 Hz to 20 kHz

Analog Audio Output

  • Number of Outputs: 8
  • Impedance: 60 ohm balanced
  • Max Level: +26 dBu
