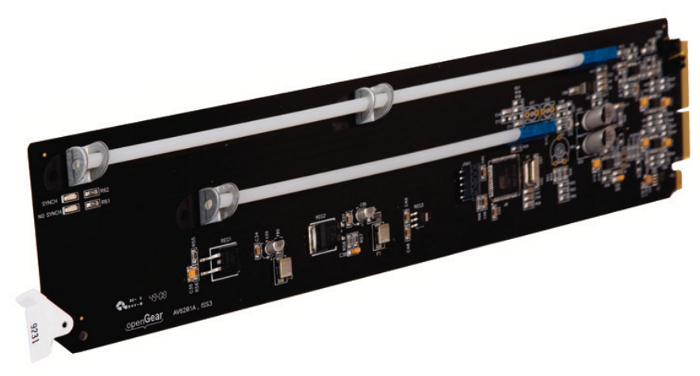

Cobalt 9231
1 x 8 Analog Video Distribution Amplifier

OUR PART #:  CB-9231

The 9231 from Cobalt is an analog video distribution amplifier with a differential input designed for broadcast use.
Learn More
Our Price: $347.71
List Price: $350.90
Write the first review.
Cobalt 9231
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The 9231 from Cobalt is an analog video distribution amplifier with a differential input designed for broadcast use.  The card provides 1x8 distribution with one differential analog input and eight 75-ohm BNC analog outputs.  The 9231 can be accessed through DashBoard™ for status monitoring.

Features:

  • Differential composite analog input with 75ohm orHi-Z looping input selection
  • User adjustable gain
  • Variable cable EQ up to 984 ft (300m)
  • User-selectable input clamping
  • Remote monitoring via DashBoard™ software or OGCP-9000 remote controlpanel

Specifications:

Electrical

  • Power: 2 watts

Performance

  • Freq. Response: >0.05 dB at 3.58 MHz
  • Differential Gain: >0.15% at 3.58 MHz
  • Differential Phase: >0.15° at 3.58 MHz
  • SN: >60 dB, 5 MHz BW

Analog Audio Input

  • Number of inputs: 1
  • Impedance: 75ohm
  • Level: 1 Vp-p, nominal
  • Return Loss: 46 dB at 3.58 MHz

Analog Video Output

  • Number of Outputs: 8
  • Impedance: 75ohm
  • Level: 1 Vp-p, nominal
