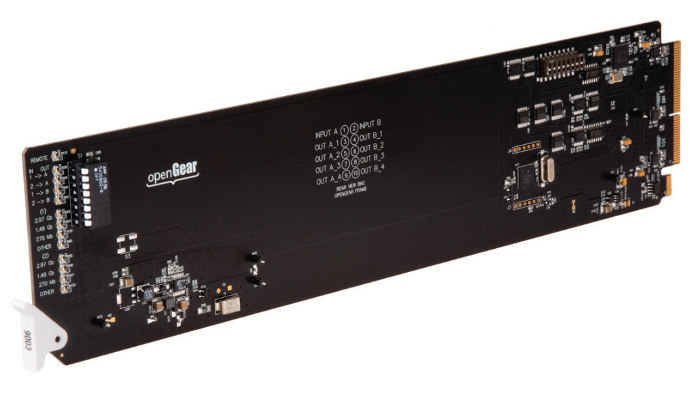

Cobalt 9003
Dual 3G/HD/SD Reclocking Distribution Amplifier

OUR PART #:  CB-9003

The 9003 from Cobalt is a two-channel, multi-rate SDI distribution amplifier capable of equalizing and reclocking 3G, HD, and SD signals.
Learn More
Our Price: $655.32
List Price: $699.00
You save 6%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Cobalt 9003
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The 9003 from Cobalt is a two-channel, multi-rate SDI distribution amplifier capable of equalizing and reclocking 3G, HD, and SD signals.  The 9003 can be set up as either a single-channel 1:8, dual-channel 1:4, or 1:8 with failsafe using DashBoard™ remote control software or card-edge switches. In failsafe mode, the card automatically switches to the secondary input if the primary input is lost.

Features:

  • Dual or single input with user-configurablemodes
  • Equalize up to 160m of Belden 1694A cable at 1.485Gbit
  • Failsafe mode automatically switches to secondaryinput on primary input loss
  • Automatic rate detection/display for all popular datarates
  • Remote monitoring via DashBoard™ software or OGCP-9000 remote control panel

Specifications:

Electrical

  • Power: 3 watts

Cable Length Equalized (w/Belden 1694A)

  • 3 Gbps: 100m
  • 1.485 Gbps: 160m
  • 143-360 Mbps: 350m

3G/HD/SD-SDI Inputs

  • Number of Inputs: 2
  • Standard: SMPTE 424M, 292M, and 259M
  • Return Loss:
      -  >15 dB at 5 MHz - 1.485 GHz
     -  >10 dB at 1.5 GHz to 3 GHz

3G/HD/SD-SDI Output

  • Number of outputs: 8 (4 ASI Compatible)
  • Standard: SMPTE 424M, 292M, and 259M
  • Signal Level: 800 mV nominal
  • Return Loss:
      -  >15 dB at 5 MHz - 1.485 GHz
      -  >10dB at 1.5 GHz to 3 GHz
  • Jitter (wideband): HD: < 0.2 UI
