JBL CSMA 2120 8-Input Commercial Mixer-Amplifier with DriveCore, 70V/100V

OUR PART #: CSMA-2120 MFR #: NCSMA2120-U-US

Copied to clipboard

The JBL® CSMA series 2120 mixer/amplifier is a professional tool with a sleek, industrial look that is designed and built for commercial sound applications. ...Read more

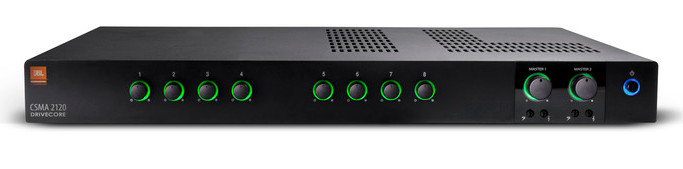

JBL CSMA 2120 8-Input Commercial Mixer-Amplifier With DriveCore, 70V/100V Image 1
JBL CSMA 2120 8-Input Commercial Mixer-Amplifier With DriveCore, 70V/100V Image 2
JBL CSMA 2120 8-Input Commercial Mixer-Amplifier With DriveCore, 70V/100V
Our Price: $901.00
List Price: $1,361.18
You save 34%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$26/mo* with 36 month financing. ‡
Limited Time. Learn How
More on Order! Item usually available to ship in 5-9 Business days. Place your order now to reserve your place in line. Call our Sales Pros at 800-356-5844.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The JBL® CSMA series 2120 mixer/amplifier is a professional tool with a sleek, industrial look that is designed and built for commercial sound applications. Utilizing Crown’s DriveCore technology enables significantly reduced size and weight. It’s highly efficient, fanless and just 1U rack space high. The CSMA 2120 mixer/amp offers unmatched ease of use, with a clean front panel featuring only volume controls for each of its four channels, master volume adjustment, adjustable bass and treble controls and a power switch. All the volume controls are surrounded by an illuminated ring, making them easy to see and operate in darkened environments. The CSMA 1120’s amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. Also features a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.

Features

  • 8 inputs with two 120W output channels
  • Ideal for commercial and industrial use
  • Fanless, space-saving 1U design
  • Sleek industrial look with illuminated rings, making them easy to see and operate
  • Euro-block type mic/line input connectors and output connectors
  • Independent Bass and Treble controls for each output channel
  • Supports 70V and 100V distributed audio systems without the need for a separate transformer
  • Remote volume control capability using JBL CSR-V module and standard Ethernet cable
  • Priority muting
  • Configurable output routing
  • Utilizes Crown’s DriveCoreTM technology providing excellent audio performance with high efficiency
  • Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process
  • Includes rack mounting kit
  • Energy Star® Certified

Specifications

  • Output: 120W @ 4/8 Ohms (1 kHz Power,THD+N
  • Frequency Response: +/- 1dB (@1W into 4- or 8-ohms)
  • Load Impedance: Stable from 2- to 16-ohms
  • Sensitivity: 1.4 Vrms
  • Signal to Noise Ratio: Weighted
  • Input Impedance: Balanced 20 KOhms/Unbalanced 10 KOhms
  • Max Input: +20 dBu Typical
  • Dimensions: 8.2" x 1.7" x 7" (209 x 44 x178mm)
  • Shipping Weight: 2.9 lbs (1.3 kg)
