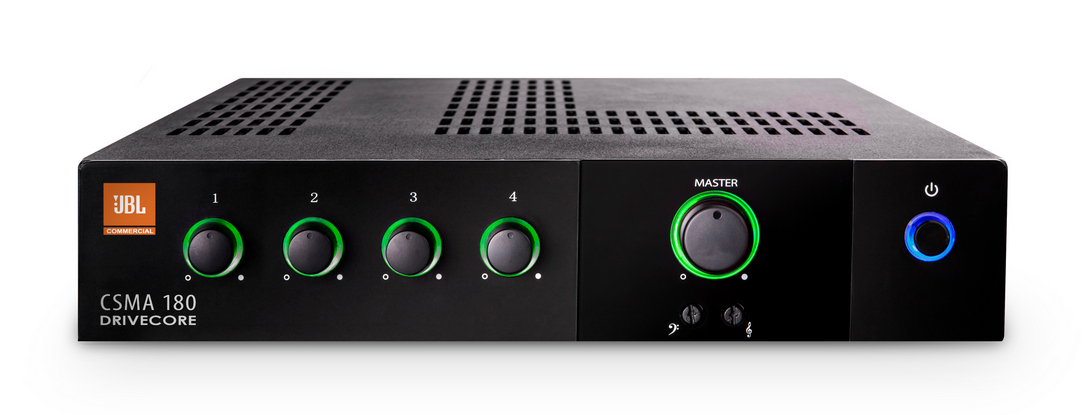

JBL CSMA-180
80-Watt 4x1 Mixer/Amplifier

OUR PART #:  CSMA-180

The JBL® CSMA series of Mixer-Amplifiers are a professional tool with a sleek industrial look that is designed and built for commercial sound applications.
Learn More
Our Price: $449.00
List Price: $561.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL CSMA-180
Qty:
In Stock

Similar Products

The JBL® CSMA series of Mixer-Amplifiers are a professional tool with a sleek industrial look that is designed and built for commercial sound applications. Utilizing Crown’s DriveCore technology enables significantly reduced size and weight – all mixer/amps are highly efficient, fanless and just 1U rack space high. There are both single channel and two channel models with four or eight mixer channels, respectively.

NOTE: The image shown is for illustrative purposes only. Actual product is the CSMA-80.

The CSMA mixer/amps offer unmatched ease of use, with a clean front panel featuring only volume controls for each channel, master volume adjustment, adjustable bass and treble controls and a power switch. All the volume controls are surrounded by an illuminated ring, making them easy to see and operate in darkened environments. The amplifier can drive 8 ohm and 4 ohm loads and can be used with 70V and 100V distributed audio systems without the need for a separate transformer. In addition to balanced mic/line inputs, unbalanced RCA inputs and speaker connections, all units include RJ45 connectors for use with JBL CSR-V in-wall volume controls. All models feature a universal power supply which enables the ability to accept AC voltages from 100 to 240 VAC, 50/60Hz.

JBL Commercial mixer/amps are manufactured under HARMAN’s GreenEdge™ environmental initiative, conforming to lead-free RoHS standards and utilizing recycled copper, aluminum and steel, an energy-saving powder coat finishing process and other environmentally-conscious manufacturing processes. Their highly efficient DriveCore design reduces power consumption and yields much more efficient operation – up to 80 percent more efficient than previous designs.

JBL CSMA-180 Features:

  • 4 inputs with 1 output of 120-watts of power
  • Ideal for commercial and industrial use
  • Fanless, space-saving 1U design
  • Sleek industrial look with illuminated rings, making them easy to see and operate
  • Euro-block type mic/line input connectors and output connectors
  • Independent Bass and Treble controls for each output channel
  • Supports 70V and 100V distributed audio systems without the need for a separate transformer
  • Remote volume control capability using JBL CSR-Vmodule and standard Ethernet cable
  • Priority muting
  • Configurable output routing
  • Utilizes Crown’s DriveCoreTM technology providing excellent audio performance with high efficiency
  • Manufactured to lead-free ROHS standards, utilizing recycled metals, and using an energy-saving powder coat process
  • Includes rack mounting kit

JBL CSMA-180 Specifications:

  • Output: 120W @ 4/8 Ohms (1kHz Power,THD+N<0.5%
  • Frequency Response: +/- 1dB (@1W into 4 or 8Ohms)
  • Load Impedance: Stable from 2 - 16 Ohms
  • Sensitivity: 1.4Vrms
  • Signal to Noise Ratio: Greater than 100 dB -1kHz, A-weighted
  • Input Impedance: Balanced 20K Ohms/Unbalanced 10K Ohms
  • Max Input: +20dBu Typical
  • Dimensions: 8.2" x 1.7" x 7" (209 mm x 44 mm x178 mm)
  • Shipping Weight: 2.9 Lbs (1.3 Kg)
  • Included Accessories: Rack mounting kit
