Beyerdynamic GM 314 S
Cardioid Condenser Gooseneck Microphone with 3-pin XLR

OUR PART #:

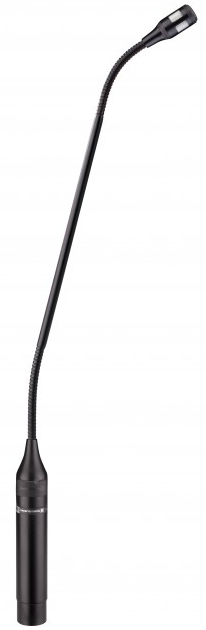

The Beyerdynamic GM 314S is a cardioid condenser gooseneck microphohe in black, with a length of 16" (400 mm), an LED ring, switch and 3-pin male XLR connector.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

The Beyerdynamic GM 314S is a cardioid condenser gooseneck microphohe in black, with a length of 16" (400 mm), an LED ring, switch and 3-pin male XLR connector.

The gooseneck microphones of the Classis series, with an extremely small microphone head, meet the requirements of elegant and efficient design. The thin 6mm gooseneck with a mat black, non-glare surface can be discretely integrated into any installation. The improved cardioid polar pattern of these microphones ensures maximum volume, due to high gain before feedback and excellent speech intelligibility. This versatile series can be used in many kinds of applications; lecturns, conference systems, in studio and sound systems for mixing consoles and as a stationary microphone in paging systems.

Beyerdynamic GM 314 S Features:

  • RFI-proof due to Scudio™ technology
  • High sensitivity
  • Excellent high gain before feedback
  • Unobtrusive due to small dimensions
  • Non-glare surface
  • With LED ring
  • S version with switch and power on LED
  • Phantom power 48 volts (versions with switch)

Beyerdynamic GM 314 S Specifications:

  • Transducer Type:  Electret condenser
  • Operating Principle:  Pressure gradient
  • Polar pattern:  Cardioid
  • Frequency response:  50 Hz - 19 kHz
  • Open circuit voltage:  17 mV/Pa
  • Nominal impedance:  < 200 Ohms
  • Load impedance:  = 1 kOhm
  • Signal to noise ratio / noise voltage:  69 dB [A] / 6.0 µV [A]
  • Max. SPL:  107 dB [SPL @ 1% THD]
  • Equivalent SPL:  25 dB [A]
  • Wiring GM 31x S:  3-pin male XLR
  • Supply voltage GM 31x S:  Phantom power 48 V
  • Current consumption GM 31x S:  9 mA
  • Current consumption LED ring with internal series resistor of 500 Ohms
    • 5 V supply voltage:  6 mA
    • 12 V supply voltage:  20 mA
  • Dimensions:
    • Length:  16"
    • Head diameter:  0.5" (13.6 mm)
    • Gooseneck diameter:  0.2" (6 mm)
    • Shaft diameter:  0.8" (20 mm)
