Lightronics AF3107 Unity 6 Scene and Master Fader Station

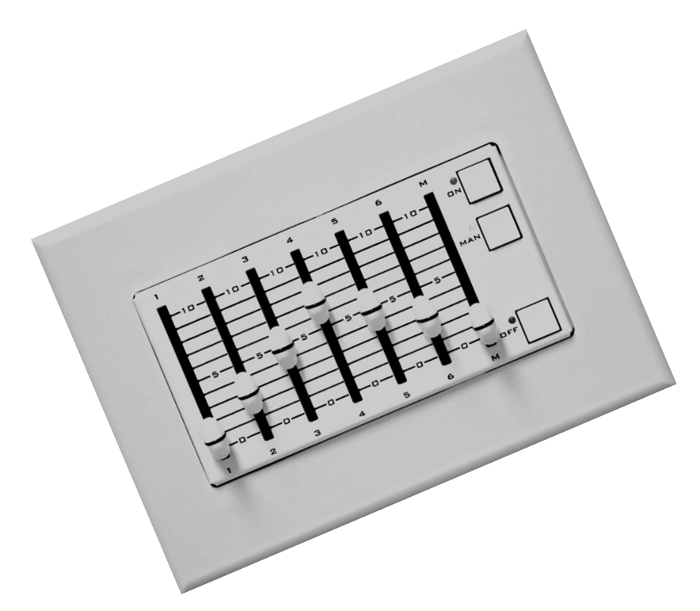

The AF-3107 is a 6 scene, wall mount remote control unit intended for use with the Lightronics AR-1202 Architectural dimmer. The unit fits in a standard three gang wall switch box. All power and data connections are via a 4 wire communication bus between itself and the AR-1202 dimmer.

The unit provides manual fader control of 6 scenes. A 7th fader is provided as a master control for all six scenes. Pushbutton switches are provided to activate a blackout and all full on selection. LED indicators provide status feedback. Multiple units may be chained together to provide dimmer control from various locations. The AF-3107 may also be used with other Lightronics architectural remote stations. Availabe in white or ivory.

Lightronics AF-3107 Light Remote Station Specifications:

• Style: Fader
• Scenes: 6
• Functions: 6 Scenes and Master
• Controls: 7 Faders+ On, Off
• Indicators: On, Off and Manual
• Color: White or Ivory
• Addressability: 3 Scene Blocks
• Protocol: Lightronics Architectural Network(bidirectional RS-485)
• Connections: Low capacitance, shielded, two twistedpair data cable
• Wall Box Size: 3 gang
• Weight (boxed): 1 lb
