Wireless Intercom Beltpack


The Outerloop™ functions as a wireless link to your intercom system.
Learn More
Selected Model Price: $399.00
List Price: $420.00
Save up to 5%!
Write the first review.
Select a Model: (shipping times are approximate)

Related Products

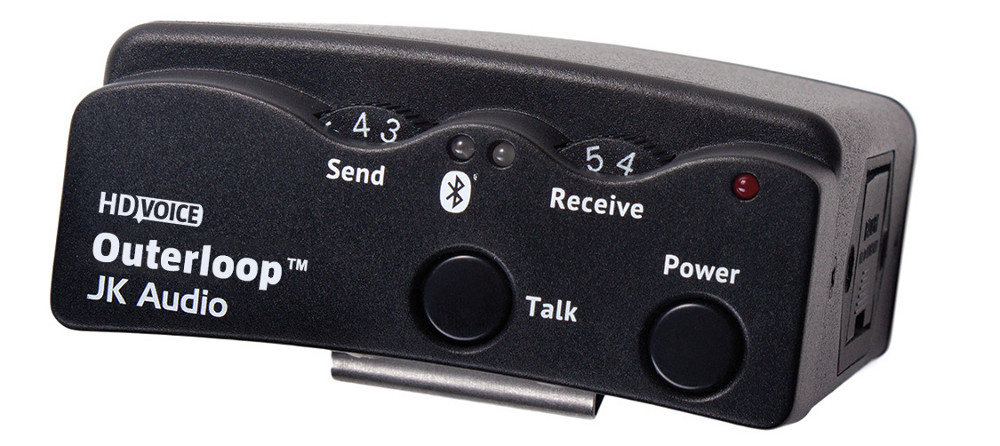

The Outerloop™ functions as a wireless link to your intercom system. This universal belt pack provides connections for your existing 4-pin or 5-pin intercom headset, routing audio through your mobile device over a Bluetooth wireless connection. Use your cell phone to call into your intercom phone bridge or station phone coupler for a global wireless link.

Universality. Adapting to the mixed-up intercom world, model OTL-F features both 4-pin and 5-pin Female XLR headset jacks, while model OTL-M features both 4-pin and 5-pin Male XLR headset jacks. Easy-to-use send and receive level controls, a push-on, push-off Talk button, as well as a recessed sidetone level control. All the comforts of a standard belt pack whether you are around the corner or around the world.

Outerloop also features a switch that selects between pairing to a phone or to a headset. In Phone mode, Outerloop pairs to your cell phone, notepad, or computer just like any other Bluetooth headset. In Headset mode, you can pair to another Outerloop or to a standard Bluetooth headset, providing a short range secure wireless point-to-point intercom. Outerloop to Outerloop connections default to HD Voice (50 Hz to 7 kHz) bandwidth. Many new Bluetooth wireless cell phones and headsets also provide HD Voice bandwidth.

JK Audio OUTERLOOP Features:

  • HD Voice (Wide-Band Speech)
  • Bluetooth Wireless Technology
  • Uses Standard Intercom Headsets
  • 4-Pin and 5-Pin Male or Female Headset Jacks
  • Send and Receive Volume Controls
  • PTT Button
  • > 10 hours On One 9 Volt Battery Backup

JK Audio OUTERLOOP Specifications:

  • Model Outerloop-F:
    • Headset: 4-pin Female XLR, 5-pin Female XLR
  • Model Outerloop-M:
    • Headset: 4-pin Male XLR, 5-pin Male XLR
  • Headset Microphone:
    • Impedance: 50-200 ohms
  • Headset Earpiece:
    • Load Impedance: 50-600 ohms
    • Power: >50 mW into 150 ohms
  • Bluetooth Wireless Technology:
    • Standard: Bluetooth 3.0
    • Profile: Hands Free (HF)
    • Distance: 40 feet ( 12 meters )
  • Frequency Response:
    • 300 Hz - 3.4 kHz
    • 50 Hz - 7 kHz with HD Voice
  • Power: 9 VDC Battery
  • Size: 4.7" x 3.75" x 1.65"
  • Weight: 10 ounces

To be the first to review this item, click here.

Add to Cart

We're sorry, only of this item available

Call a Sales Pro at 800-356-5844 for more information
