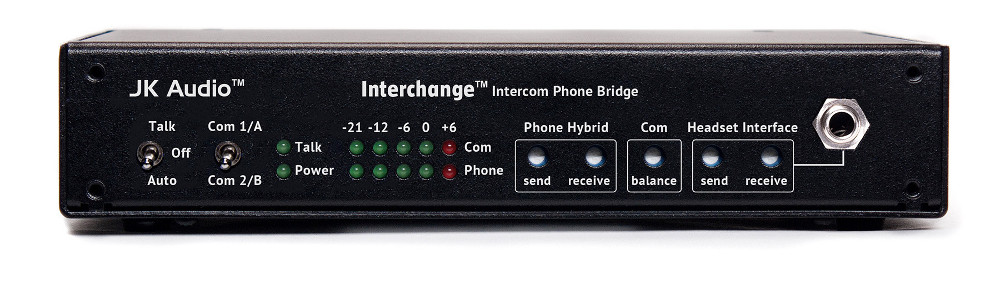

JK Audio Interchange
Intercom Phone Bridge

OUR PART #:  INTCHG

The Interchange allows remote access to your partyline intercom through JK Audio Innkeeper Series Digital Hybrids.
Learn More
Our Price: $798.00
List Price: $840.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JK Audio Interchange
Qty:
In Stock

Similar Products

The Interchange allows remote access to your partyline intercom through JK Audio Innkeeper Series Digital Hybrids. This professional half rack interface provides a four wire audio interface and remote control connection for JK Audio innkeeper LTD, innkeeper 1x/1rx, or innkeeper 2 Digital Hybrids for POTS lines. Likewise, couple a JK Audio PBXport with an Interchange for PBX/VoIP lines. The front panel headset interface jack allows easy connection of your cell phone, tablet, or computer allowing remote access through a wireless phone or conferencing app.

Interchange contains a sophisticated intercom hybrid in a low noise pro audio design. The Listen-Always design allows both the phone hybrid / 4-wire connection and the cell phone headset interface to monitor the intercom just like any other belt pack. Listen mode is a high impedance bridging tap on the intercom line. Talk mode is enabled via a front panel switch, either Off, On, or Auto. Auto follows the phone hybrid Auto-Answer mode. Talk mode uses a solid state relay to properly couple Talk audio from the phone line and cell phone interfaces, to the intercom channel.

The Innkeeper 2 conference feature allows two callers to share one intercom connection. Alternatively, the included cables allow Line 1 and Line 2 of the Innkeeper 2 to be connected to two separate Interchange™ units, allowing connection to separate intercom loops.

JK Audio INTCHG Features:

  • Male and Female 3 pin XLR Intercom loop jacks
  • Male and Female 3 pin XLR 4-wire jacks
  • Male XLR Mix Line Out for Monitoring
  • Send and Receive LED metering
  • Front panel screwdriver level controls
  • Front panel Channel Select
  • Front panel cell phone interface
  • Listen always, Talk when Talk-Enabled
  • Intercom and phone hybrid powered

JK Audio INTCHG Specifications:

Intercom Channel

  • Connection: Male & Female 3-pin XLR
  • Output Level: 0 dBu ( 775 mV ) nominal
  • Terminating Impedance: 200 ohms
  • Bridging Impedance: >15k ohms
  • Pin 1: Common
  • Pin 2: Audio + 30 VDC ( +12 VDC min ) 50 mA
  • Pin 3: Audio

Input

  • Balanced Female XLR: 20k ohms / 500 mV RMS (-4 dBu nom) +12 dBu max

Output

  • Balanced Male XLR: 200 ohms / 500 mV RMS (-4 dBu nom)+12 dBu max
  • Size: 7.6” x 5.3” x 1.5” (20 x 14 x 4 cm)
  • Weight: 1.2 lbs (0.5 kg)
