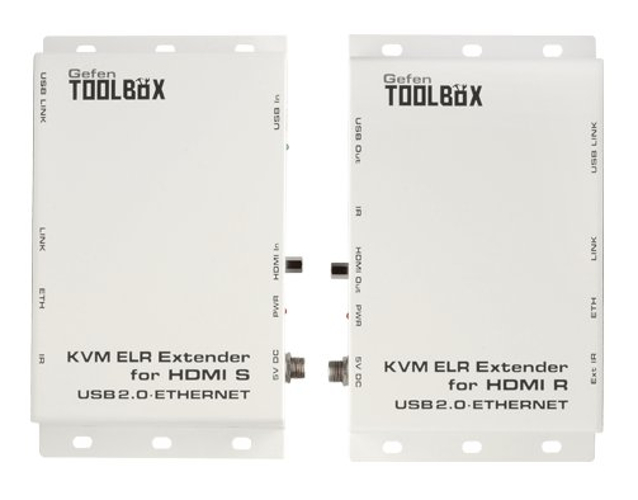

Gefen Inc HDKVM ELR
Extra Long Range KVM Externder for HDMI, USB, Ethernet and IR

OUR PART #:  GTB-HDKVM-ELR

The GefenToolBox HDKVM ELR is designed to extend HDMI, USB 2.0, Ethernet, and IR from a home theater multimedia PC that can be located up to 330 feet (100 meters) away.
Learn More
Our Price: $1,199.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Gefen Inc HDKVM ELR
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The GefenToolBox HDKVM ELR is designed to extend HDMI, USB 2.0, Ethernet, and IR from a home theater multimedia PC that can be located up to 330 feet (100 meters) away. The Receiver unit allows the connection of HDMI and two USB devices, providing access to printers, scanners, cameras, external storage media, digital signage, and automated control systems in addition to the display. This product uses Gefen ELR (Extra Long Range) technology, supporting HDBaseT® specifications, allowing transmission of HDMI and IR signals along the same CAT-5 cable. USB 2.0 is extended over the second CAT-5 cable. The Ethernet ports on both Sender and Receiver units connect to network devices.

Place the HDKVM ELR Sender unit next to the PC source. Use the included HDMI cable to connect the PC source to the Sender unit. Use the supplied USB cable to connect the PC source to the Sender unit. Connect the Receiver unit to the HDTV display with an HDMI cable. Connect the USB devices to the Receiver unit. Use two CAT-5 cables, up to 330 feet (100 meters), to connect the Sender unit to the Receiver unit. Connect an IR Blaster from the Sender unit to the Hi-Def source to control the source from the viewing location. Connect an IR Extender cable from the Receiver unit to the Hi-Def source to extend the IR Control. The IR signals are sent back to the source device. Connect the Ethernet port on both the Sender and Receiver to standard network devices. Connect the included locking power supplies to the Sender and Receiver units, and the power supplies to any available electrical outlets.

Supported HDMI Features:

  • Ultra HD 4K x 2K
  • Resolutions up to 1080P Full HD
  • 12 bit Deep Color
  • LPCM 7.1 Audio, Dolby® TrueHD, and DTS-HD MasterAudio™
  • 3DTV Pass-through
  • CEC Pass-through
  • Lip Sync Pass-through

Gefen Inc. GTB-HDKVM-ELR Features:

  • Extends HDMI and IR up to 330 feet (100 meters) over one CAT-5 cable
  • Extends USB 2.0 up to 330 feet (100 meters)
  • Extends Ethernet up to 330 feet (100 meters)
  • Supports resolutions up to Ultra HD 4K x 2K and 1080pFull HD
  • Supports up to 480 Mbps transfer rate using USB 2.0
  • EDID management with Local and Pass-through modes
  • IR Remote (included)
  • Locking power supplies
  • Wall-mountable

Gefen Inc. GTB-HDKVM-ELR Specifications:

  • Maximum Pixel Clock: 225 MHz
  • Input Video Signal: 1.2V p-p
  • Input DDC Signal: 5V p-p (TTL)
  • HDMI Connector (Sender / Receiver): Type A ,19-pin,female
  • USB Connector (Sender Unit): Type B
  • USB Connectors (Receiver Unit): (2) Type A
  • Link Connectors (Sender / Receiver): (2) RJ-45
  • Ethernet Connector (Sender / Receiver): RJ-45
  • IR Extender (Receiver Unit): 3.5 mm mini stereo jack
  • IR Blaster (Sender Unit): 3.5 mm mini stereo jack
  • Power Supply (Sender / Receiver): 5V DC, Locking
  • Power Consumption: 10W per unit (max.)
  • Operating Temperature: 0° - 40 °C
  • Dimensions (WxDxH): 3.4" x 4.9" x 1.2" (86.4 x124.5 x 30.5 mm)
  • Shipping Weight: 3 lbs (1.4 kg)
